VICS antenna splitter, component description - GF82.62-P-3005GZX
MODEL 164.8 with CODE (498) Japan version up to Model Year 2008
Location

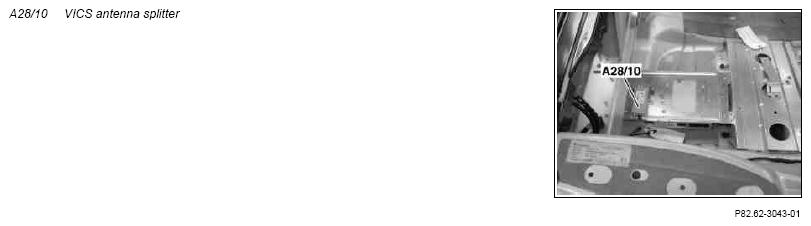

The VICS antenna splitter is fastened in the left rear to the bracket of the audio gateway control unit (N93/1).
Function
The VICS antenna splitter splits the antenna signal (radio) from the roof antenna module (A2/93). The antenna signal is split up into the following parts:
- Radio signals to the audio gateway control unit
- Information from the VICS (Vehicle Information and Communication System) to the COMAND operating, display and control unit (A40/3)
