Terminating/ending call, function - GF82.70-P-2001GZ

MODEL 164, 251 with CODE (813) Voice control system (VCS [SBS]) except CODE (498) Japan version up to Model Year 2008

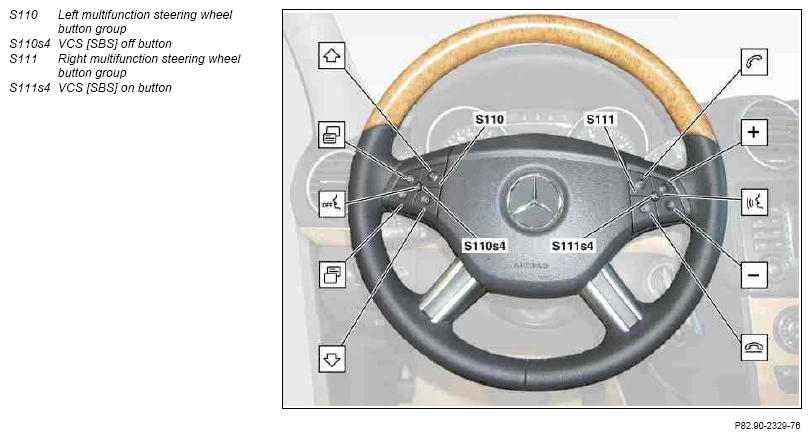

Fig 1: Identifying Terminating/Ending Call Components

Courtesy of MERCEDES-BENZ USA

Abort

If the VCS [SBS] off button is actuated during a phone call, then the speech recognition feature of the voice control system (VCS [SBS]) control unit (N41/3) is deactivated.

If the user is in input mode, then he/she can have the speech recognition system deactivate the VCS [SBS] via the hands-free system microphone group (A67b1) using the voice command "Cancel".

The VCS [SBS] can also be deactivated by pressing any button on the COMAND controller unit.

Terminate phone call

A call is terminated using the accept/terminate phone call button (S111s3) on the multifunction steering wheel and not by operating the VCS [SBS] switch.
