TV rear window amplifier, component description - GF82.62-P-3004GZJ
MODEL 164.1/8 except CODE (494) USA version up to Model Year 2008
Location

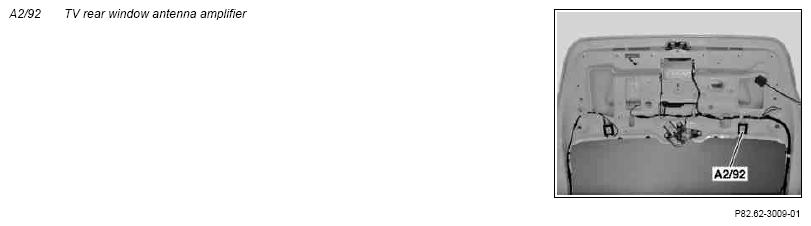

The TV rear window antenna amplifier is installed in the tailgate on the right, beneath the rear window.
Task/function (Japan version, code 498)
The task of the TV rear window antenna amplifier is to filter the TV2 and TV3 signals of the rear window antennas, to amplify them and to supply them to the TV antenna selector (A2/79).
Task/function (rest of world except USA version, code 494)
The task of the TV rear window antenna amplifier is to filter the TV2 and TV3 signals of the rear window antennas, to amplify them and to supply them to the TV combination tuner (analog/digital) (A90/1).
