Speaker system, component description - GF82.62-P-4220RTE

MODEL 251 except CODE (494) USA version except CODE (498) Japan version up to Model Year 2008

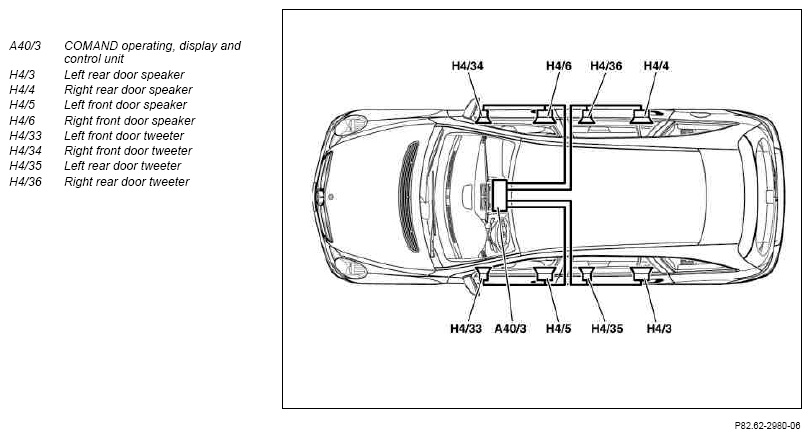

Shown without sound system (code 810)

Fig 1: Identifying Speaker System Component - Shown Without Sound System (Code 810)

Courtesy of MERCEDES-BENZ USA

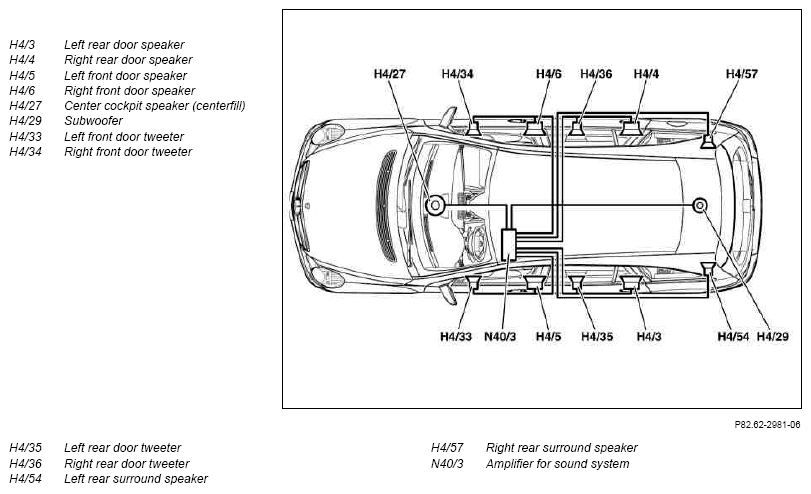

Illustrated with sound system (code 810)

Fig 2: Identifying Speaker System Component - Shown Without Sound System (Code 810)

Courtesy of MERCEDES-BENZ USA
