Speaker system, component description - GF82.62-P-4220GZJ

MODEL 164.1/8, 251 with CODE (498) Japan version up to Model Year 2008

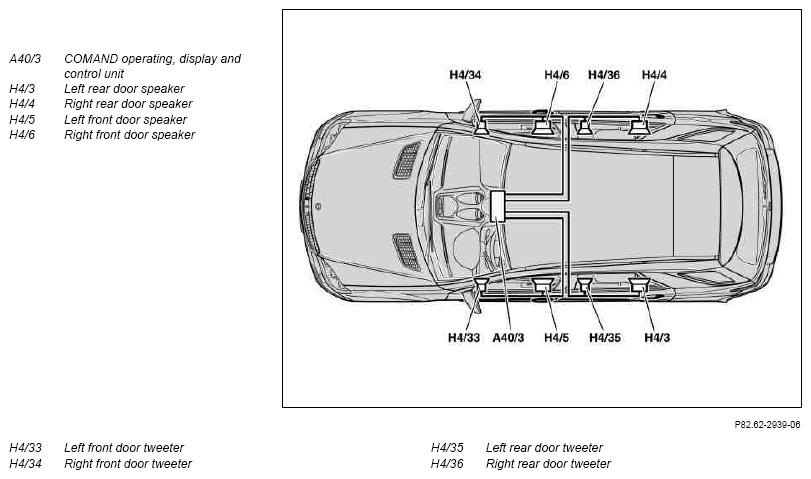

Shown without sound system, code 810, on model 164.1

Fig 1: Identifying Speaker System Component - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

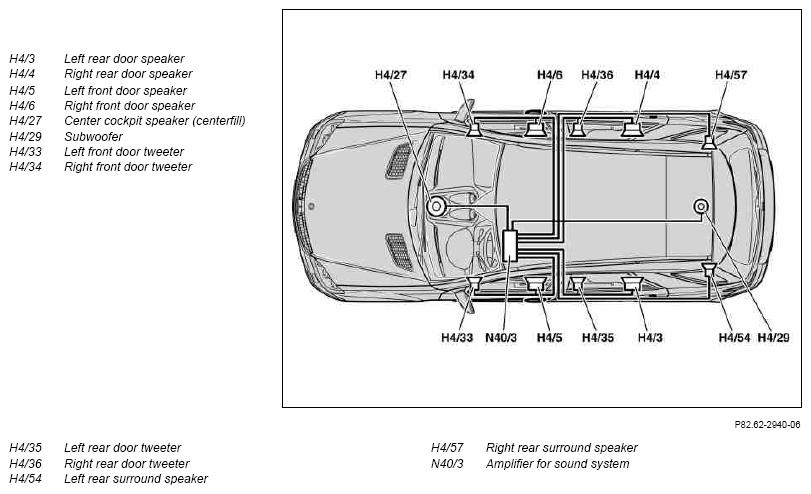

Shown with sound system, code 810, on model 164.1

Fig 2: Identifying Speaker System Component - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

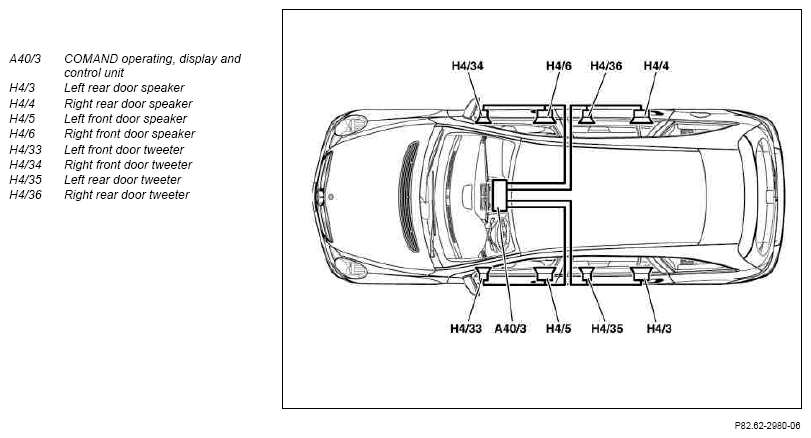

Shown without sound system, code 810, on model 251

Fig 3: Identifying Speaker System Component - Shown On Model 251

Courtesy of MERCEDES-BENZ USA

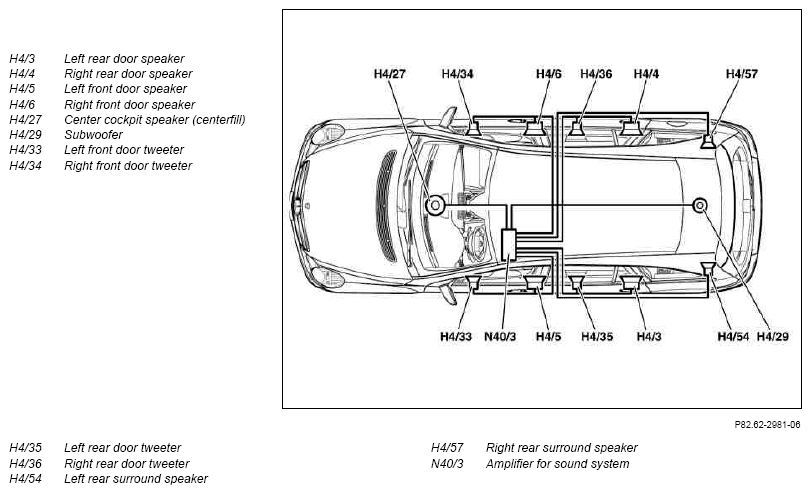

Shown with sound system, code 810, on model 251

Fig 4: Identifying Speaker System Component - Shown On Model 251

Courtesy of MERCEDES-BENZ USA
