Speaker system, component description - GF82.62-P-4220GZE

MODEL 164 except CODE (494) USA version except CODE (498) Japan version with CODE (523) MB Audio 20 radio with CODE (525) MB Audio 50 APS radio with CODE (527) COMAND APS (with navigation) with CODE (810) Sound system up to Model Year 2008

Shown without sound system (code 810)

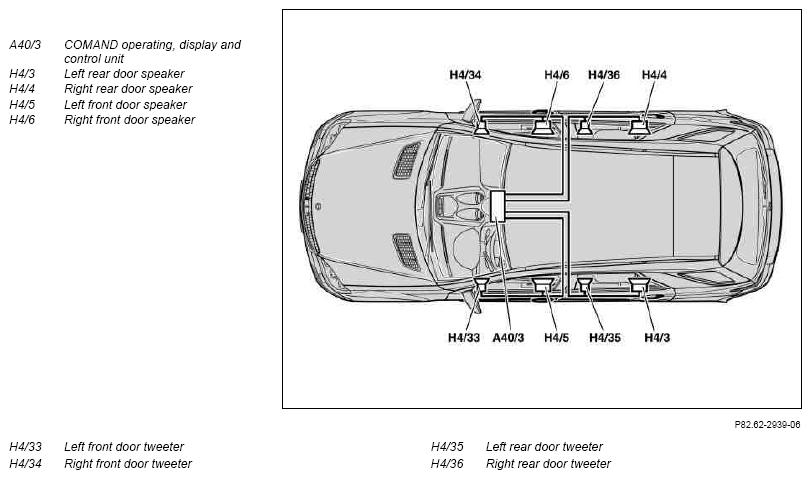

Fig 1: Identifying Speaker System Component - Shown Without Sound System (Code 810)

Courtesy of MERCEDES-BENZ USA

Shown with sound system (code 810)

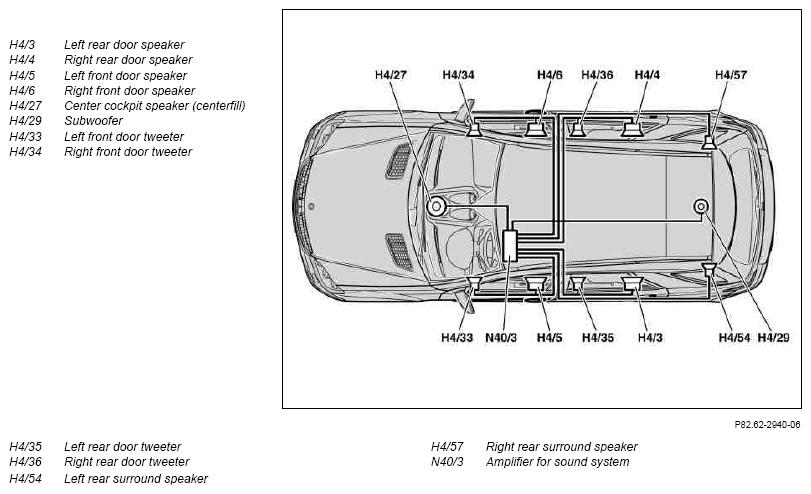

Fig 2: Identifying Speaker System Component - Shown With Sound System (Code 810)

Courtesy of MERCEDES-BENZ USA
