Side window antenna, component description - GF82.62-P-3130GZX
MODEL 164.8 except CODE (494) USA version up to Model Year 2008

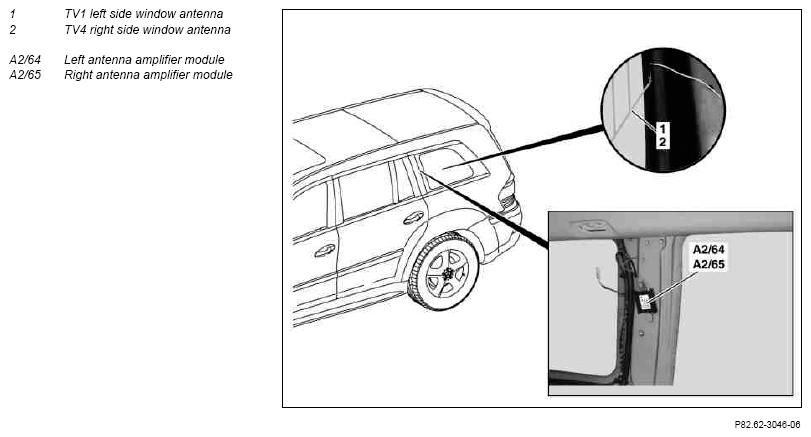

Location
The TV1 left side window antenna is on the left rear side window, and the TV4 right side window antenna is on the right side window. The TV1 left side window antenna is connected to the left antenna amplifier module; the TV4 right side window antenna is connected to the right antenna amplifier module.
Task/function
Data and voice information is received by converting electromagnetic radio waves into electrical voltage.
