Rear window antenna component description - GF82.62-P-3123GZJ
MODEL 164.1/8 except CODE (494) USA version up to Model Year 2008
Position on model 164.1

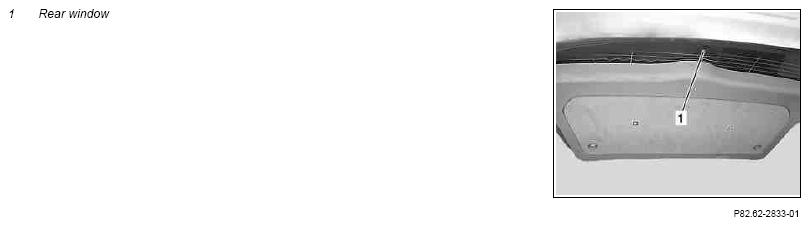

The rear window antennas FM2 and FM3 are integrated into the rear window.
Position model 164.8
The rear window antennas FM2, FM3, TV2 and TV3 are integrated in the rear window.
Task/function
Data and voice information is received by converting electromagnetic radio waves into electrical voltage.
The FM2 and FM3 rear window antennas are connected to the FM rear window antenna amplifier (A2/19).
Model 164.8
The TV2 and TV3 rear window antennas are connected to the TV rear window antenna amplifier (A2/92).
