Rear window antenna component description - GF82.62-P-3123GZ

MODEL 164 with CODE (494) USA version up to Model Year 2008

Shown on model designation 164.1

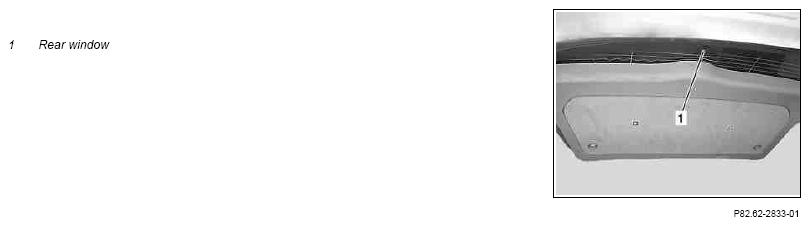

Fig 1: Identifying Rear Window Antenna Component - Shown On Model 164.1
G10118178Courtesy of MERCEDES-BENZ USA

The antennas FM2 and FM3 are integrated into the rear window. They are connected to the FM rear window antenna amplifier (A2/19).

Data and voice information is received by converting electromagnetic radio waves into electrical voltage.
