Mobile phone system, location of components - GF82.70-P-0007-01GQJ

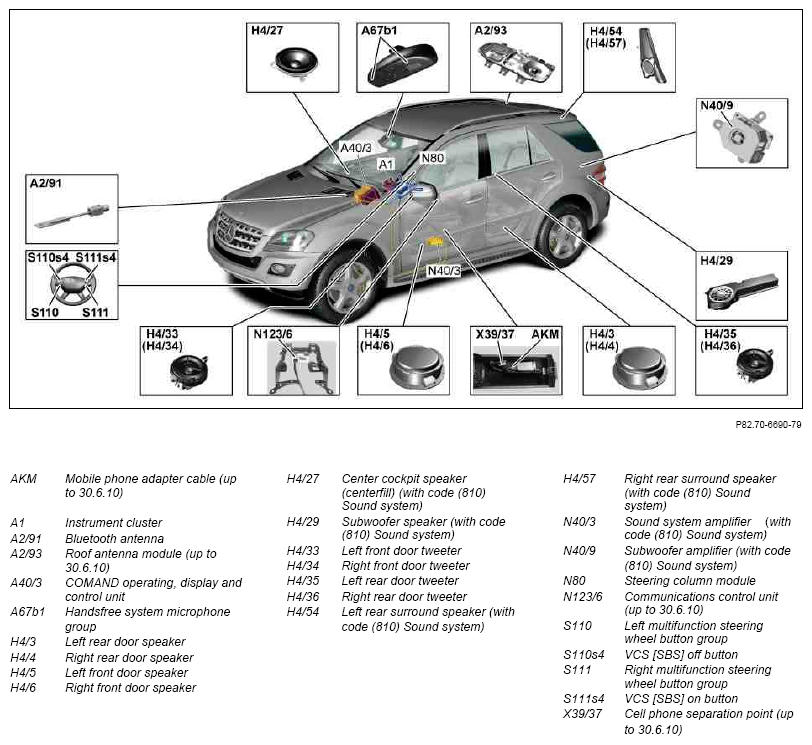

Fig 1: Mobile Phone System Components Location - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Shown on model 164.1

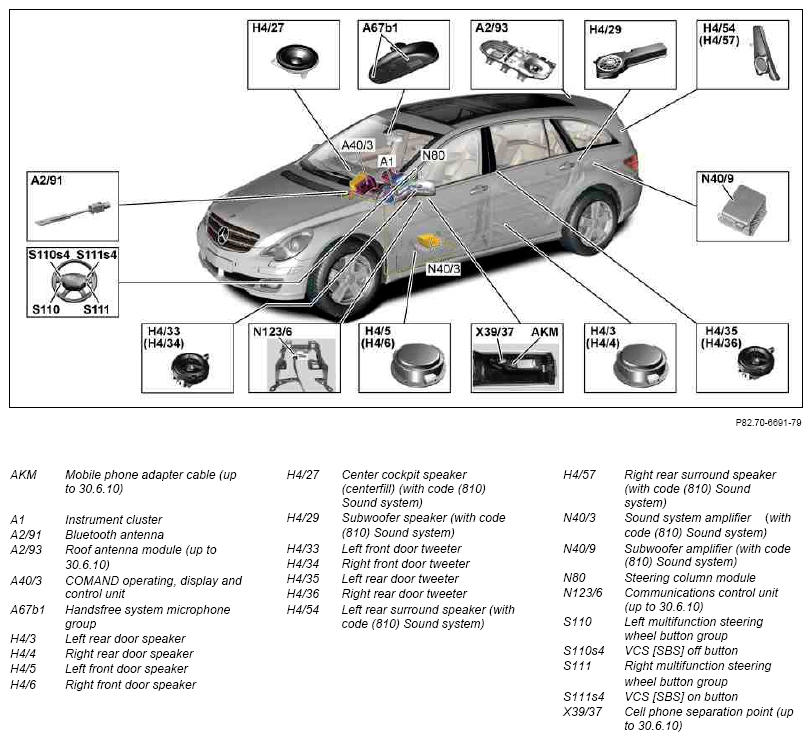

Fig 2: Mobile Phone System Components Location - Illustrated On Model 251

Courtesy of MERCEDES-BENZ USA

Illustrated on model 251
