Mobile phone system, block diagram - GF82.70-P-0007-02GQ

MODEL 164 as of model year 2009 without CODE 498 (Japanese version)

MODEL 251 as of model year 2009 without CODE 498 (Japanese version)

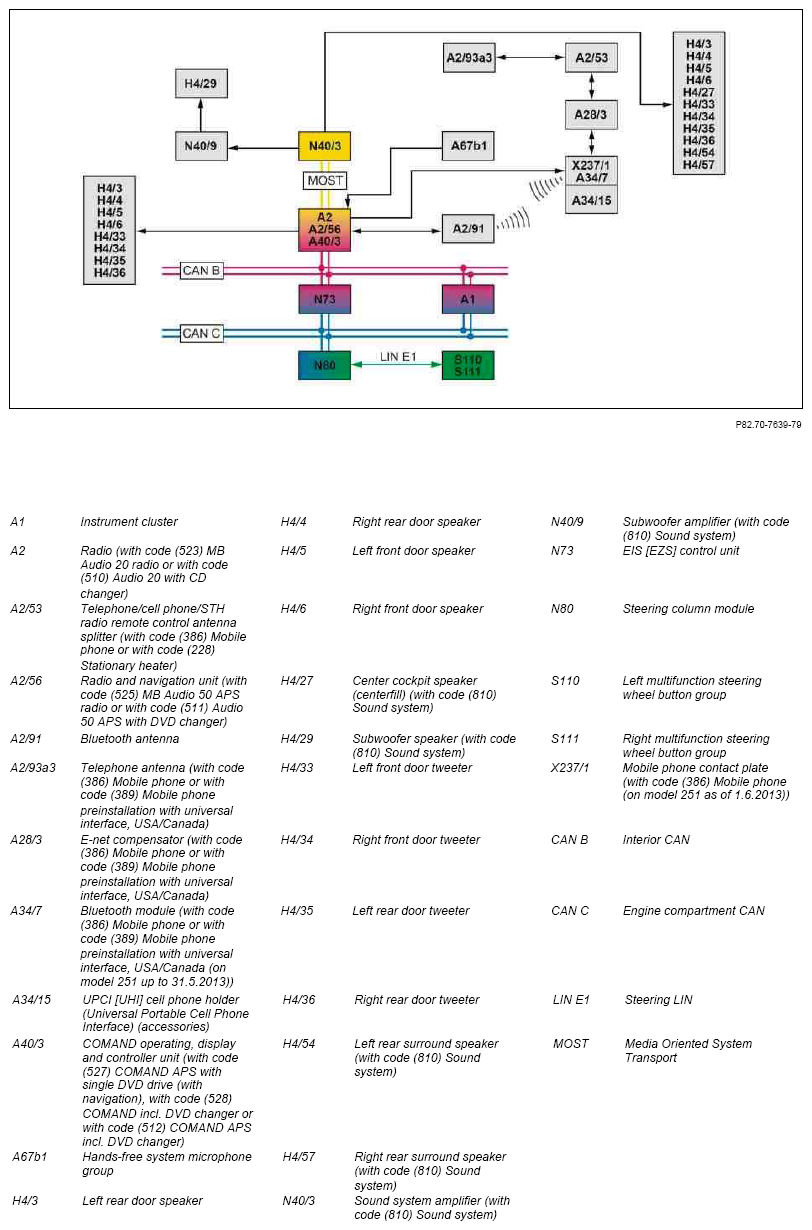

Fig 1: Mobile Phone System Block Diagram

Courtesy of MERCEDES-BENZ USA
