Hands-free system microphone, component description - GF82.70-P-4121GZE
MODEL 164 with CODE (386) Preinstallation for telephone "Handy", UPCI system with CODE (388) Telephone "Handy", UPCI system except CODE (494) USA version except CODE (498) Japan version up to Model Year 2008

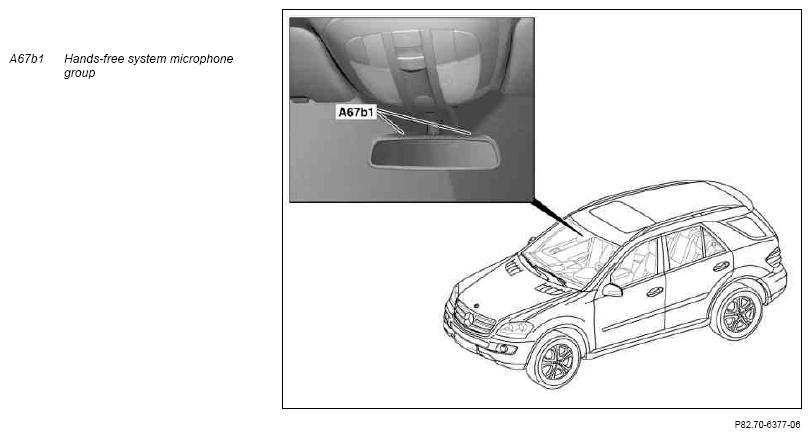

Shown on model designation 164.1 before production period 31.05.2006

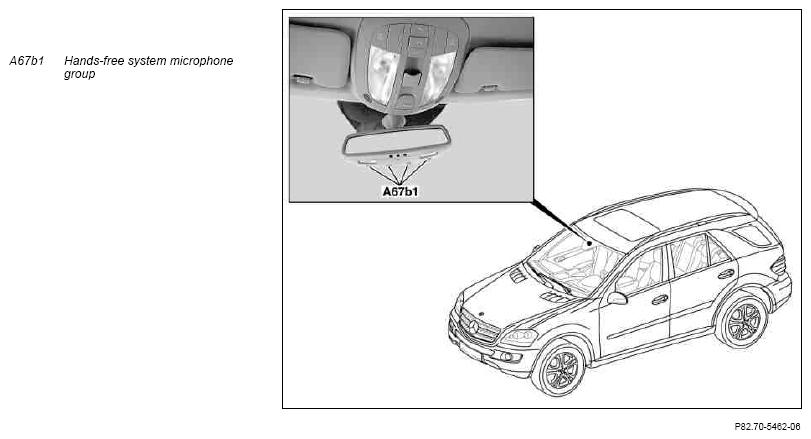

Shown on model designation 164.1 as of production period 01.06.2006
Location
The hands-free system microphone group is integrated in the inside rearview mirror unit (A67).
Task
The hands-free system microphone group is used for voice input for telephone calls via the hands-free system.
Function
The hands-free system microphone group converts sound waves into electrical signals.
