GPS antenna splitter, component description - GF82.62-P-3129GZU
MODEL 164 with CODE (494) USA version up to Model Year 2008
Shown on model designation 164.1

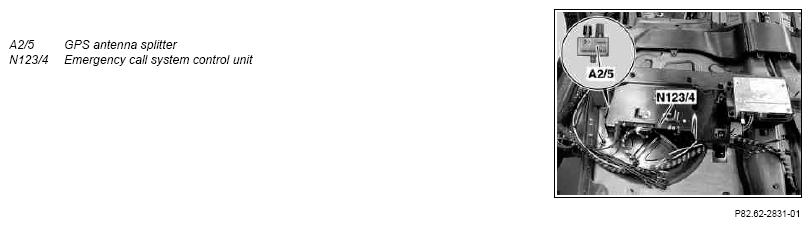

The GPS antenna splitter is located on the left rear below the left seat in the second row of seats. It serves for distribution of the GPS signals.
The GPS antenna splitter receives the signals from the GPS antenna (A2/93a6) and distributes the signals to the GPS receiver, COMAND operating, display and control unit (A40/3) and emergency call system control unit.
