Compensator component description - GF82.70-P-3110GY

MODEL 164.8 except CODE (494) USA version except CODE (498) Japan version with CODE (386) Preinstallation for telephone "Handy", UPCI system with CODE (388) Telephone "Handy", UPCI system up to Model Year 2008

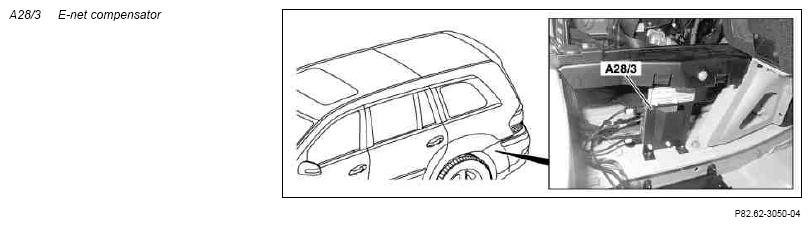

Fig 1: Identifying E-Net Compensator
G10118229Courtesy of MERCEDES-BENZ USA

The E-net compensator is located at the rear left, next to the spare tire well on a bracket.

Due to laws of physics, transmission and reception losses in the antenna line can occur when using portable CTELs. The E-net compensator compensates for these losses in order to provide a high degree of reachability even in areas of poor reception.
