Antenna amplifier module, component description - GF82.62-P-3003GZJ
MODEL 164.1 with CODE (498) Japan version up to Model Year 2008
Location

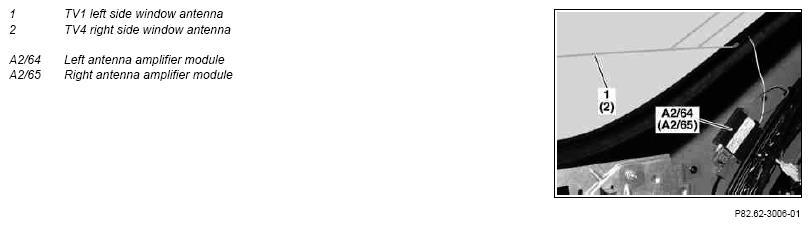

The antenna amplifier modules are mounted behind the right or left C-pillar paneling.
Location/function
The task of the antenna amplifier modules is to filter TV1 signals (left antenna amplifier module) and TV4 signals (right antenna amplifier module), to amplify them and to supply them to the TV antenna selector (A2/79).
