TV combination tuner (analog/digital), component description - GF82.90-P-4019GQ
MODEL 164.1 with CODE (863) Digital/analog TV tuner as of model year 2009/YoM 08 model refinement package
MODEL 164.8, 251.0/1 with CODE (863) Digital/analog TV tuner as of model year 2009/YoM 08

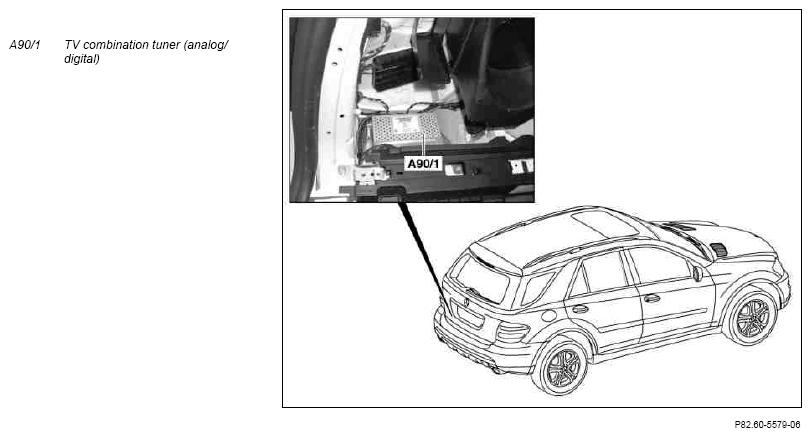

Shown on model 164.1
Location
The TV combination tuner (analog/digital) is located behind the C-pillar on the left of the trunk on a bracket.

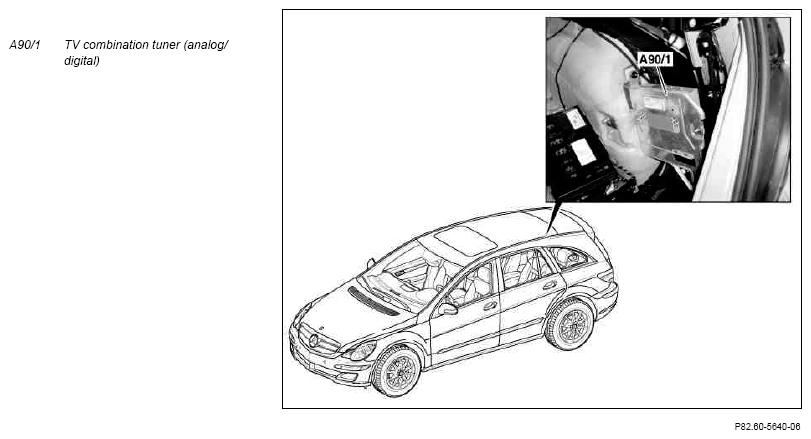

Illustrated on model 251.0
Location
The TV combination tuner (analog/digital) is located at the right rear of the trunk on a bracket.
Task
The TV combination tuner (analog/digital) performs the following tasks:
- Receive signals
- Demodulating and decoding signals
- Transmitting signals
Receive signals
The signals are received via the following connections:
- Direct line
- Telematics CAN (CAN A)
(with code (866) Rear entertainment preinstallation or code (864) Rear entertainment system)
- Media Oriented System Transport (MOST)
Direct line
- Electronic wake-up for MOST via a direct line
- TV 1 antenna in right rear side window via a coaxial line from right antenna amplifier module (A2/65)
- TV 2 antenna in rear window via a coaxial line from TV rear window antenna amplifier (A2/92)
- TV 3 antenna in rear window via a coaxial line from TV rear window antenna amplifier
- TV 4 antenna in left rear side window via a coaxial line from left antenna amplifier module (A2/64)
Telematics CAN
(With code (866) Rear entertainment preinstallation or code (864) Rear entertainment system)
The TV combination tuner (analog/digital) is a subscriber of the
Telematics CAN and communicates with the following control units:
- Left rear display (A40/5)
- Right rear display (A40/6)
- DVD player (A40/4)
MOST
The TV combination tuner (analog/digital) is a subscriber of the MOST and communicates with the COMAND operating, display and controller unit (A40/3).
Demodulating and decoding signals
The TV signals are evaluated internally and separated into video and audio signals.
As of 1.7.09 the TV combination tuner (analog/digital) supports the following functions:
- Electronic Program Guide:
Enables reception and display of information about the broadcast (e.g. title, time, duration of broadcast, encryption, program category, age restriction, etc.).
- On vehicles with code (864) Rear entertainment system or code (866) Rear entertainment preinstallation, the left rear display and right rear display can access the TV combination tuner (analog/digital) independently of each other.
Transmitting signals
The signals are transmitted via the following connections:
- Direct line
- Telematics CAN
(with code (866) Rear entertainment preinstallation or code (864) Rear entertainment system)
- MOST
Direct line
- Phantom voltage to the following amplifiers:
- Right antenna amplifier module
- TV rear window antenna amplifier
- Left antenna amplifier module
- Transmission of video signals via Y brightness (luminance)/C color information (chrominance) (Y/C) lines to COMAND operating, display and controller unit
- Transmission of video signals via Y/C lines to DVD player (with code (866) Rear entertainment preinstallation or code (864) Rear entertainment system)
- Transmission of audio signals via low-frequency (LF) lines to DVD player (with code (866) Rear entertainment preinstallation or code (864) Rear entertainment system)
Telematics CAN
(with code (866) Rear entertainment preinstallation or with code (864) Rear entertainment system)
The TV combination tuner (analog/digital) is a subscriber of the Telematics CAN and communicates with the following control units:
- Left rear display
- Right rear display
- DVD player
MOST
The TV combination tuner (analog/digital) is a subscriber of the MOST and communicates with the COMAND operating, display and controller unit.
| Wiring diagram of TV tuner | Model 164 | PE82.60-P-2220-99MAB | |
| Model 251 | PE82.60-P-2220-99RAB |
