Rear entertainment, location of components - GF82.90-P-0002-01GQ

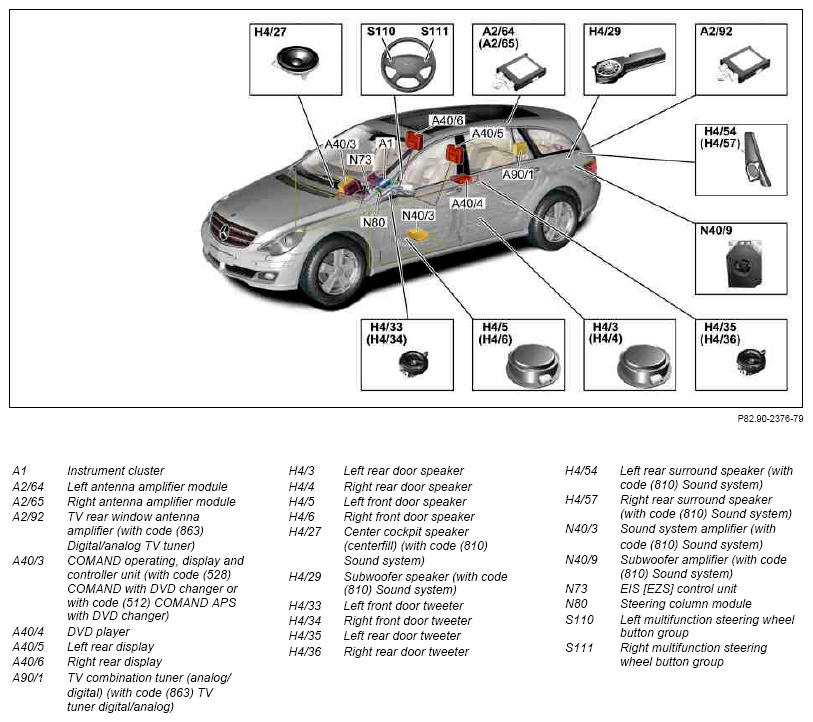

Fig 1: Rear Entertainment Components Location - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Shown on model 164.1

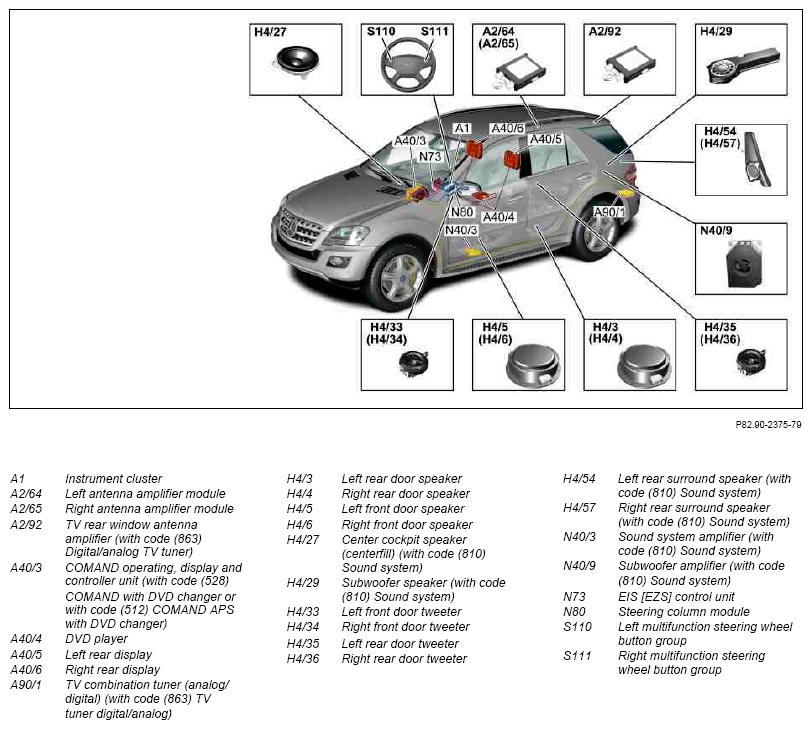

Fig 2: Rear Entertainment Components Location - Illustrated On Model 251

Courtesy of MERCEDES-BENZ USA

Illustrated on model 251
