Rear entertainment remote control, component description - GF82.90-P-4022GZ
MODEL 164 with CODE (864) Rear entertainment system except CODE (498) Japan version up to Model Year 2008
Task
All available functions can be operated using the remote control.
If both rear displays (left rear display (A40/5), right rear display (A40/6)) are being used, a distinction is made between the active side and the passive side.
Active means that the menu can be operated via the remote control. The displays can be addressed and activated using the switch on the side of the remote control (R/L). Only one display at a time can be operated using the remote control.

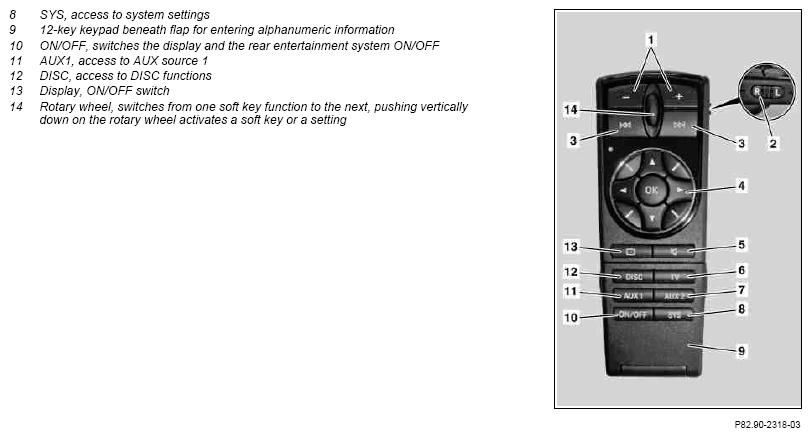

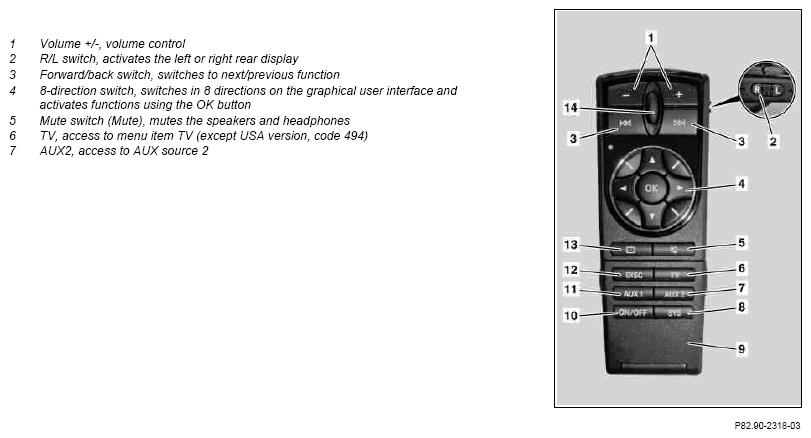

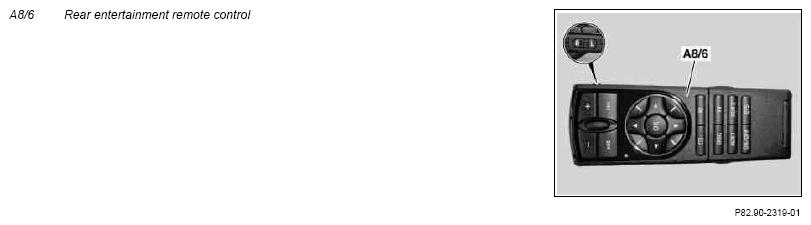

Controls of the rear entertainment remote control
