Rear entertainment DVD player component description - GF82.90-P-4009GQ

MODEL 164.1 with CODE (864) Rear entertainment system as of model year 09/YoM 08 model refinement package

MODEL 164.1 with CODE (866) Preinstallation for rear entertainment system with CODE (494) USA version as of model year 09/YoM 08 model refinement package

MODEL 164.8 with CODE (864) Rear entertainment system as of model year 09/YoM 08

MODEL 164.8 with CODE (866) Preinstallation for rear entertainment system with CODE (494) USA version as of model year 09/YoM 08

MODEL 251.0 with CODE (864) Rear entertainment system as of model year 09/YoM 08

MODEL 251.0 with CODE (866) Preinstallation for rear entertainment system with CODE (494) USA version as of model year 09/YoM 08

MODEL 251.1 with CODE (864) Rear entertainment system as of model year 09/YoM 08

MODEL 251.1 with CODE (866) Preinstallation for rear entertainment system with CODE (494) USA version as of model year 09/YoM 08

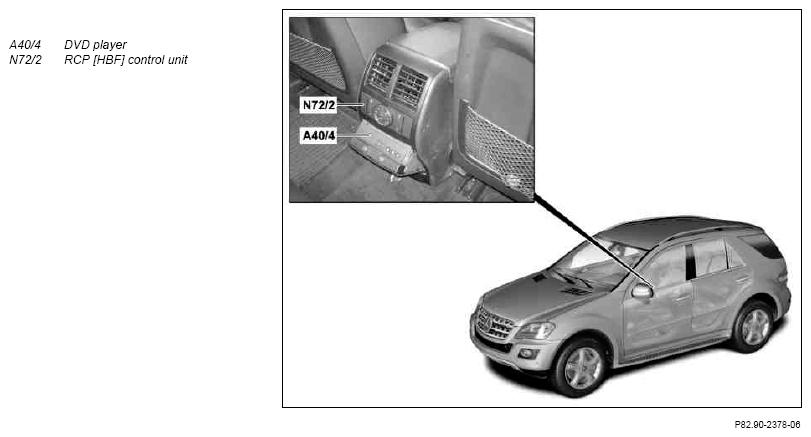

Shown on model 164.1

Fig 1: Identifying Rear Entertainment DVD Player Component - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Location

The DVD player is located behind a flap below the rear control panel control unit in the center console.

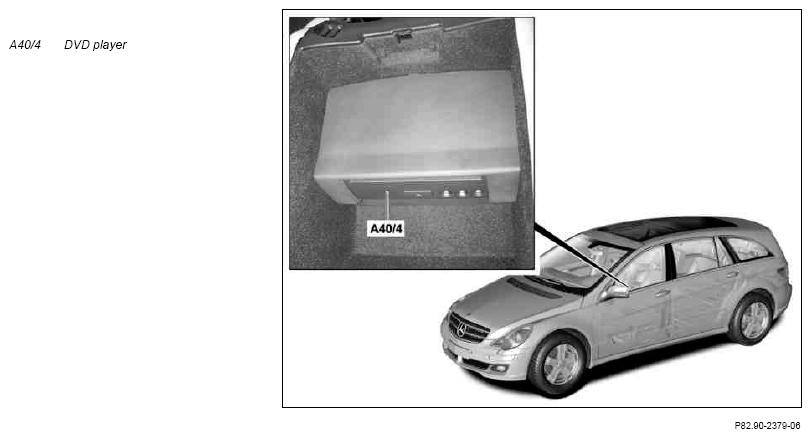

Illustrated on model 251

Fig 2: Rear Entertainment DVD Player Component Location - Illustrated On Model 251

Courtesy of MERCEDES-BENZ USA

Location

The DVD player is installed in the stowage compartment in the center console.

Task

Central control unit for rear entertainment system
Allow usage of all audio/video units or video sources installed on and in DVD player
Manage connected audio/video units or video sources
Power and resource management
Connection detection i.e. detection of which audio/video units or video sources are connected
Receiving signals
Decoding of signals
Transmitting signals

Central control unit for rear entertainment system

The DVD player is used for the following applications:

Disk:
- Audio CD or DVD
- Video DVD
- MP3-CD or DVD
AUX
TV reception, with code (863) Digital/analog TV tuner

Allow usage of all audio/video units or video sources installed on and in DVD player

The following connection or playback options are available for the associated audio or video units or sources:

AUX:
- e. g. portable DVD players, video cameras, MP3 players, or game consoles
COMAND video or COMAND audio (COMAND operating, display and controller unit (A40/3)), with code (528) COMAND with DVD changer or with code (512) COMAND APS with DVD changer
Integrated DVD drive:
- Audio CD or DVD
- Video DVD
- MP3-CD or DVD

Manage connected audio/video units or video sources

The associated audio/video units or video sources can be managed via the following connection options or components:

AUX:
- e. g. portable DVD players, video cameras, MP3 players, or game consoles
COMAND video or COMAND audio (COMAND operating, display and controller unit), with code (528) COMAND with DVD changer or with code (512) COMAND APS with DVD changer
Integrated DVD drive:
- Audio CD or DVD
- Video DVD
- MP3-CD or DVD

Power and resource management

Detection of overvoltage/undervoltage combined with appropriate switch on/off behavior

Connection detection i.e. detection of which audio/video units or video sources are connected

Audio or video units or sources at the following connection options or components are recognized:

AUX:
- e. g. portable DVD players, video cameras, MP3 players, or game consoles
COMAND video or COMAND audio (COMAND operating, display and controller unit), with code (528) COMAND with DVD changer or with code (512) COMAND APS with DVD changer
Integrated DVD drive:
- Audio CD or DVD
- Video DVD
- MP3-CD or DVD

Receiving signals

Direct lines
Controller Area Network (data bus/CAN bus) (CAN)

Direct lines

Circuit 30g and circuit 31 power supply
3 connection groups for audio or video sources (one at the front side and 2 at the rear side)
Y/C connection (Y/C line) for analog picture signals from TV combination tuner (analog/digital) (A90/1), with code (863) Digital/analog TV tuner
Low frequency (LF) line (stereo line) for analog audio signals from TV combination tuner (analog/digital), with code (863) Digital/analog TV tuner
Analog video and audio signals from audio/video sources connected to AUX jack
Digital picture and audio signals from the audio CD or DVD, video DVD, MP3-CD or DVD inserted in the DVD drive
Y/C connection (Y/C line) for analog picture signals from COMAND operating, display and controller unit, with code (528) COMAND with DVD changer or with code (512) COMAND APS with DVD changer
LF (stereo line) for analog audio signals from COMAND operating, display and controller unit, with code (528) COMAND with DVD changer or with code (512) COMAND APS with DVD changer

CAN

The DVD player is a subscriber to the interior CAN and telematics CAN. The DVD player communicates with the EZS control unit (N73) via the interior CAN.

The DVD player communicates with the following components via the telematics CAN:

Left rear display (A40/5)
Right rear display (A40/6)

Decoding of signals

Decoding of analog or digital audio and picture signals from audio/video units or sources connected via the following options into analog audio and picture signals:

AUX (analog):
- e. g. portable DVD players, video cameras, MP3 players, or game consoles
COMAND video or COMAND audio (COMAND operating, display and controller unit), with code (528) COMAND with DVD changer or with code (512) COMAND APS with DVD changer
Integrated DVD drive (digital):
- Audio CD or DVD
- Video DVD
- MP3-CD or DVD

Transmitting signals

Direct lines
CAN

Direct lines

Y/C connection (Y/C line) for analog picture signals to left rear display or right rear display
LF (stereo line) for analog audio signals to left rear display or right rear display
LF (stereo line) for audio out (analog) to COMAND operating, display and controller unit, with code (528) COMAND with DVD changer or with code (512) COMAND APS with DVD changer

CAN

The DVD player is a subscriber to the interior CAN and telematics CAN. The DVD player communicates with the EZS control unit via the interior CAN. The DVD player communicates with the following components via the telematics CAN:

Left rear display
Right rear display

Design

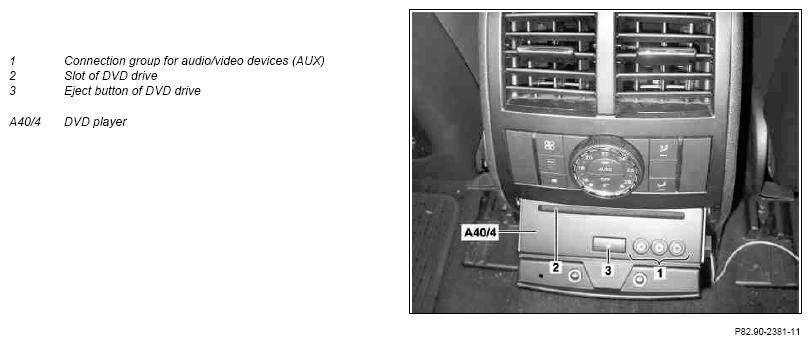

Illustration shows front on model 164.1

Fig 3: Identifying DVD Player

Courtesy of MERCEDES-BENZ USA

A DVD drive (single slot) is also integrated into the unit.

Function

DVD drive (single slot)

The DVD drive of the DVD player is a single slot drive. As well as DVD video and audio media, it can also play CD audio media and MP3 files. It can also play media protected by popular copy protection systems and recorded blanks (CD R/RW; DVD R/+R/RW).

The DVD drive has a "DVD Disk Auto Detect" function.

	Wiring diagram for DVD player control unit	Model 164	PE82.60-P-2104-99MAB
		Model 251	PE82.60-P-2104-99RAB
