Rear display left/right component description - GF82.90-P-4020GQ
MODEL 164.1 with CODE (864) Rear entertainment system as of model year 09/YoM 08 model refinement package
MODEL 164.1 with CODE (866) Preinstallation for rear entertainment system with CODE (494) USA version as of model year 09/YoM 08 model refinement package
MODEL 164.8 with CODE (864) Rear entertainment system as of model year 09/YoM 08
MODEL 164.8 with CODE (866) Preinstallation for rear entertainment system with CODE (494) USA version as of model year 09/YoM 08
MODEL 251.0 with CODE (864) Rear entertainment system as of model year 09/YoM 08
MODEL 251.0 with CODE (866) Preinstallation for rear entertainment system with CODE (494) USA version as of model year 09/YoM 08
MODEL 251.1 with CODE (864) Rear entertainment system as of model year 09/YoM 08
MODEL 251.1 with CODE (866) Preinstallation for rear entertainment system with CODE (494) USA version as of model year 09/YoM 08

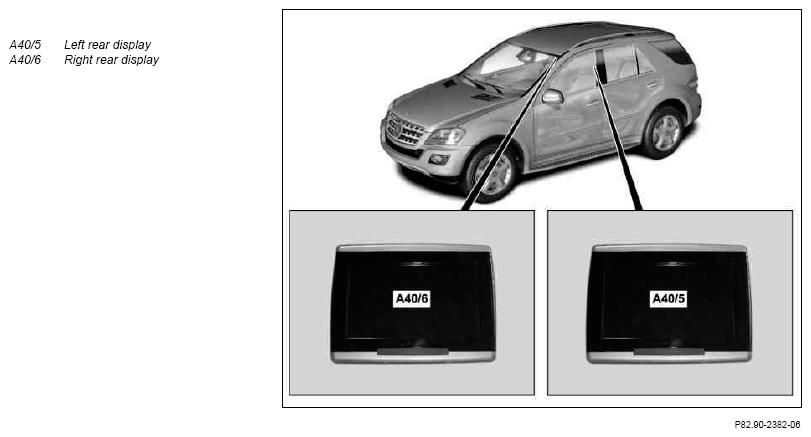

Shown on model 164.1
Location
The left rear display is located on the left front seat behind the head restraint.
The right rear display is located on the right front seat behind the head restraint.

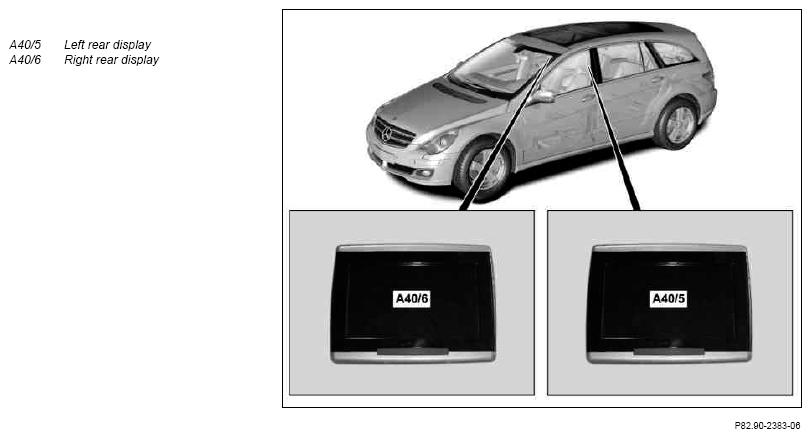

Illustrated on model 251
Location
The left rear display is located on the left front seat behind the head restraint.
The right rear display is located on the right front seat behind the head restraint.
The displays are of identical design and the decision as to whether the display is used on the left or right side is made via the "Side" pin (left = "Side" pin to ground (circuit 31), right = "Side" pin not assigned). The following description refers to the left rear display. It also applies to the right rear display accordingly.
Task
- Visualization of all user-relevant information in rear entertainment system
- Allow usage of all audio/video devices installed on the left rear display
- Manage connected audio/video devices
- Power and resource management
- Connection detection i.e. detection of which audio/video devices are connected
- Man Machine Interface (MMI)
- Receiving signals
- Generation of picture signals
- Generation of infrared (IR) signals
- Output of audio signals
- Transmitting signals
Visualization of all user-relevant information in rear entertainment system
- Graphic displays to guide user
- Operation
- Display of digital picture signals
Allow usage of all audio/video devices installed on the left rear display
The following audio/video devices can be connected via the AUX jack, for example:
- Portable DVD players
- Video cameras
- MP3 players
- Game consoles
Manage connected audio/video devices
The following audio/video devices can be managed via the AUX jack, for example:
- Portable DVD players
- Video cameras
- MP3 players
- Game consoles
Power and resource management
Detection of overvoltage/undervoltage combined with appropriate switch on/off behavior
Connection detection i.e. detection of which audio/video devices are connected
Detection of the following audio/video units connected to the AUX jack, for example:
- Portable DVD players
- Video cameras
- MP3 players
- Game consoles
MMI
Between rear passenger(s) and rear entertainment system via IR interface of remote control and display.
Receiving signals
- Direct lines
- Controller Area Network (data bus/CAN bus) (CAN)
Direct lines
- Circuit 30g and circuit 31 power supply
- Y/C connection (Y/C line) for analog picture signals from DVD player (A40/4)
- Low frequency (LF) line (stereo line) for analog audio signals from the DVD player
- Analog picture and audio signals from the audio or video units connected to the AUX jack
- IR signals (digital) from remote control via IR interface
CAN
The left rear display is a subscriber to the telematics CAN. It communicates with the following components:
- DVD player
- TV combination tuner (analog/digital) (A90/1), with code (863) TV tuner digital/analog
Generation of picture signals
Generation of digital picture signals from analog picture signals to display associated screen on left rear display.
Generation of IR signals
Generation of digital IR audio signals from analog audio signals for transmission to headphones (cordless) connected via the IR interface.
Output of audio signals
Output of audio signals via following options:
- Analog:
- Headphones connected by cable to the integrated headphone socket (cable-connected)
- IR:
- Headphones connected via the IR interface (cordless)
The volume of the audio signals can only be adjusted via the remote control for headphones connected by cable to the integrated headphone socket. For headphones (cordless) connected via the IR interface, the volume of the audio signals is adjusted via the volume control integrated in the IR headphones.
Transmitting signals
- Direct lines
- CAN
Direct lines
- Electrical analog signals (frequency) (audio signals) to headphones connected via cable
- IR signals (digital) to IR headphones (cordless) via IR interface
CAN
The left rear display is a subscriber to the telematics CAN. It communicates with the following components:
- DVD player
- TV combination tuner (analog/digital), with code (863) Digital/analog TV tuner

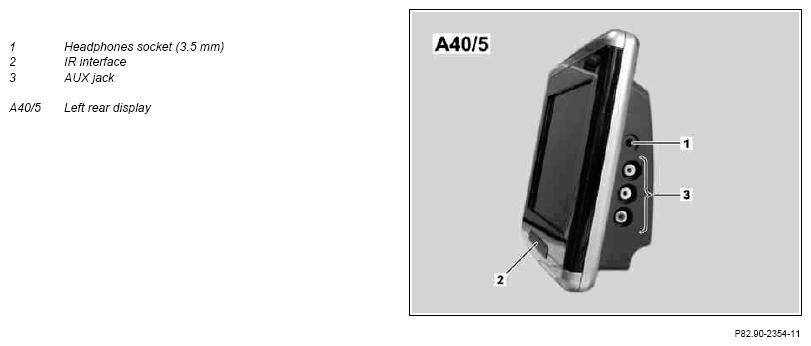

Design
An audio amplifier for the integrated headphones socket (3.5 mm) is also integrated into the unit.
The left rear display has the following additional features:
- 8" TFT color display
- Display format 16:9
- Maximum resolution 800 x 480 pixels, 3 x 6 bit color depth (able to display 262, 144 colors)
Set-up of screen using "DVD-V" menu in "DISC" menu item as an example
| Wiring diagram for DVD player control unit | Model 164 | PE82.60-P-2104-99MAB | |
| Model 251 | PE82.60-P-2104-99RAB |
