Cockpit management and data system (COMAND), location of components - GF82.85-P-0003-01GQJ

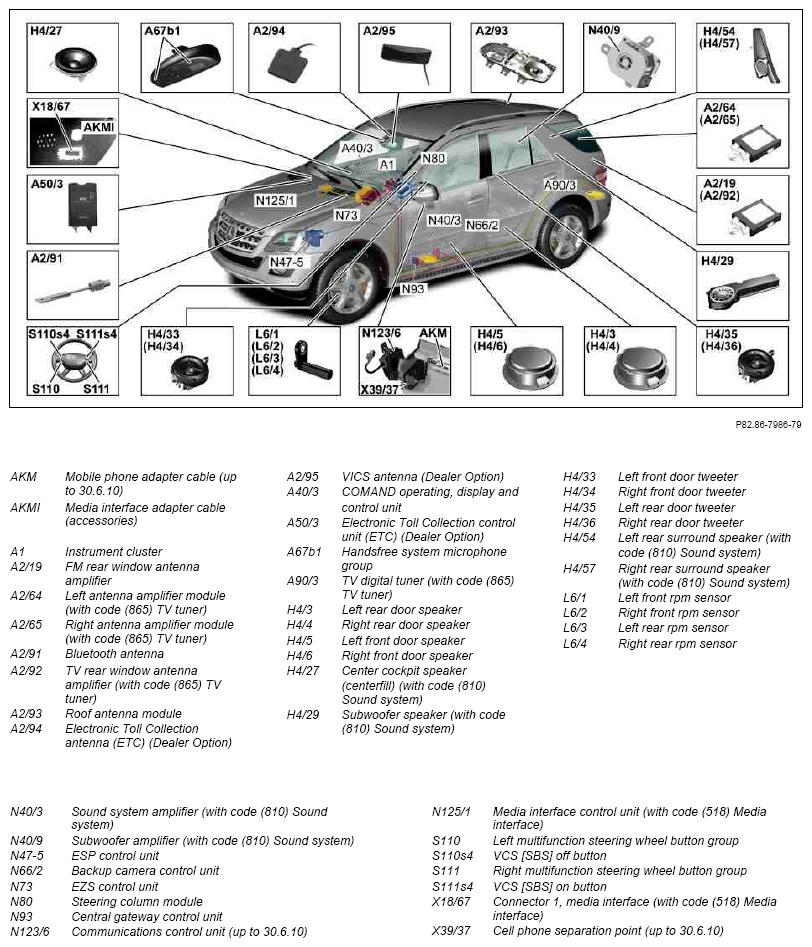

Fig 1: Cockpit Management And Data System Components Location - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Shown on model 164.1

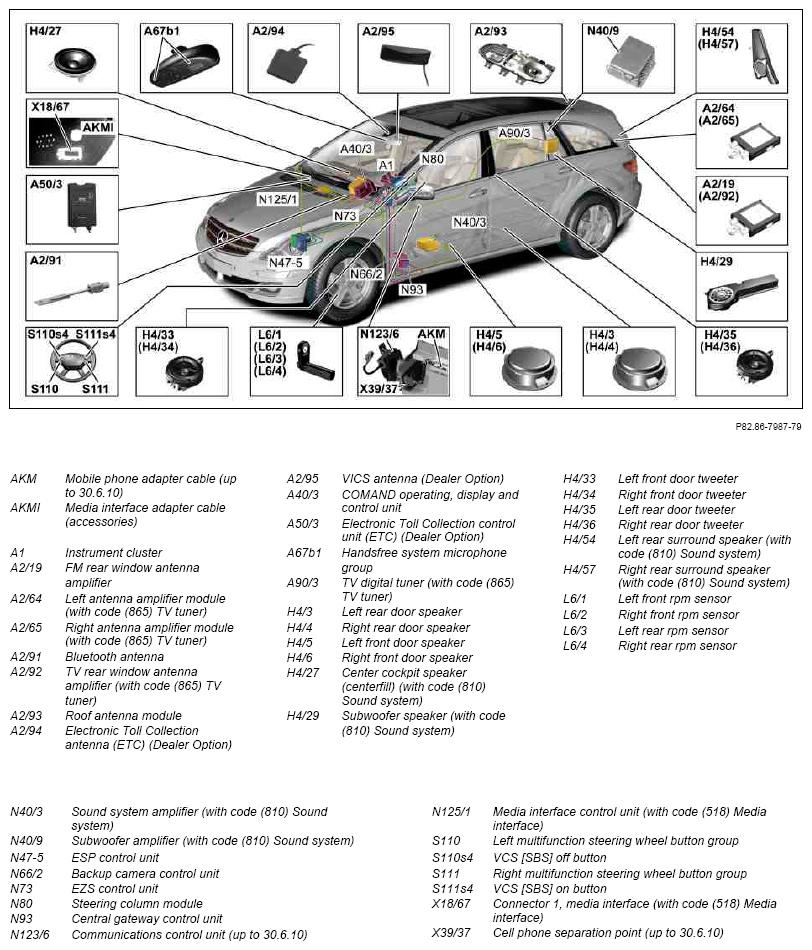

Fig 2: Cockpit Management And Data System Components Location - Shown On Model 251

Courtesy of MERCEDES-BENZ USA

Illustrated on model 251
