Cockpit Management and Data System (COMAND) block diagram - GF82.85-P-0003-11GQJ

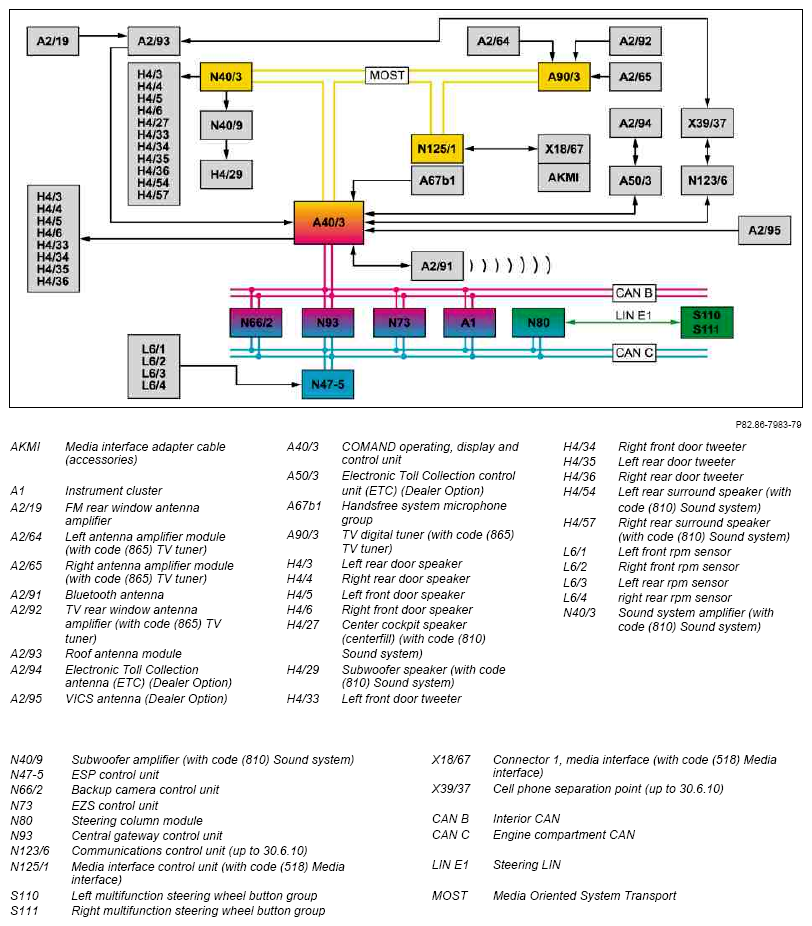

Fig 1: Cockpit Management And Data System Block Diagram

G10118255

Courtesy of MERCEDES-BENZ USA
