Cockpit Management and Data System (COMAND) block diagram - GF82.85-P-0003-11GQ

MODEL 164 as of model year 2009 with CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 528 (COMAND with DVD changer)

MODEL 164 as of model year 2009 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 512 (COMAND APS with DVD changer) without CODE 528 (COMAND with DVD changer)

MODEL 164 as of model year 2009 with CODE 528 (COMAND with DVD changer) without CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation))

MODEL 251 as of model year 2009 with CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 528 (COMAND with DVD changer)

MODEL 251 as of model year 2009 with CODE 527 (COMAND APS with single DVD drive (with navigation)) without CODE 512 (COMAND APS) without CODE 528 (COMAND with DVD changer)

MODEL 251 as of model year 2009 with CODE 528 (COMAND with DVD changer) without CODE 512 (COMAND APS with DVD changer) without CODE 527 (COMAND APS with single DVD drive (with navigation))

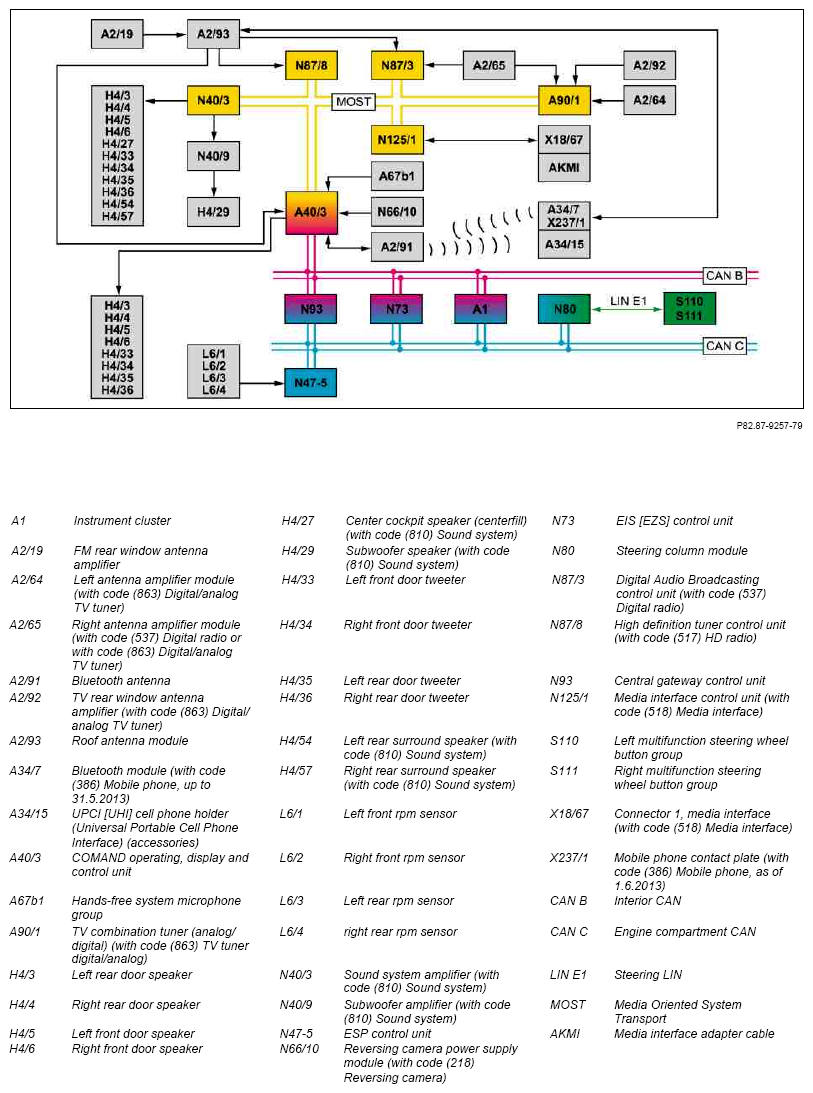

Fig 1: Cockpit Management And Data System Block Diagram - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Shown on model 164.1

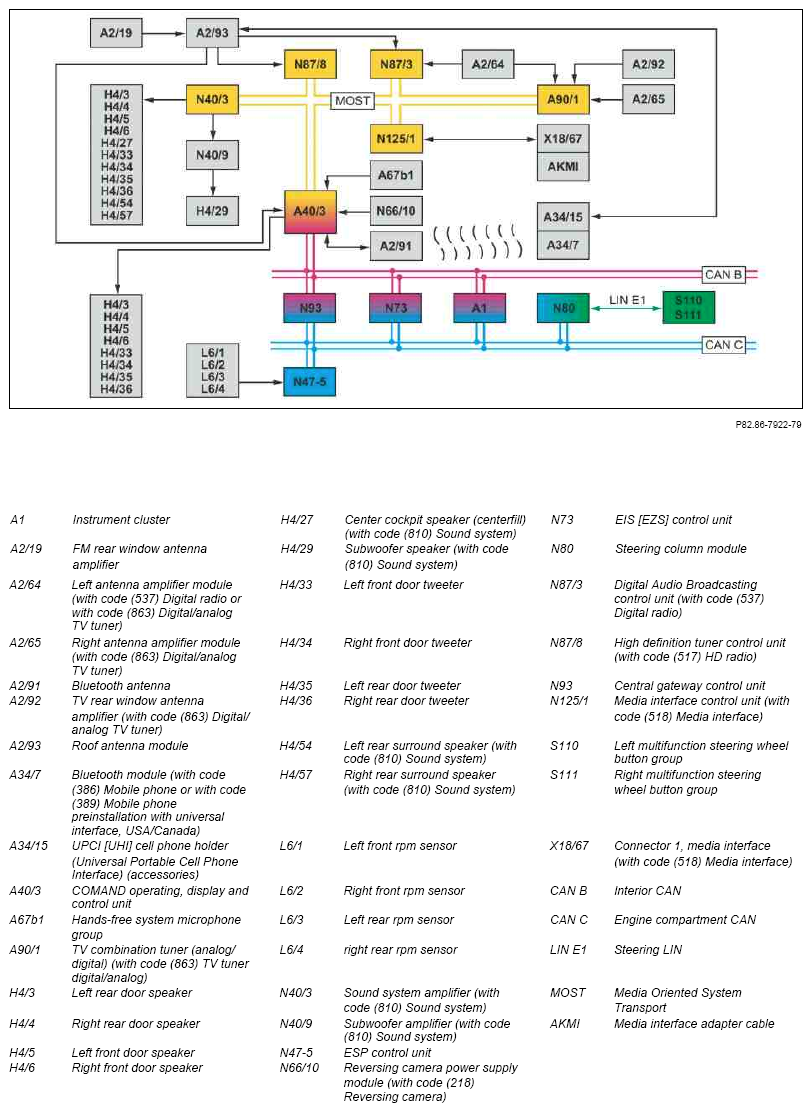

Fig 2: Cockpit Management And Data System Block Diagram - Shown On Model 251

Courtesy of MERCEDES-BENZ USA

Shown on model 251
