Interior illumination (IBL), location of components - GF82.20-P-0002-01GV

Illustrated on model 251.1

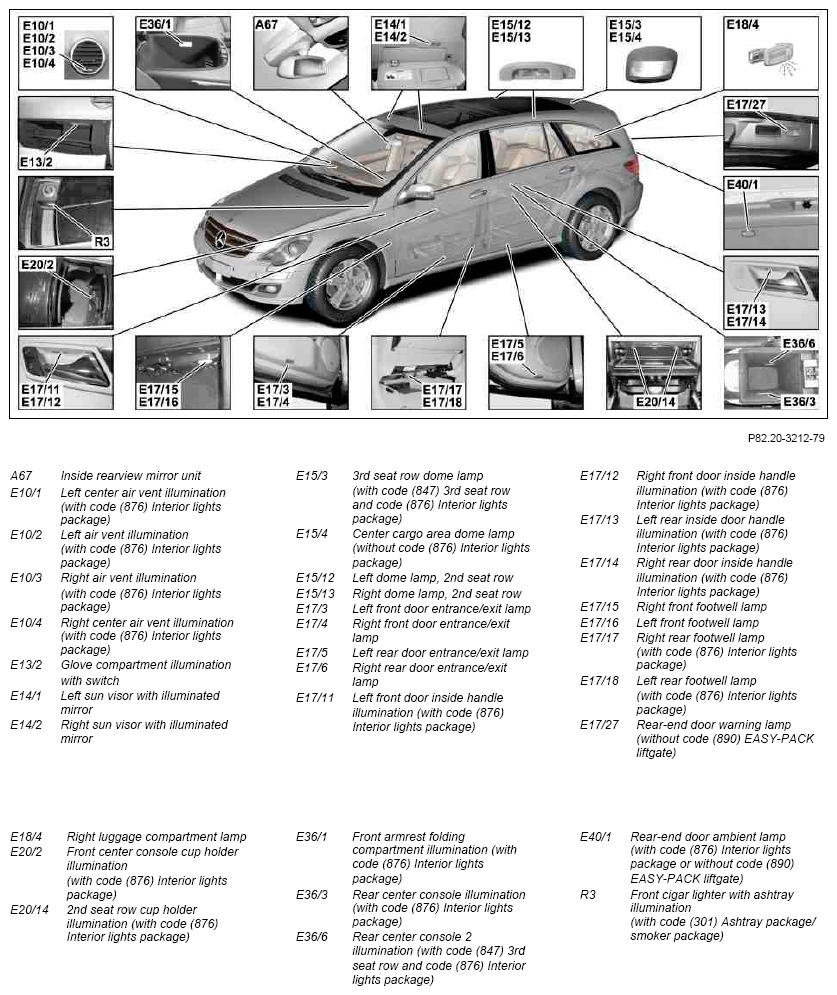

Fig 1: Interior Illumination Components Location - Illustrated On Model 251.1 (1 Of 2)
G10118077Courtesy of MERCEDES-BENZ USA

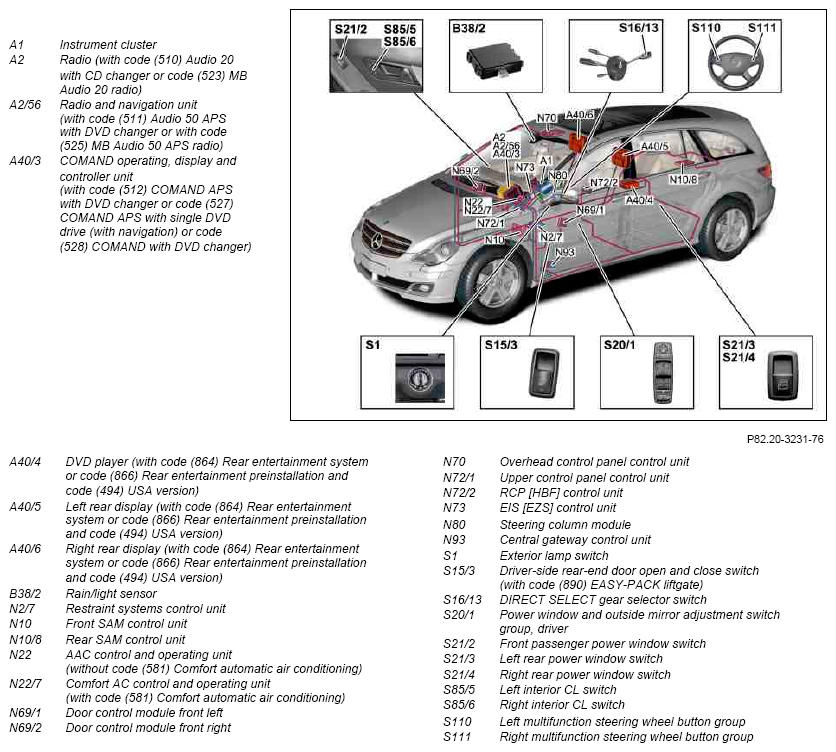

Fig 2: Interior Illumination Components Location - Illustrated On Model 251.1 (2 Of 2)
G10118078Courtesy of MERCEDES-BENZ USA

Shown on model 251.1
