Interior illumination (IBL), location of components - GF82.20-P-0002-01GM

Manual interior lights control, shown on model 164.1

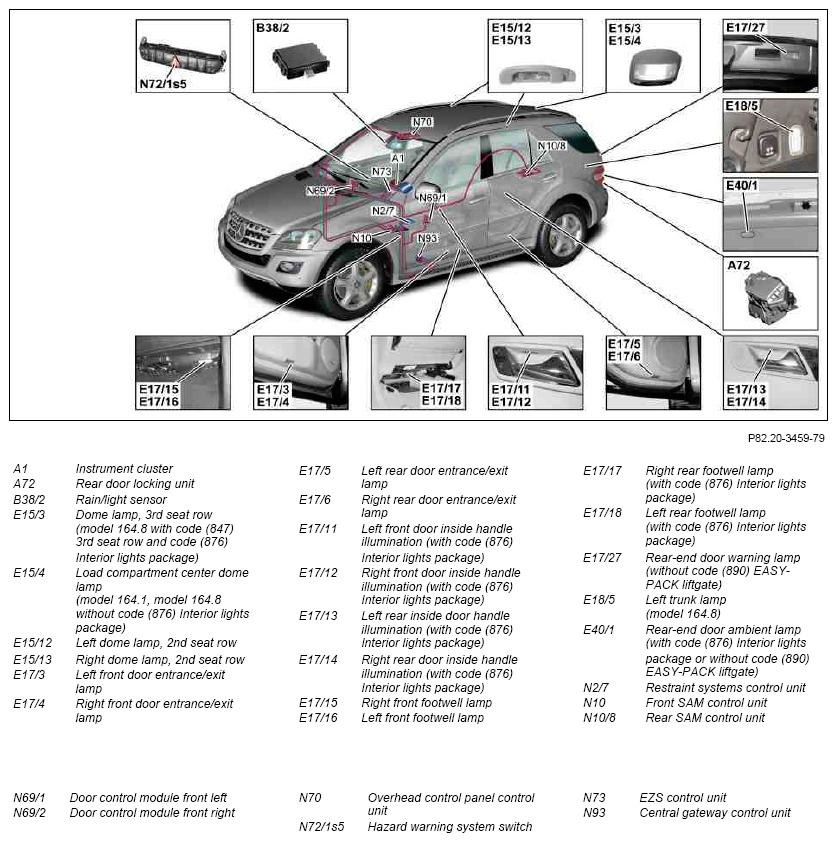

Fig 1: Manual Interior Lights Control Components Location - Shown On Model 164.1 (1 Of 2)

Courtesy of MERCEDES-BENZ USA

Fig 2: Manual Interior Lights Control Components Location - Shown On Model 164.1 (2 Of 2)

Courtesy of MERCEDES-BENZ USA

Automatic interior lights control, shown on model 164.1

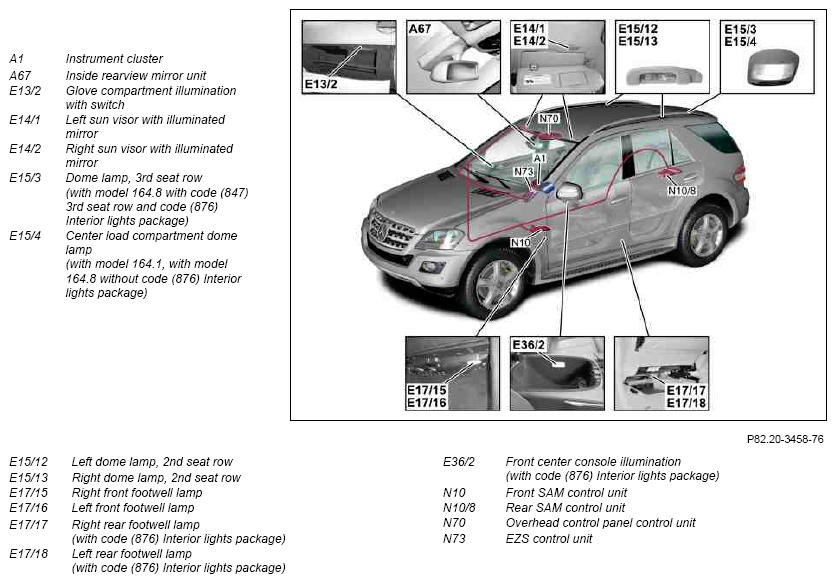

Fig 3: Automatic Interior Lights Control Components Location - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

Search and symbol illumination, shown on model 164.1

Ambiance illumination (Model 164.8 as of 1.7.09 with code (877) Ambiance illumination and model 164.1 as of 1.8.10 with code (877) Ambiance illumination)

Shown on model 164.8

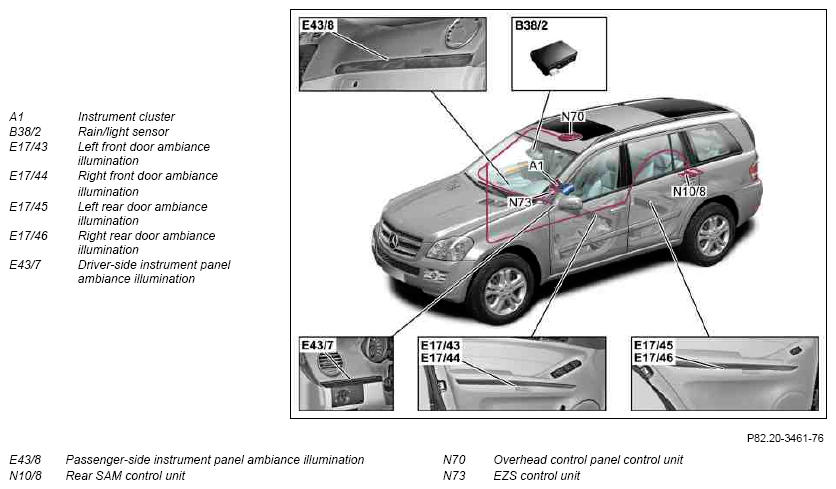

Fig 4: Ambiance Illumination Components Location - Shown On Model 164.8

Courtesy of MERCEDES-BENZ USA
