Exterior lights, location of components - GF82.10-P-0003-02GZ

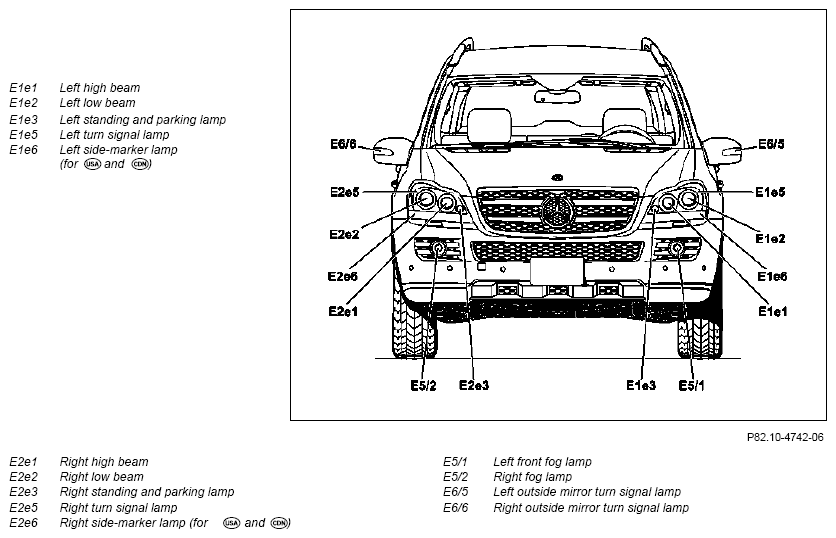

Location of front illumination Model 164.1 without code (615) Bi-xenon headlamp unit with integrated curve illumination

Fig 1: Exterior Lights Components Location - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

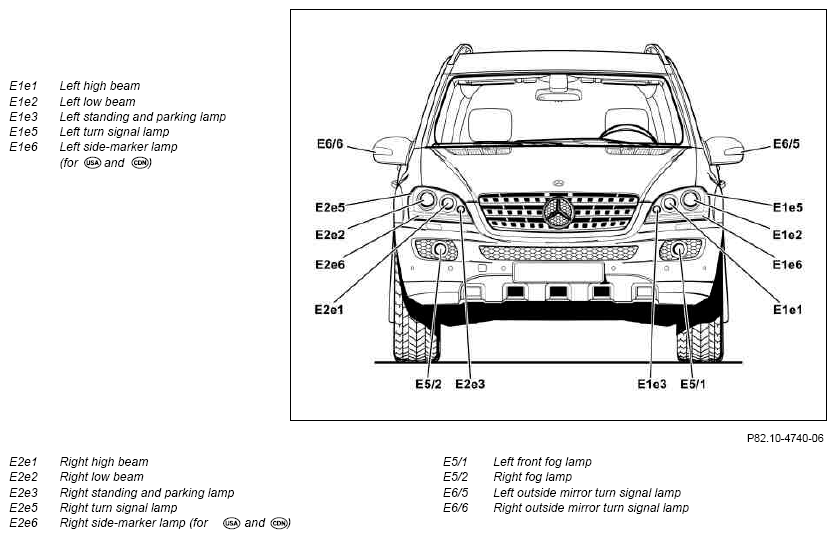

Location of front illumination Model 164.8 without code (615) Bi-xenon headlamp unit with integrated curve illumination

Fig 2: Exterior Lights Components Location - Shown On Model 164.8

Courtesy of MERCEDES-BENZ USA

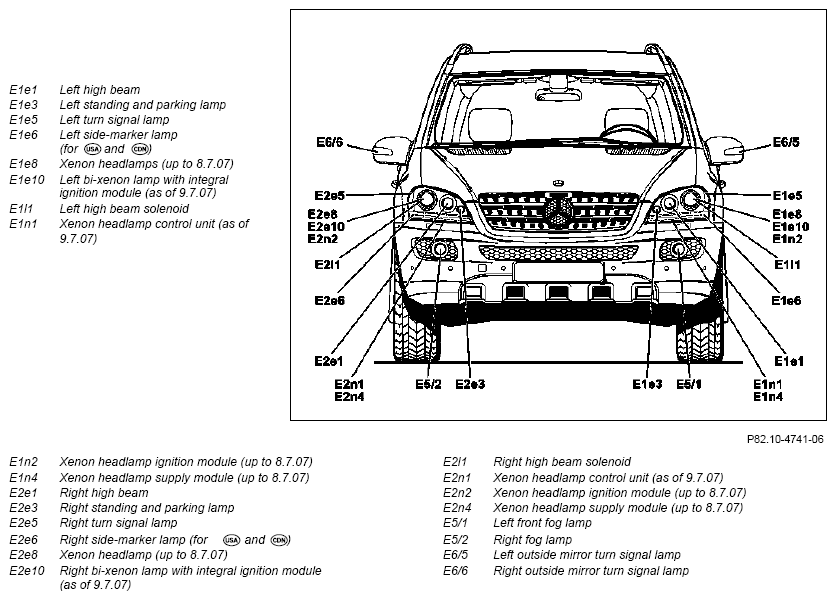

Location of front illumination Model 164.1 with code (615) Bi-xenon headlamp unit with integrated curve illumination

Fig 3: Exterior Lights Components Location - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

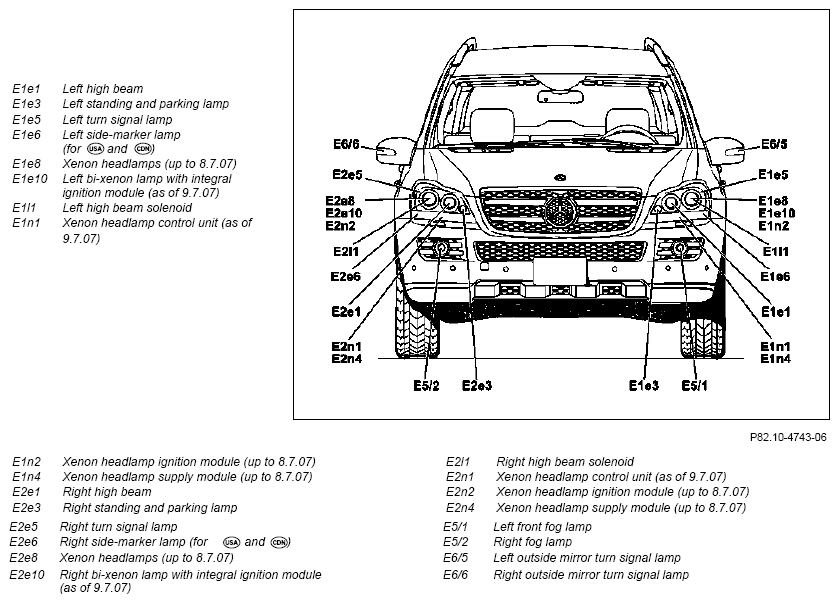

Location of front illumination Model 164.8 with code (615) Bi-xenon headlamp unit with integrated curve illumination

Fig 4: Exterior Lights Components Location - Shown On Model 164.8

Courtesy of MERCEDES-BENZ USA

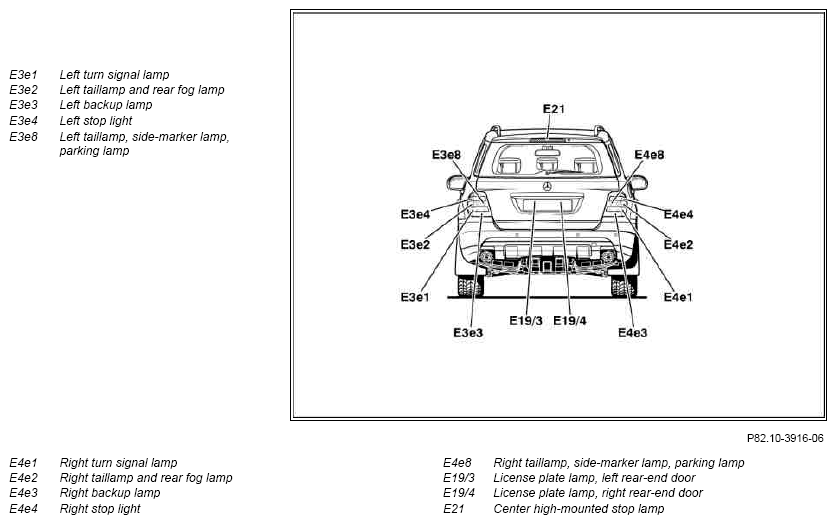

Location of rear lamps Model 164.1 without code (849) Spare tire holder/spare tire

Fig 5: Rear Lamps Components Location - Shown On Model 164.1

Courtesy of MERCEDES-BENZ USA

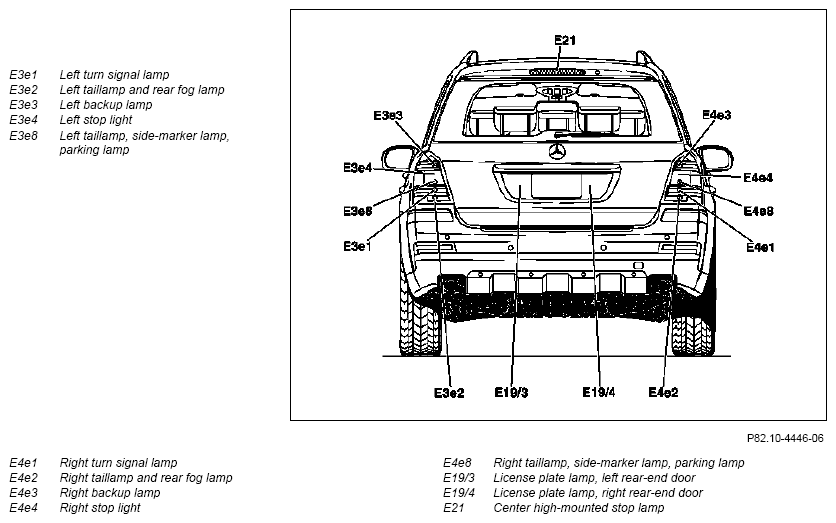

Location of rear lamps Model 164.8 without code (849) Spare tire holder/spare tire

Fig 6: Rear Lamps Components Location - Shown On Model 164.8

Courtesy of MERCEDES-BENZ USA

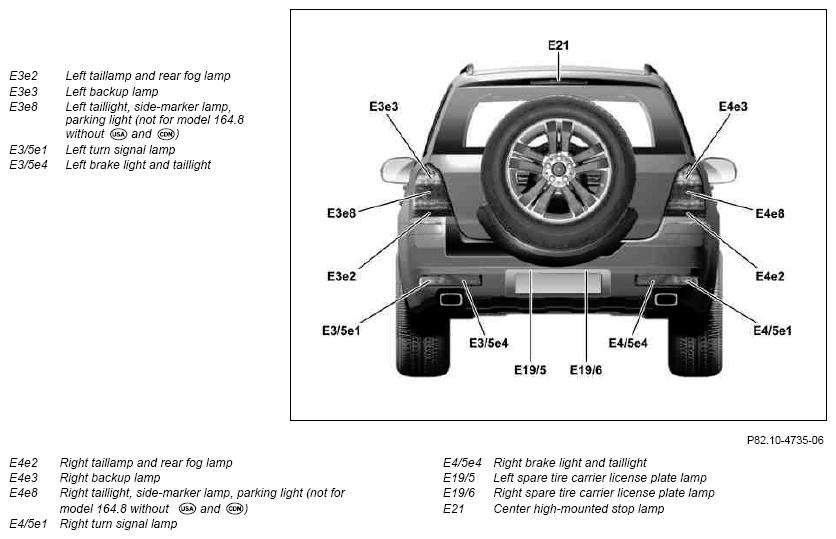

Location of rear lamps Shown on model 164.8 with code (849) Spare tire holder/spare tire

Fig 7: Rear Lamps Components Location - Shown On Model 164.8

Courtesy of MERCEDES-BENZ USA
