Exterior lights, location of components - GF82.10-P-0003-02GVA

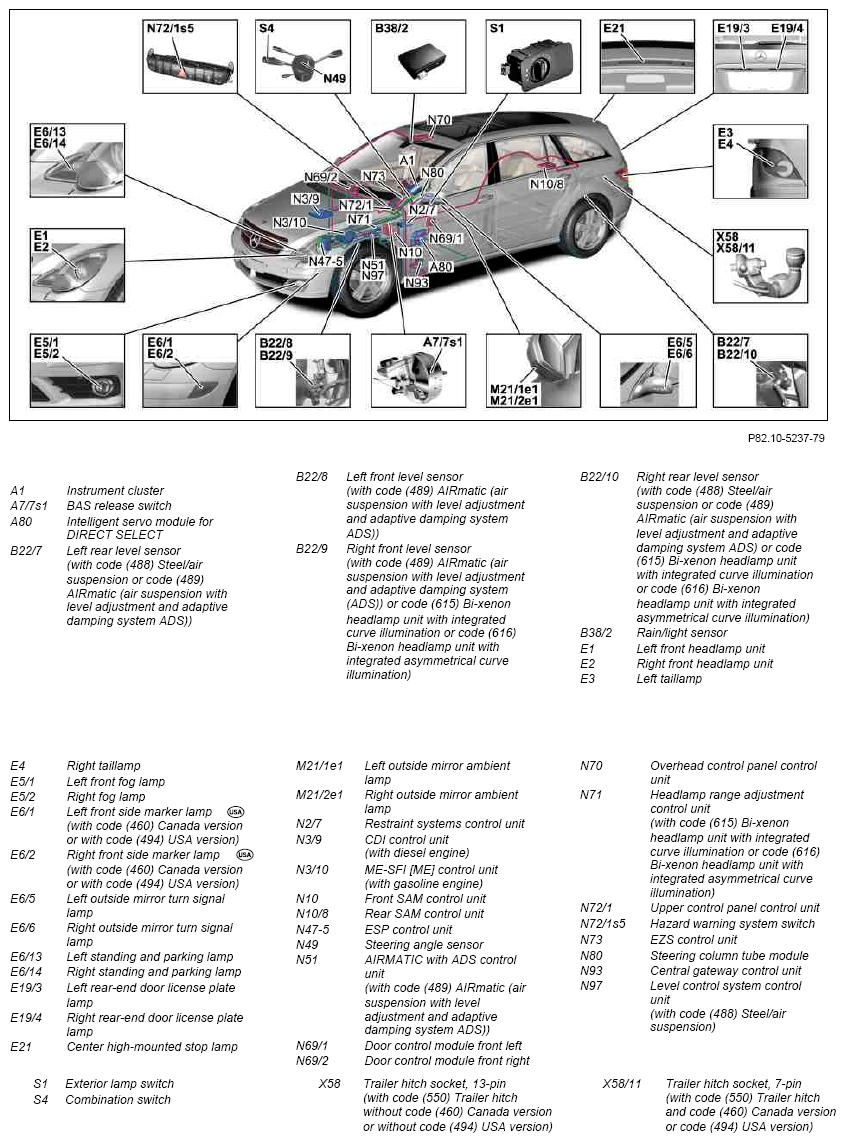

Fig 1: Exterior Lights Components Location - Shown On Model 251.1

Courtesy of MERCEDES-BENZ USA

Vehicles up to 31.7.10, Shown on model 251.1

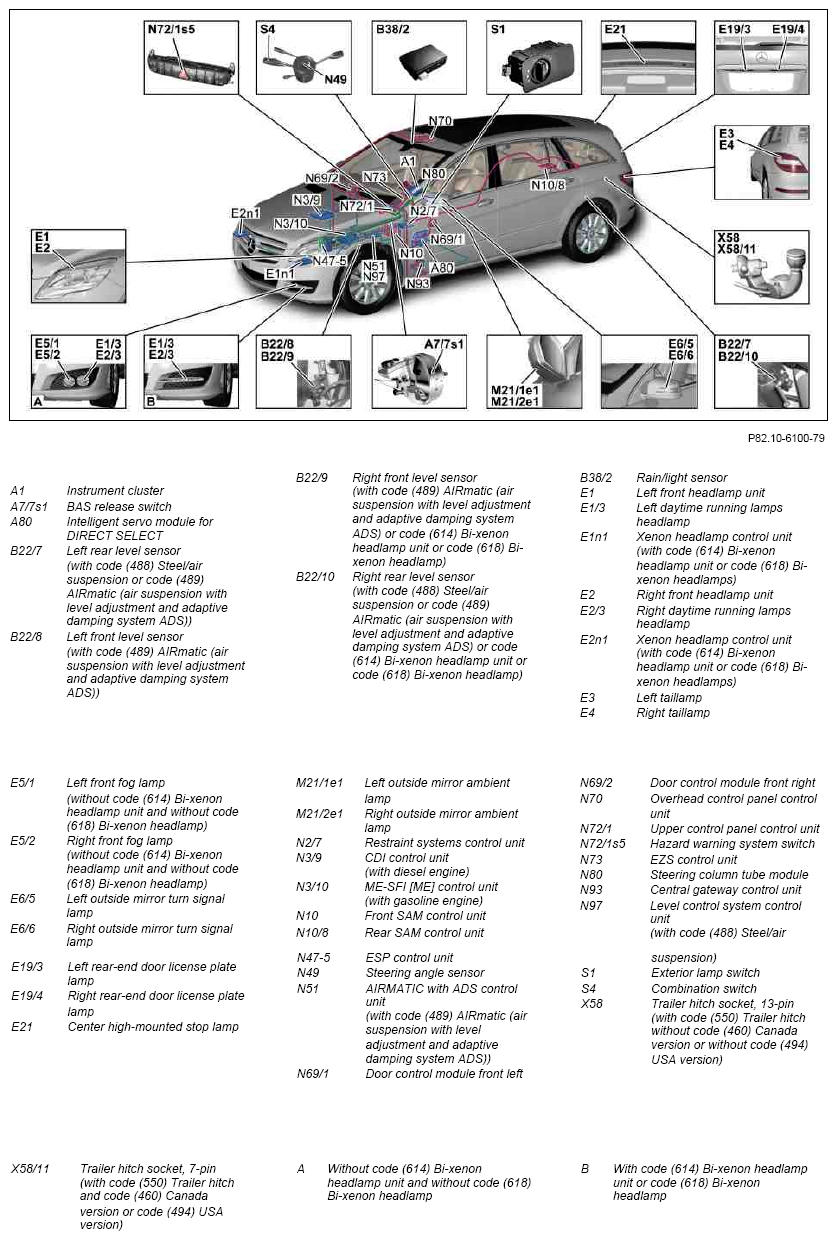

Fig 2: Exterior Lights Components Location - Shown On Model 251.1

Courtesy of MERCEDES-BENZ USA

Vehicles as of 1.8.10, shown on model 251.1
