Exterior lights, location of components - GF82.10-P-0003-02GMA

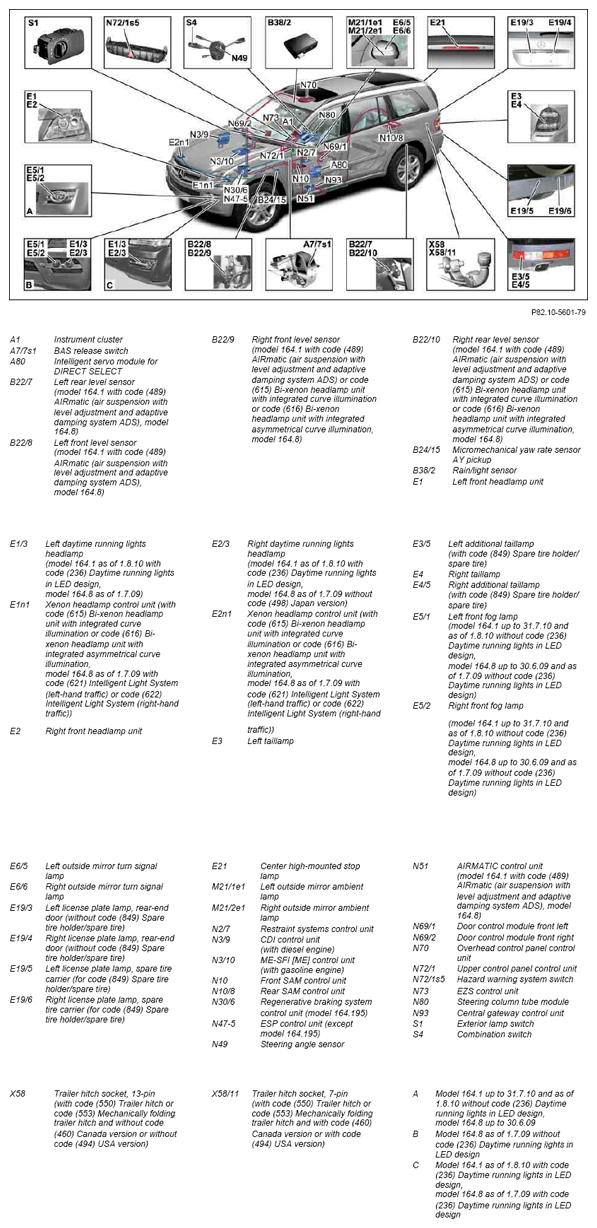

Fig 1: Exterior Lights Components Location - Shown On Model 164.8
G10118028Courtesy of MERCEDES-BENZ USA

Shown on model 164.8
