Block diagram for interior illumination (IBL) - GF82.20-P-0002-04GM

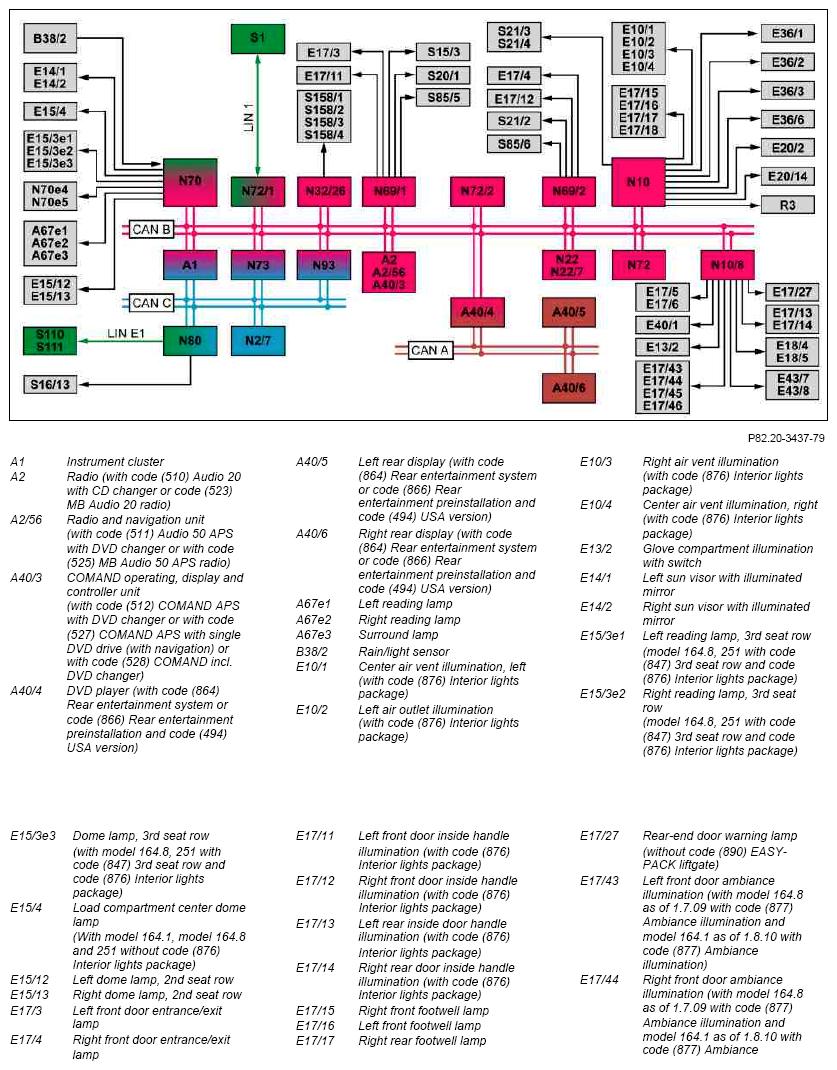

Fig 1: Interior Illumination Block Diagram
G10118081Courtesy of MERCEDES-BENZ USA

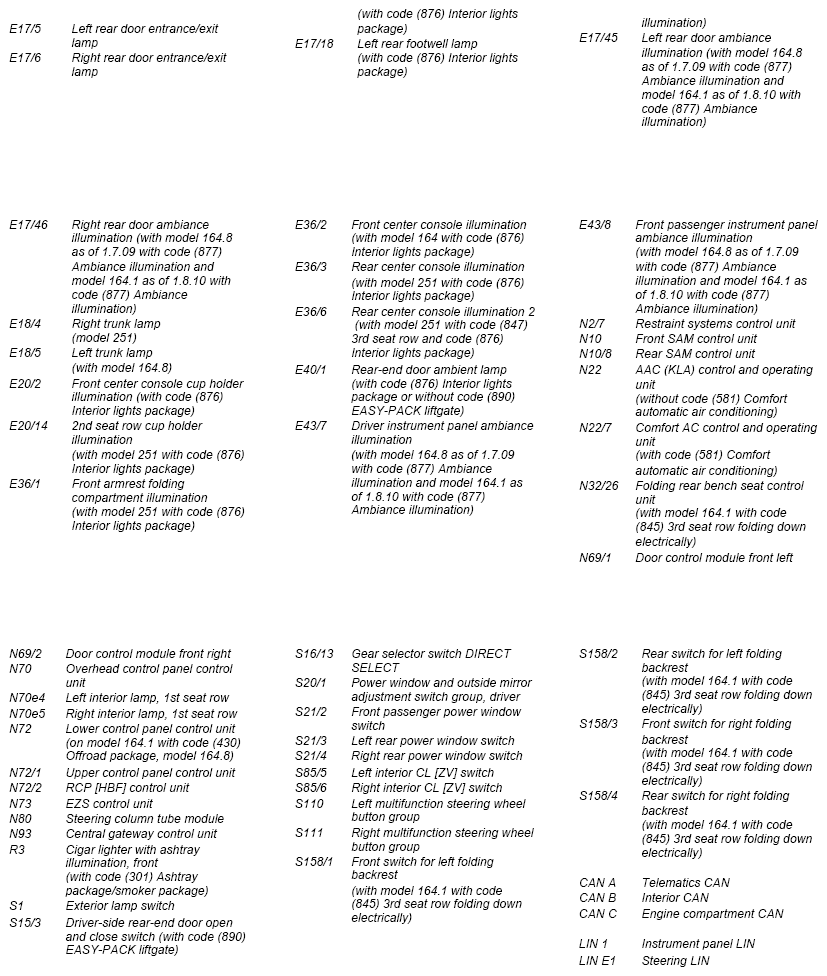

Fig 2: Interior Illumination Block Diagram
G10118082Courtesy of MERCEDES-BENZ USA
