Backup lamp actuation, function - GF82.10-P-3011GZ

MODEL 164.1/8 up to Model Year 2008

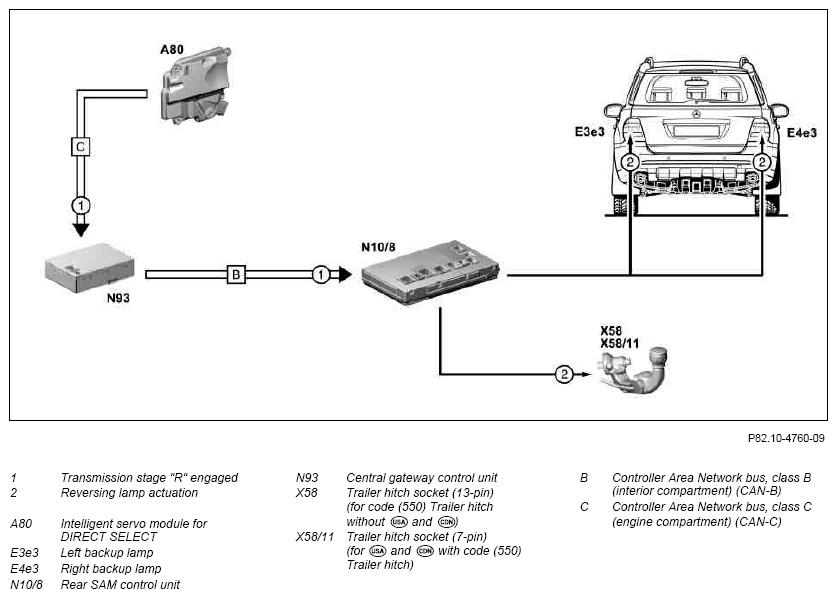

Fig 1: Backup Lamp Actuation Communication Diagram

Courtesy of MERCEDES-BENZ USA

Shown on model 164.1

Function preconditions

• Circuit 15 On
• Transmission stage "R" engaged

Function

The intelligent servo module for DIRECT SELECT transmits the position of the DIRECT SELECT gear selector switch (S16/13) to the central gateway control unit via CAN-C.

The central gateway control unit transmits this signal via CAN-B to the rear SAM control unit, which actuates the backup lamps. For code (550) Trailer hitch, the trailer backup lamp is also actuated.
