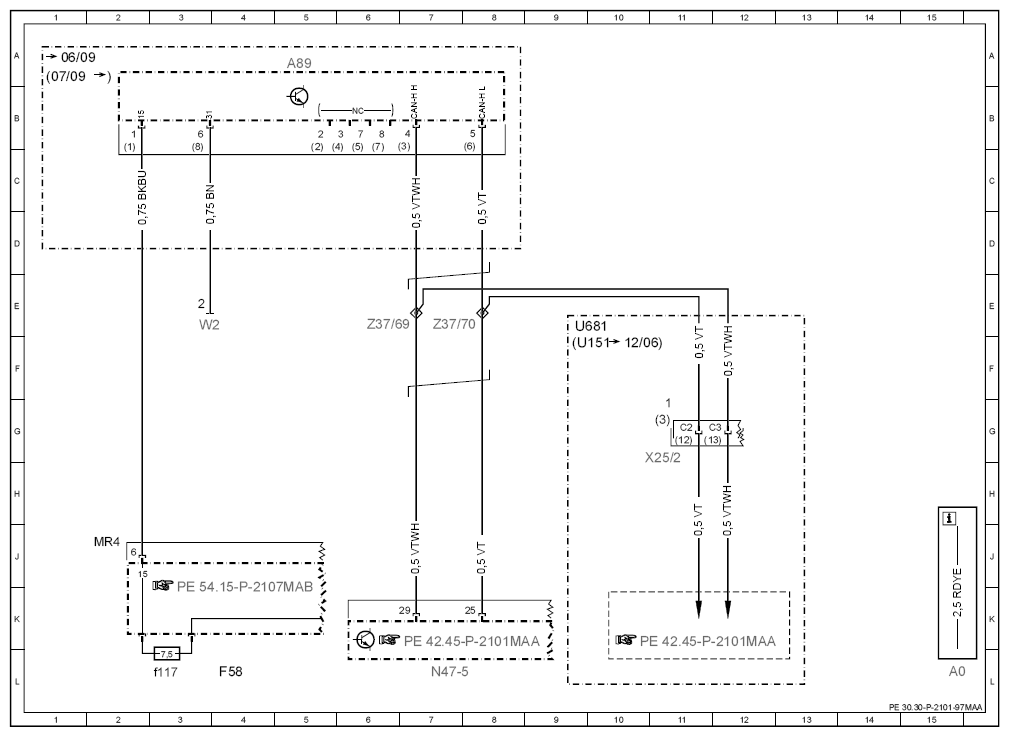

Wiring diagram for Distronic (DTR) control unit - PE30.30-P-2101-97MAA
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15J |
| A89 | DTR control unit | 5A |
| F58 | Engine compartment fuse and relay box | 4L |
| F58f117 | Fuse 117 | 3K |
| N47-5 | ESP control unit | 7L |
| U151 | Valid for engine 113 | 9F |
| U681 | Valid for all except M113 | 9E |
| W2 | Ground (right front, at lamp unit) | 3E |
| X25/2 | Engine compartment/interior compartment connector | 11H |
| Z37/69 | Dynamic CAN bus (high) connector sleeve | 6E |
| Z37/70 | Dynamic CAN bus (low) connector sleeve | 7E |
