Electrical function diagram for cruise control (CC) - PE30.30-U-2051-99MAA

Code: Designation: Position:
A1 Instrument cluster 15 H
A7/7 BAS brake booster 17 B
B37 Accelerator pedal sensor 3 C
B37 Accelerator pedal sensor 7 C
B37 Accelerator pedal sensor 11 B
L6/1 Left front wheel speed sensor 12 B
L6/2 Right front wheel speed sensor 12 B
L6/3 Left rear wheel speed sensor 12 B
L6/4 Right rear wheel speed sensor 12 C
M16/3 Front throttle valve actuator 3 B
M16/4 Rear throttle valve actuator 3 C
M16/6 Throttle valve actuator 7 B
M16/6 Throttle valve actuator 11 B
N10 Front SAM control unit 19 K
N3/10 ME-SFI [ME] control module 1 D
N3/10 ME-SFI [ME] control module 5 D
N3/10 ME-SFI [ME] control module 9 C
N3/9 CDI control module 9 C
N47-5 ESP control module 15 B
N72 Lower control field control module 21 C
N72/1 Upper control panel control module 21 E
N72/1s1 ESP OFF switch 23 F
N72s30 Downhill Speed Regulation switch 22 B
N80 Steering column module 6 H
N93 Central gateway control module 18 E
S12 Parking brake indicator switch 20 L
U127 Valid for engine 272, engine 273 KE 8 A
U151 Valid for engine 113 5 A
U152 Valid for engine 156 1 A
U552 Valid for offroad package 20 B
U880 Valid for engine 642 8 A
Y3/8 Electric control unit (VGS) 10 H

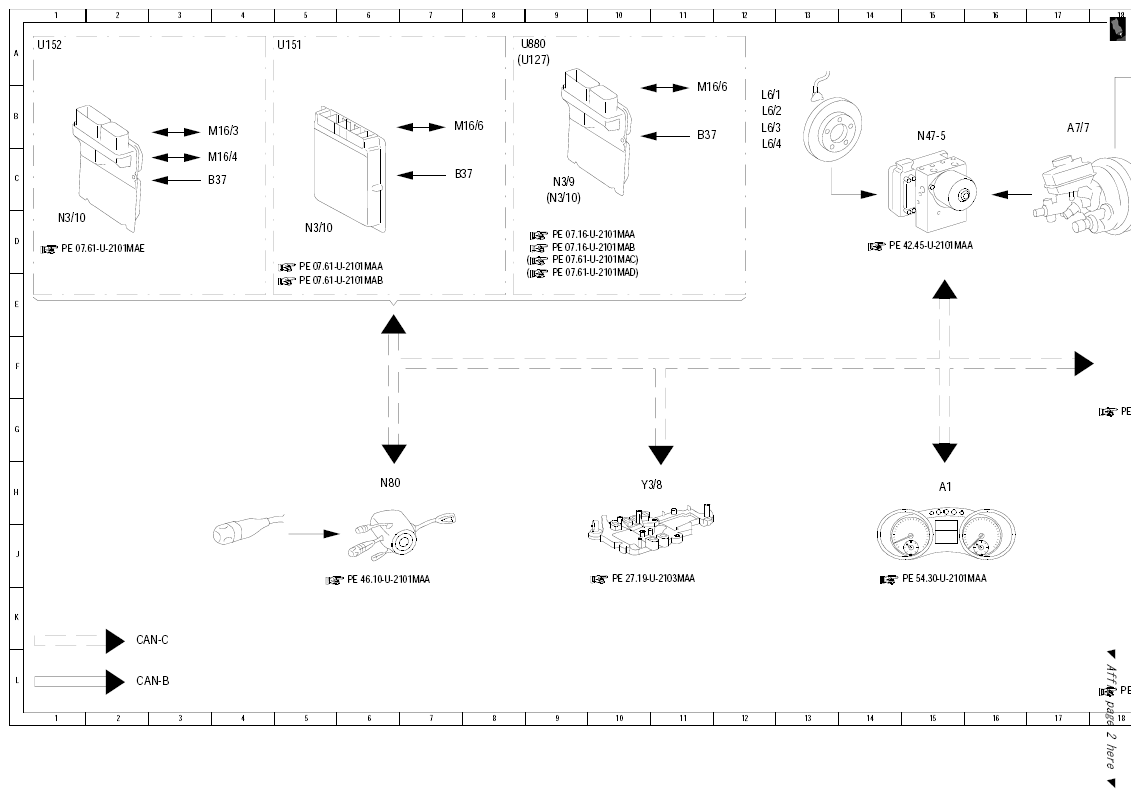

Fig 1: Cruise Control (CC) - Communication Diagram (1 Of 2)
G10116132Courtesy of MERCEDES-BENZ USA

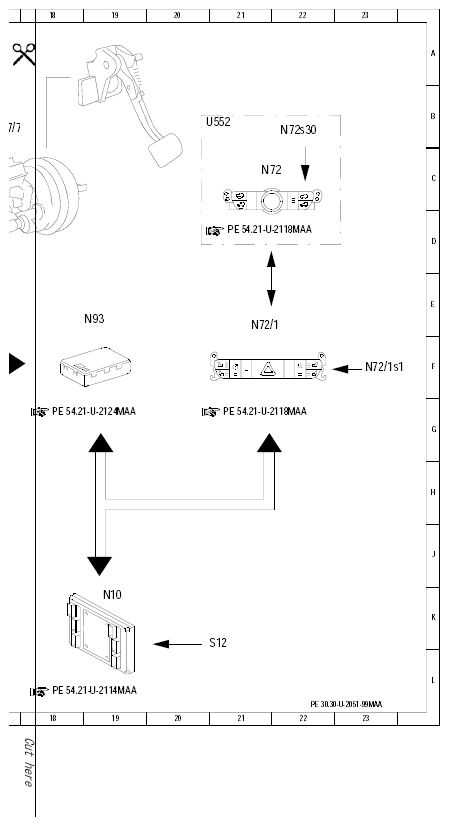

Fig 2: Cruise Control (CC) - Communication Diagram (2 Of 2)
G10116133Courtesy of MERCEDES-BENZ USA
