Remove/install front wheel hub - AR33.20-P-0310GX

MODEL 463.270 /271, 461.331 Joint housing removed

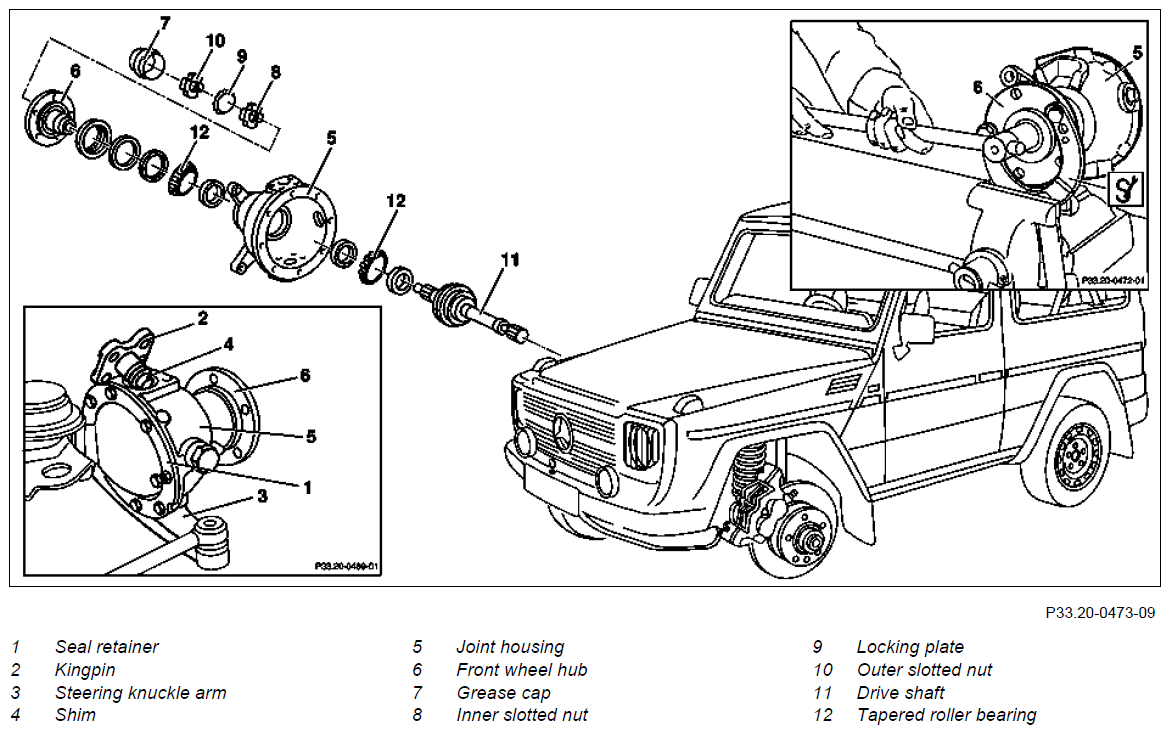

Fig 1: Identifying Front Wheel Hub Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Clamp front wheel hub (6) in vise with retainer wrench.	Retainer wrench	Figure
2	Remove drive shaft (11).		AR33.30-P-0100GX
3	Detach joint housing (5) from front wheel hub (6).
	Install
4	Attach joint housing (5) to front wheel hub (6).
5	Install drive shaft (11).		AR33.30-P-0100GX

Fig 2: Identifying Retainer Wrench (717 589 00 31 00)

Courtesy of MERCEDES-BENZ USA
