Recirculation pump, location/task - GF83.70-P-4003A
MODELS 129 as of 1.6.97 with CODE (228) Stationary heater
MODELS 203 up to 23.4.04, models 210, 215, 220, 230 with CODE (228) Stationary heater
MODELS 463 as of 1.6.94 with CODE (H12) Auxiliary heater Webasto Tele Thermo Top S
MODELS 209.3 up to 31.5.04 with CODE (228) Stationary heater
Models 129, 203, 209.3, 215, 220, 230

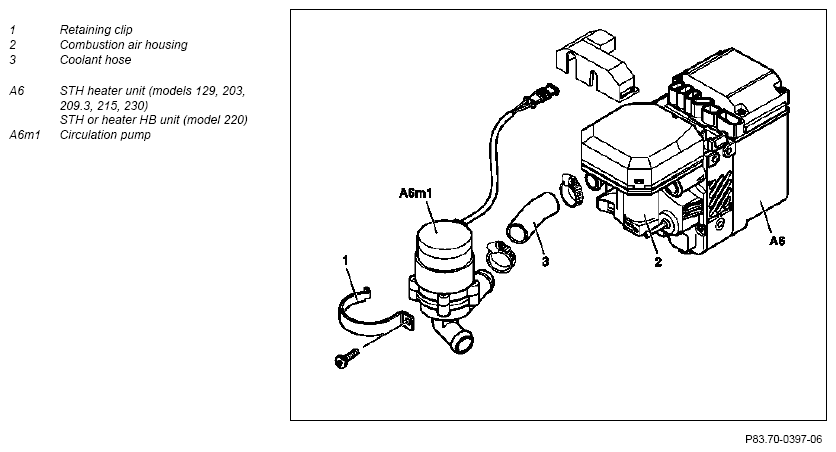

| Circulation pump, location | The circulation pump (A6m1) is secured to the combustion air housing (2) of the STH heater unit (A6) or the STH or HB heater unit (A6) with a retaining bracket (1) and connected directly to the coolant inlet via a coolant hose (3). | ||
| Model 210 with code (228) Stationary heater Model 463 as of 01.06.94 with code (H12) Webasto Tele Thermo Top S auxiliary heater | GF83.70-P-4003-01A | ||
| Circulation pump, task | The circulation pump (A6m1) ensures an independent, constant and rapid supply of coolant throughout all heater operation. |
