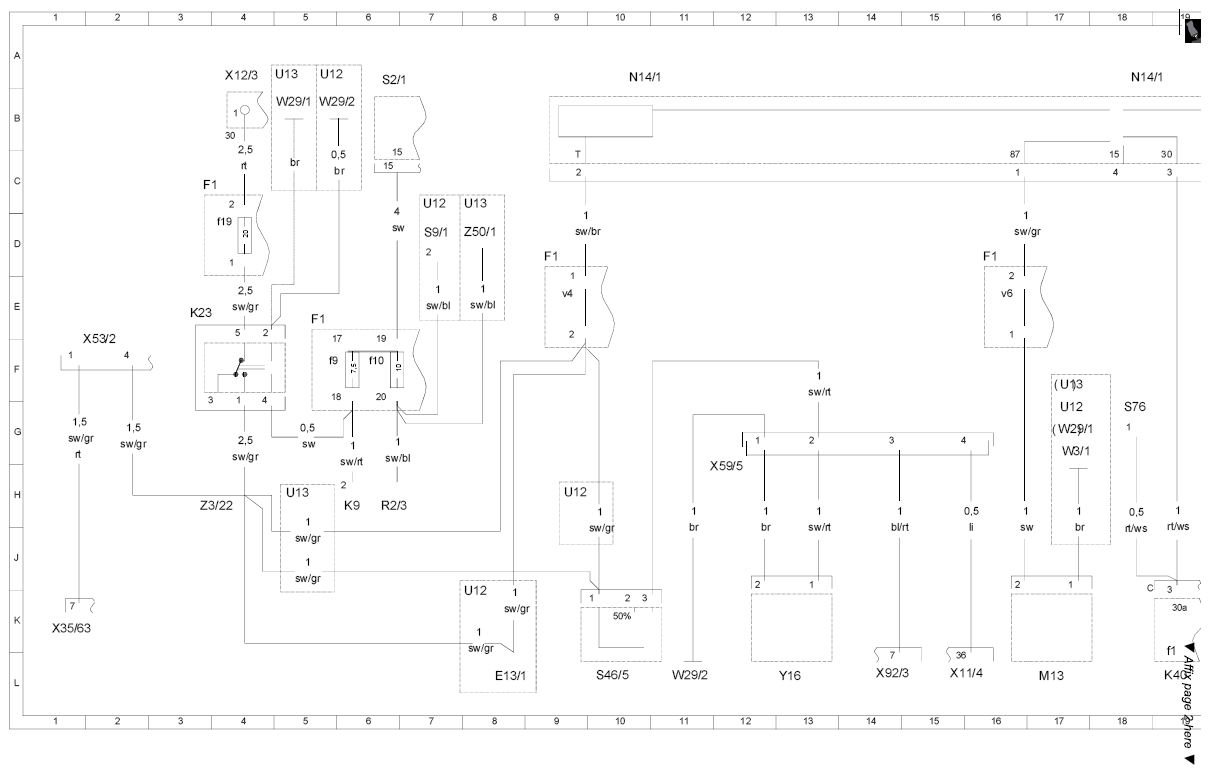

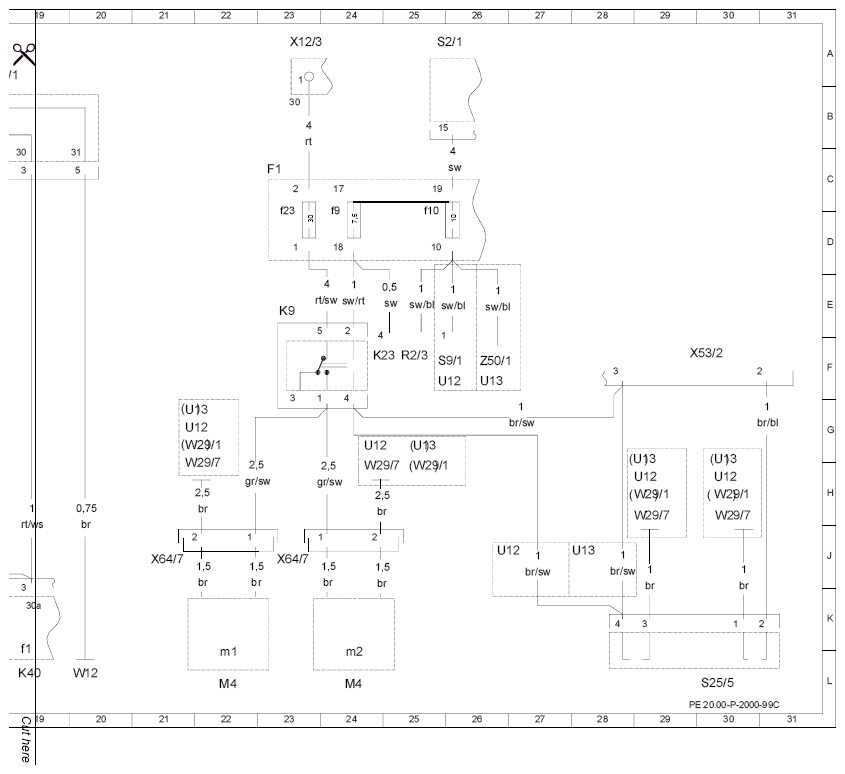

| E13/1 |
Glove compartment lamp |
8L |
| F1 |
Fuse box |
3C |
| F1 |
Fuse box |
5E |
| F1 |
Fuse box |
9D |
| F1 |
Fuse box |
16D |
| F1 |
Fuse box |
23C |
| K23 |
Blower motor relay |
3E |
| K23 |
Blower motor relay |
24F |
| K40 |
Relay module |
19L |
| K9 |
Additional fan relay (stage 1 and 2) |
6H |
| K9 |
Additional fan relay (stage 1 and 2) |
23E |
| M13 |
Coolant circulation pump |
17L |
| M4 |
Additional fan |
22L |
| M4 |
Additional fan |
24L |
| N14/1 |
Run-on cooling relay |
10B |
| N14/1 |
Run-on cooling relay |
18B |
| R2/3 |
Right washer nozzle heater |
6H |
| R2/3 |
Right washer nozzle heater |
25F |
| S2/1 |
Ignition/starter switch |
6B |
| S2/1 |
Ignition/starter switch |
25A |
| S25/5 |
105/115°C temperature switch, addition fan, stage 2/emergency cutout) |
30L |
| S46/5 |
Bypass microswitch (50%) |
10L |
| S76 |
Differential lock switch group |
18G |
| S9/1 |
Stop lamp switch |
7D |
| S9/1 |
Stop lamp switch |
25F |
| U12 |
Valid for left-hand drive vehicles |
5A |
| U12 |
Valid for left-hand drive vehicles |
7D |
| U12 |
Valid for left-hand drive vehicles |
8K |
| U12 |
Valid for left-hand drive vehicles |
9H |
| U12 |
Valid for left-hand drive vehicles |
17G |
| U12 |
Valid for left-hand drive vehicles |
21G |
| U12 |
Valid for left-hand drive vehicles |
24G |
| U12 |
Valid for left-hand drive vehicles |
25F |
| U12 |
Valid for left-hand drive vehicles |
26J |
| U12 |
Valid for left-hand drive vehicles |
28H |
| U12 |
Valid for left-hand drive vehicles |
30H |
| U13 |
Valid for right-hand drive vehicles |
4A |
| U13 |
Valid for right-hand drive vehicles |
5H |
| U13 |
Valid for right-hand drive vehicles |
8D |
| U13 |
Valid for right-hand drive vehicles |
17F |
| U13 |
Valid for right-hand drive vehicles |
21G |
| U13 |
Valid for right-hand drive vehicles |
25G |
| U13 |
Valid for right-hand drive vehicles |
26F |
| U13 |
Valid for right-hand drive vehicles |
28J |
| U13 |
Valid for right-hand drive vehicles |
28H |
| U13 |
Valid for right-hand drive vehicles |
30H |
| W12 |
Ground (center console) |
20L |
| W29/1 |
Ground (left A-pillar) |
5B |
| W29/1 |
Ground (left A-pillar) |
17G |
| W29/1 |
Ground (left A-pillar) |
21G |
| W29/1 |
Ground (left A-pillar) |
25H |
| W29/1 |
Ground (left A-pillar) |
28H |
| W29/1 |
Ground (left A-pillar) |
30H |
| W29/2 |
Ground (right A-pillar) |
5B |
| W29/2 |
Ground (right A-pillar) |
11L |
| W29/7 |
Ground (steering column) |
21H |
| W29/7 |
Ground (steering column) |
24H |
| W29/7 |
Ground (steering column) |
28J |
| W29/7 |
Ground (steering column) |
30J |
| W3/1 |
Ground (right front wheelhouse) |
17G |
| X11/4 |
Data link connector |
15L |
| X12/3 |
Circuit 30, 15, 61 terminal block (3-pin) |
4A |
| X12/3 |
Circuit 30, 15, 61 terminal block (3-pin) |
23A |
| X35/63 |
Control unit box/engine separation point |
1K |
| X53/2 |
Circuit 15 AC connector |
1F |
| X53/2 |
Circuit 15 AC connector |
29F |
| X59/5 |
Bypass connector (4-pin) |
11H |
| X64/7 |
Additional fan connector (2-pin) |
21J |
| X64/7 |
Additional fan connector (2-pin) |
23J |
| X92/3 |
Frame connector (22-pin) |
14L |
| Y16 |
Bypass solenoid valve |
13L |
| Z3/22 |
Circuit 15 (fused) connector sleeve (F1f9) |
3H |
| Z50/1 |
Connector sleeve 1 |
8D |
| Z50/1 |
Connector sleeve 1 |
26F |
