Remove/install stepped tandem master brake cylinder - AR42.10-P-0310GG

MODEL 460, 461

MODEL 463 except CODE (979) Special protection version

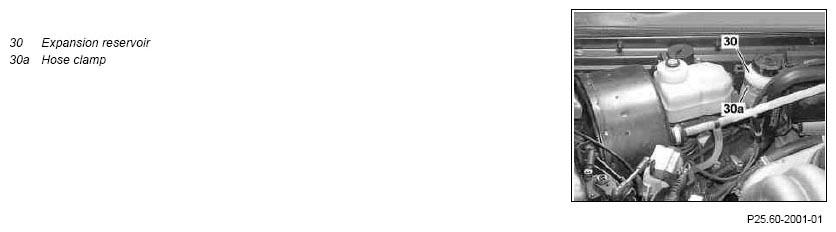

Fig 1: Identifying Stepped Tandem Master Brake Cylinder Remove/Install Components

Courtesy of MERCEDES-BENZ USA

Shown on model 460, 461

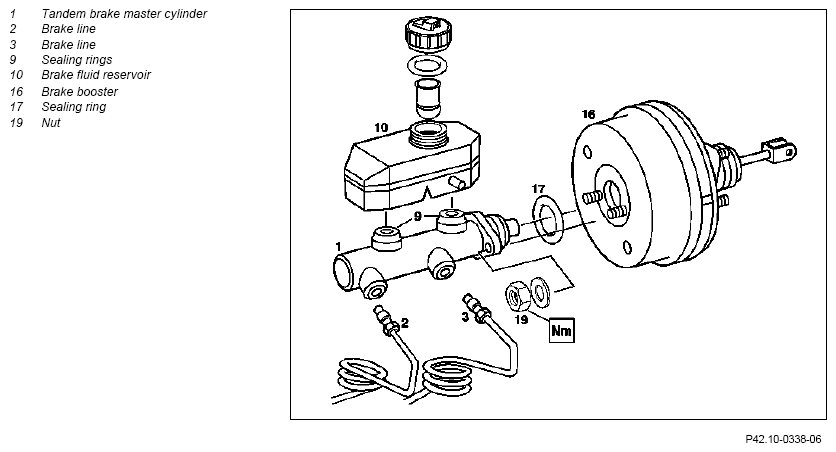

Fig 2: Identifying Stepped Tandem Master Brake Cylinder Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove/install
	Risk of poisoning  caused by swallowing brake fluid. Risk of injury  caused by brake fluid coming into contact with skin and eyes.	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Notes on externally invisible brake fluid loss		AH42.10-P-9406-02A
1	Switch off ignition	Model 461.305 /333 /340 /343
2	Push down brake pedal several times	In order to reduce the vacuum in the brake booster (16).
3	Remove brake fluid reservoir (10)	Replace seals (9).	AR42.10-P-0301GG
4	Remove expansion reservoir (30) of differential lock operating mechanism from wheel well	Model 460, 461 except model 461.302 /304 /305 /332 /333 /334 /340 /342 /343 /344 /345 /346 Release hose clamp (30a) and place expansion reservoir (30) with cables connected to one side.
5	Unscrew brake lines (2, 3) from tandem brake master cylinder (1).		*BA42.10-P-1003-04B
			Figure
			Figure
6	Detach electrical connector from traction system hydraulic unit (A7/3) and place to one side	Model 461.305 /333 /340 /343 In order to avoid damage and malfunctions, do not touch, deform or damage contacts of connector and jack! Do not allow any foreign objects, dirt fluids to enter the jack or connector!
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
7	Detach tandem brake master cylinder (1) from brake booster (16).	Always install new tandem brake master cylinder (1) if damaged. Pull out tandem brake master cylinder (1) straight forwards, otherwise the thrust rod is pressed out of its axial position and may break out of the retaining lugs in the master control unit. Installation:  Install new sealing rings (17) and nuts (19).
			*BA42.10-P-1001-05B
8	Install in the reverse order
9	Bleed brake system	Except model 463.270/271	AR42.10-P-0010GG
		Model 463.270/271	AR42.10-P-0010GX
	Checking
10	Check brake system for leaks		AR42.10-P-0100-01A
