Remove/install brake hoses at front axle - AR42.10-P-0024A
MODEL 463.270/ 271
Shown on the right-hand side
| Remove/install | |||
| Risk of poisoning caused by swallowing brake fluid. Risk of injury caused by brake fluid coming into contact with skin and eyes. | Pour brake fluid only into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| 1 | Remove wheels | ||
| Remove/install wheels, rotate if necessary | AP40.10-P-4050G | ||
| 2 | Detach brake line (1) from brake hoses (2, 4). | ||
| *BA42.10-P-1001-04B | |||
| Brake fluid notes | All models | AH42.50-P-0001-01A | |
| Notes on repairs to brake system | All models | AH42.00-P-0003-01A | |

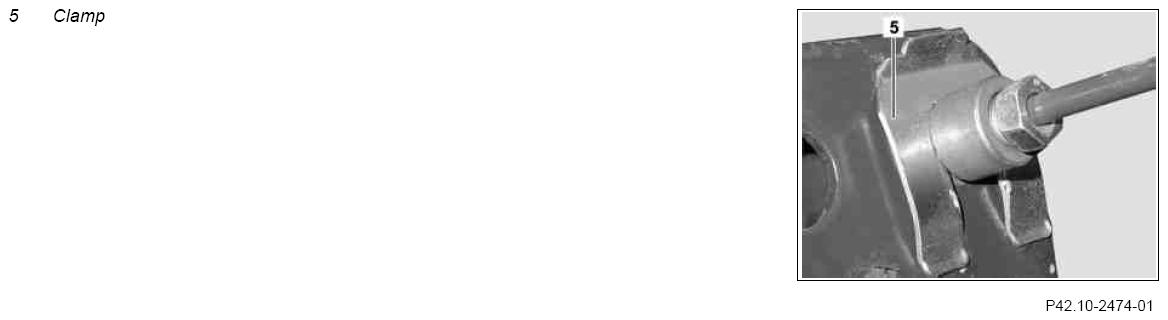

| 3 | Detach clamps (5) from brake hoses (2, 4). | ||
| 4 | Detach brake hose (4) at floating brake caliper. | ||
| *BA42.10-P-1006-04B | |||
| Brake fluid notes | All models | AH42.50-P-0001-01A | |
| Notes on repairs to brake system | All models | AH42.00-P-0003-01A | |
| 5 | Detach brake hose (2) at vehicle frame. | ||
| *BA42.10-P-1001-04B | |||
| Brake fluid notes | All models | AH42.50-P-0001-01A | |
| Notes on repairs to brake system | All models | AH42.00-P-0003-01A | |

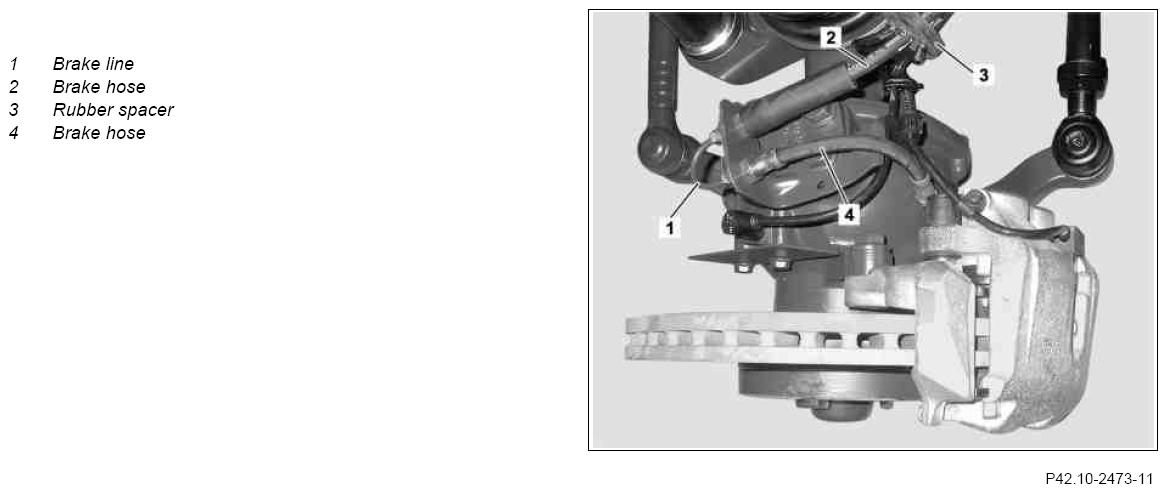

| 6 | Seal brake line at vehicle frame using stop plugs. | Figure | |
| 7 | Pull brake hose (2) out of three rubber spacers (3). | ||
| 8 | Install in the reverse order | ||
| 9 | Bleed brake system | AR42.10-P-0010GX |
BRAKE LINES, BRAKE HOSES
| Number | Designation | Model 463.270/271 | |
|---|---|---|---|
| BA42.10-P-1001-04B | Brake line to brake hose | Nm | 15 |
| BA42.10-P-1006-04B | Brake hose to front axle floating brake caliper | Nm | 24 |
