Overview of system components of parking assistance systems - GF54.00-P-9997FQM
MODEL 218 as of model year 2015 with CODE 218 (Rear view camera)
MODEL 218 as of model year 2015 with CODE 235 (Active Park Assist)
MODEL 218 as of model year 2015 with CODE 501 (360 degree camera)

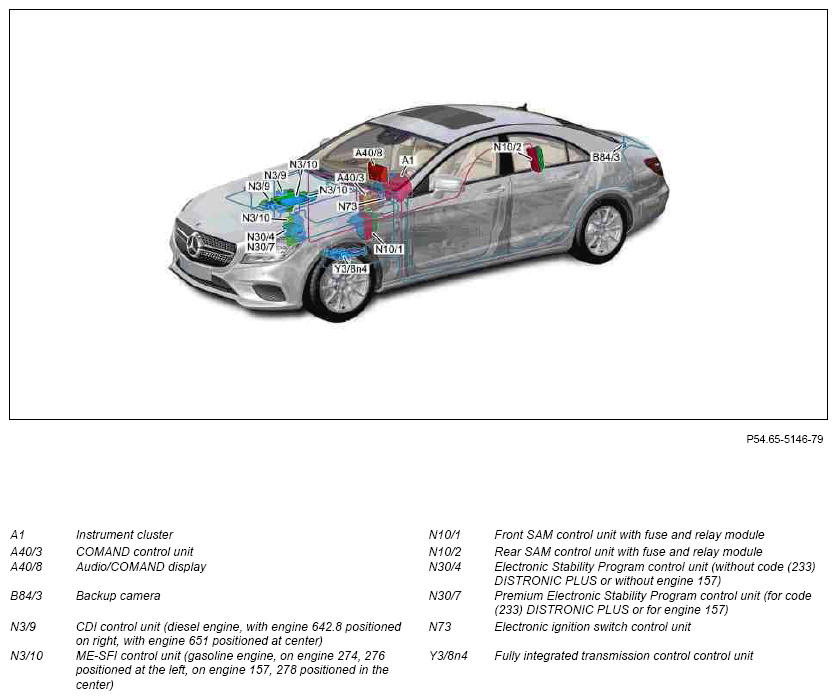

Reversing camera (with code (218) Reversing camera); shown is model 218.3
The following control unit installed in model 218.9 in combination with code (550) Trailer hitch is not shown:
- Trailer recognition control unit (N28/1)

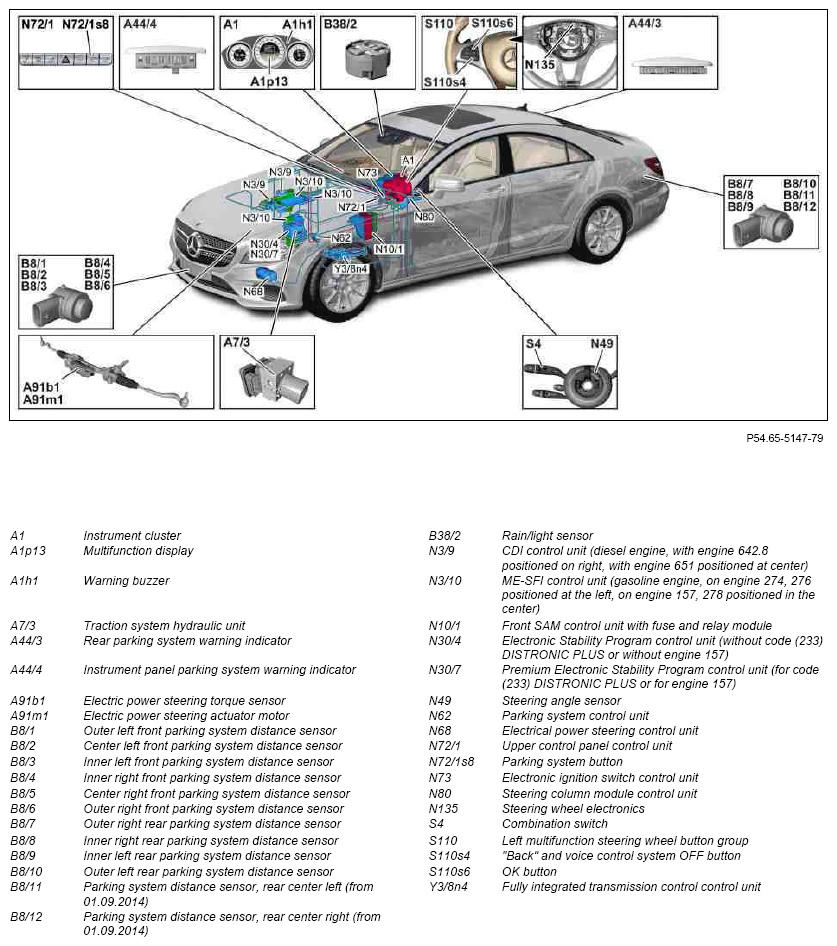

Parking system (with code (235) Active Parking Assist); shown is model 218.3
The following control unit installed in model 218.9 in combination with code (550) Trailer hitch is not shown:
- Trailer recognition control unit (N28/1)

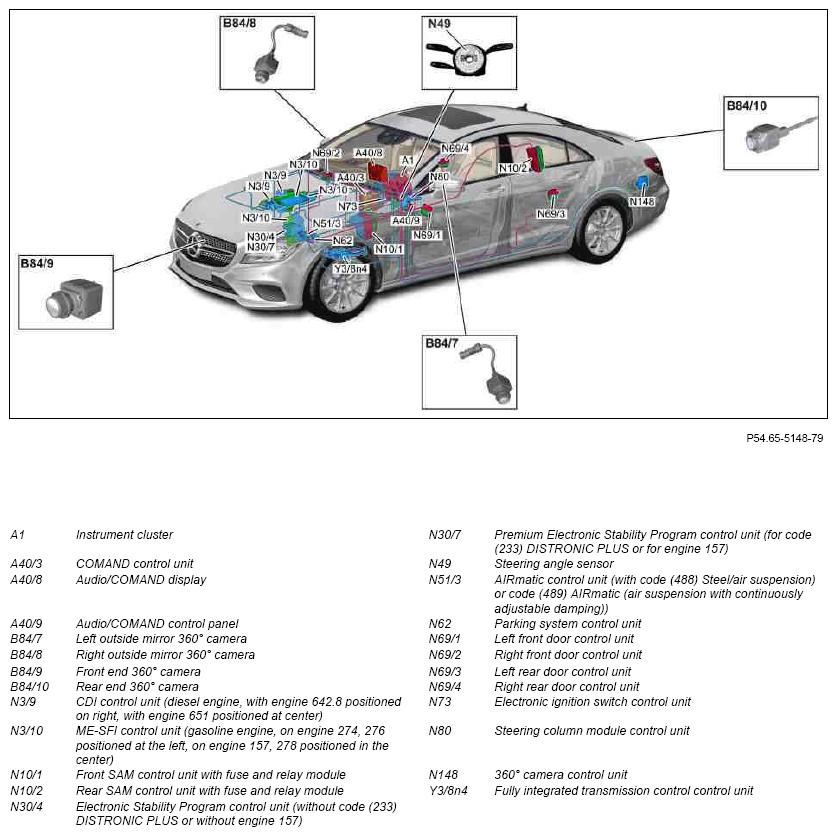

360° camera (with code (501) 360 degree camera); shown is model 218.3
| Component description for instrument cluster | A1 | GF54.30-P-6000FQ |
| Component description for COMAND controller unit | MODEL 218 as of model year 2015 with CODE 218 (Rear view camera) with CODE 531 (COMAND APS) MODEL 218 as of model year 2015 with CODE 235 (Active Park Assist) with CODE 531 (COMAND APS) MODEL 218 as of model year 2015 with CODE 501 (360 degree camera) with CODE 531 (COMAND APS) A40/3 |
GF82.85-P-3136FQM |
| Component description for Audio/COMAND display | MODEL 218 as of model year 2015 with CODE 218 (Rear view camera) with CODE 505 (Radio 20 NTG5, not navigation-enabled) MODEL 218 as of model year 2015 with CODE 218 (Rear view camera) with CODE 522 (Audio 20 radio) MODEL 218 as of model year 2015 with CODE 218 (Rear view camera) with CODE 531 (COMAND APS) MODEL 218 as of model year 2015 with CODE 235 (Active Park Assist) with CODE 505 (Radio 20 NTG5, not navigation-enabled) MODEL 218 as of model year 2015 with CODE 235 (Active Park Assist) with CODE 522 (Audio 20 radio) MODEL 218 as of model year 2015 with CODE 235 (Active Park Assist) with CODE 531 (COMAND APS) MODEL 218 as of model year 2015 with CODE 501 (360 degree camera) with CODE 505 (Radio 20 NTG5, not navigation-enabled) MODEL 218 as of model year 2015 with CODE 501 (360 degree camera) with CODE 522 (Audio 20 radio) MODEL 218 as of model year 2015 with CODE 501 (360 degree camera) with CODE 531 (COMAND APS) A40/8 |
GF54.30-P-6150FQM |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501FQ |
| Component description for CDI control unit | MODEL 218 with ENGINE 642.8 as of model year 2015 with CODE 218 (Rear view camera) MODEL 218 with ENGINE 642.8 as of model year 2015 with CODE 235 (Active Park Assist) MODEL 218 with ENGINE 642.8 as of model year 2015 with CODE 501 (360 degree camera) N3/9 |
GF07.16-P-6000OG |
| MODEL 218 with ENGINE 651.9 as of model year 2015 with CODE 218 (Rear view camera) MODEL 218 with ENGINE 651.9 as of model year 2015 with CODE 235 (Active Park Assist) MODEL 218 with ENGINE 651.9 as of model year 2015 with CODE 501 (360 degree camera) N3/9 |
GF07.16-P-6000OM | |
| Component description for ME-SFI (ME) control unit | MODEL 218 with ENGINE 274.9 as of model year 2015 with CODE 218 (Rear view camera) MODEL 218 with ENGINE 274.9 as of model year 2015 with CODE 235 (Active Park Assist) MODEL 218 with ENGINE 274.9 as of model year 2015 with CODE 501 (360 degree camera) N3/10 |
GF07.61-P-6000MRB |
| MODEL 218 with ENGINE 276.8 as of model year 2015 with CODE 218 (Rear view camera) MODEL 218 with ENGINE 276.8 as of model year 2015 with CODE 235 (Active Park Assist) MODEL 218 with ENGINE 276.8 as of model year 2015 with CODE 501 (360 degree camera) N3/10 |
GF07.61-P-6000MMP | |
| MODEL 218 with ENGINE 276.9 as of model year 2015 with CODE 218 (Rear view camera) MODEL 218 with ENGINE 276.9 as of model year 2015 with CODE 235 (Active Park Assist) MODEL 218 with ENGINE 276.9 as of model year 2015 with CODE 501 (360 degree camera) N3/10 |
GF07.61-P-6000MM | |
| MODEL 218 with ENGINE 157.9 as of model year 2015 with CODE 218 (Rear view camera) MODEL 218 with ENGINE 157.9 as of model year 2015 with CODE 235 (Active Park Assist) MODEL 218 with ENGINE 157.9 as of model year 2015 with CODE 501 (360 degree camera) MODEL 218 with ENGINE 278.9 as of model year 2015 with CODE 218 (Rear view camera) MODEL 218 with ENGINE 278.9 as of model year 2015 with CODE 235 (Active Park Assist) MODEL 218 with ENGINE 278.9 as of model year 2015 with CODE 501 (360 degree camera) N3/10 |
GF07.61-P-6000MMA | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FQ |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FQ |
| Component description for trailer recognition control unit | MODEL 218.9 as of model year 2015 with CODE 218 (Rear view camera) with CODE 550 (Trailer coupling) MODEL 218.9 as of model year 2015 with CODE 235 (Active Park Assist) with CODE 550 (Trailer coupling) MODEL 218.9 as of model year 2015 with CODE 501 (360 degree camera) with CODE 550 (Trailer coupling) N28/1 |
GF31.19-P-4050FQ |
| Component description for Electronic Stability Program control unit | N30/4, N30/7 | GF42.45-P-5119FQA |
| AIRmatic control unit, component description | MODEL 218 as of model year 2015 with CODE 218 (Rear view camera) with CODE 488 (Steel/air suspension) without CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) MODEL 218 as of model year 2015 with CODE 218 (Rear view camera) with CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) without CODE 488 (Steel/air suspension) MODEL 218 as of model year 2015 with CODE 235 (Active Park Assist) with CODE 488 (Steel/air suspension) without CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) MODEL 218 as of model year 2015 with CODE 235 (Active Park Assist) with CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) without CODE 488 (Steel/air suspension) MODEL 218 as of model year 2015 with CODE 488 (Steel/air suspension) with CODE 501 (360 degree camera) without CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) MODEL 218 as of model year 2015 with CODE 489 (AIRMATIC (air suspension with continuous damper adjustment)) with CODE 501 (360 degree camera) without CODE 488 (Steel/air suspension) N51/3 |
GF32.22-P-5109FQA |
| Parking system control unit component description | MODEL 218 as of model year 2015 with CODE 235 (Active Park Assist) N62 |
GF54.65-P-5002FQM |
| Electrical power steering control unit (ES), component description | N68 | GF46.35-P-7010FQA |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001FQ |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009FQ |
| Component description for rear door control unit | N69/3, N69/4 | GF72.29-P-6021FQ |
| Upper control panel control unit, component description | N72/1 | GF54.21-P-6040FQ |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FQ |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051FQ |
| Component description for tire pressure monitor control unit | MODEL 218 as of model year 2015 with CODE 218 (Rear view camera) with CODE 475 (Tire pressure monitor (premium)) Schrader MODEL 218 as of model year 2015 with CODE 235 (Active Park Assist) with CODE 475 (Tire pressure monitor (premium)) Schrader MODEL 218 as of model year 2015 with CODE 475 (Tire pressure monitor (premium)) with CODE 501 (360 degree camera) Schrader N88 |
GF40.15-P-5124FQA |
| Component description for 360 degree viewing system control unit | MODEL 218 as of model year 2015 with CODE 501 (360 degree camera) N148 |
GF54.65-P-5003FQM |
| Component description for fully integrated transmission control unit | MODEL 218 with TRANSMISSION 722.9 (except 722.931) as of model year 2015 with CODE 218 (Rear view camera) MODEL 218 with TRANSMISSION 722.9 (except 722.931) as of model year 2015 with CODE 235 (Active Park Assist) MODEL 218 with TRANSMISSION 722.9 (except 722.931) as of model year 2015 with CODE 501 (360 degree camera) Y38n4 |
GF27.60-P-5165AHQ |
| MODEL 218 with TRANSMISSION 722.931 as of model year 2015 with CODE 218 (Rear view camera) MODEL 218 with TRANSMISSION 722.931 as of model year 2015 with CODE 235 (Active Park Assist) MODEL 218 with TRANSMISSION 722.931 as of model year 2015 with CODE 501 (360 degree camera) Y38n4 |
GF27.60-P-5165AHR | |
| MODEL 218 with TRANSMISSION 725.0 as of model year 2015 with CODE 218 (Rear view camera) MODEL 218 with TRANSMISSION 725.0 as of model year 2015 with CODE 235 (Active Park Assist) MODEL 218 with TRANSMISSION 725.0 as of model year 2015 with CODE 501 (360 degree camera) Y38n4 |
GF27.60-P-5165ANB | |
| Table of contents for function description of parking assistance systems | GF54.00-P-0997FQM |
