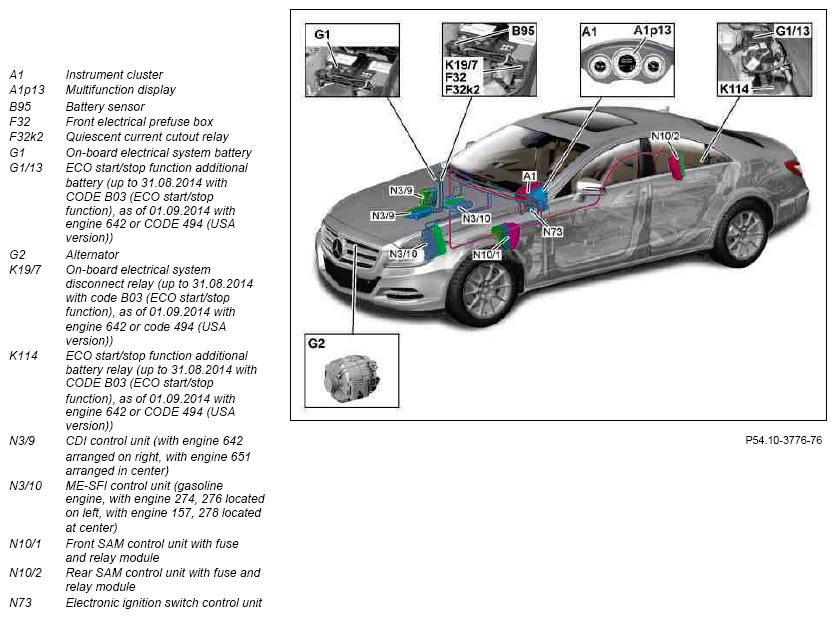

Overview of energy management system components - GF54.10-P-9990FQ
MODEL 218
Shows model 218.3
The following components are not shown:
- Additional battery (G1/7) (as of 01.09.2014 vehicles without engine 642 and without CODE 494 (USA version))
- Voltage dip limiter (R62) (as of 01.09.2014 vehicles without engine 642 and without CODE 494 (USA version))
| Component description for instrument cluster | A1 | GF54.30-P-6000FQ |
| Component description for CDI control unit | MODEL 218 with ENGINE 642.8 N3/9 |
GF07.16-P-6000OG |
| MODEL 218 with ENGINE 651.9 N3/9 |
GF07.16-P-6000OM | |
| Component description for ME-SFI (ME) control unit | MODEL 218 with ENGINE 274.9 N3/10 |
GF07.61-P-6000MRB |
| MODEL 218 with ENGINE 276.8 as of model year 2015 N3/10 |
GF07.61-P-6000MMP | |
| MODEL 218 with ENGINE 276.9 N3/10 |
GF07.61-P-6000MM | |
| MODEL 218 with ENGINE 157.9 MODEL 218 with ENGINE 278.9 N3/10 |
GF07.61-P-6000MMA | |
| Component description for front SAM control unit with fuse and relay module | N10/1 | GF54.21-P-6070FQ |
| Component description for rear SAM control unit with fuse and relay module | N10/2 | GF54.21-P-6030FQ |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001FQ |
| Table of contents for function description of energy management | GF54.10-P-0990FQ |
