| A0 |
Color code key |
48L |
| A1 |
Instrument cluster |
22L |

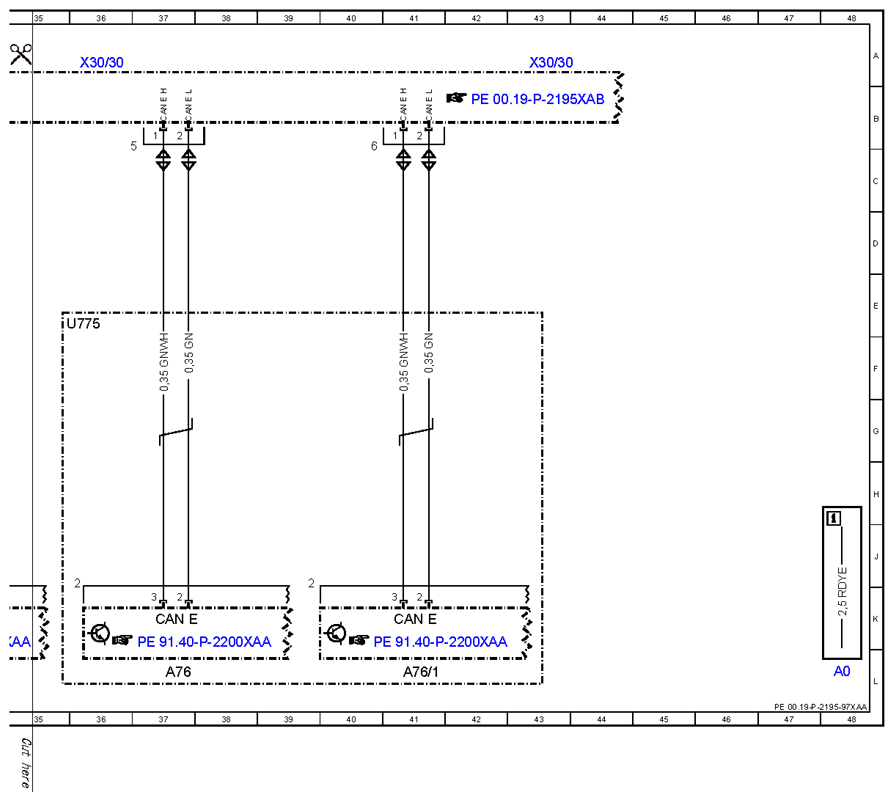

| A76 |
Left front reversible emergency tensioning retractor |
37L |
| A76/1 |
Right front reversible emergency tensioning retractor |
41L |
| CAN E |
Chassis CAN |
3K |
| CAN E |
Chassis CAN |
22K |
| CAN E |
Chassis CAN |
26K |
| CAN E |
Chassis CAN |
30K |
| CAN E |
Chassis CAN |
33K |
| CAN E |
Chassis CAN |
37K |
| CAN E |
Chassis CAN |
41K |
| CAN E |
Chassis CAN |
18K |
| CAN E |
Chassis CAN |
7K |
| CAN E |
Chassis CAN |
15K |

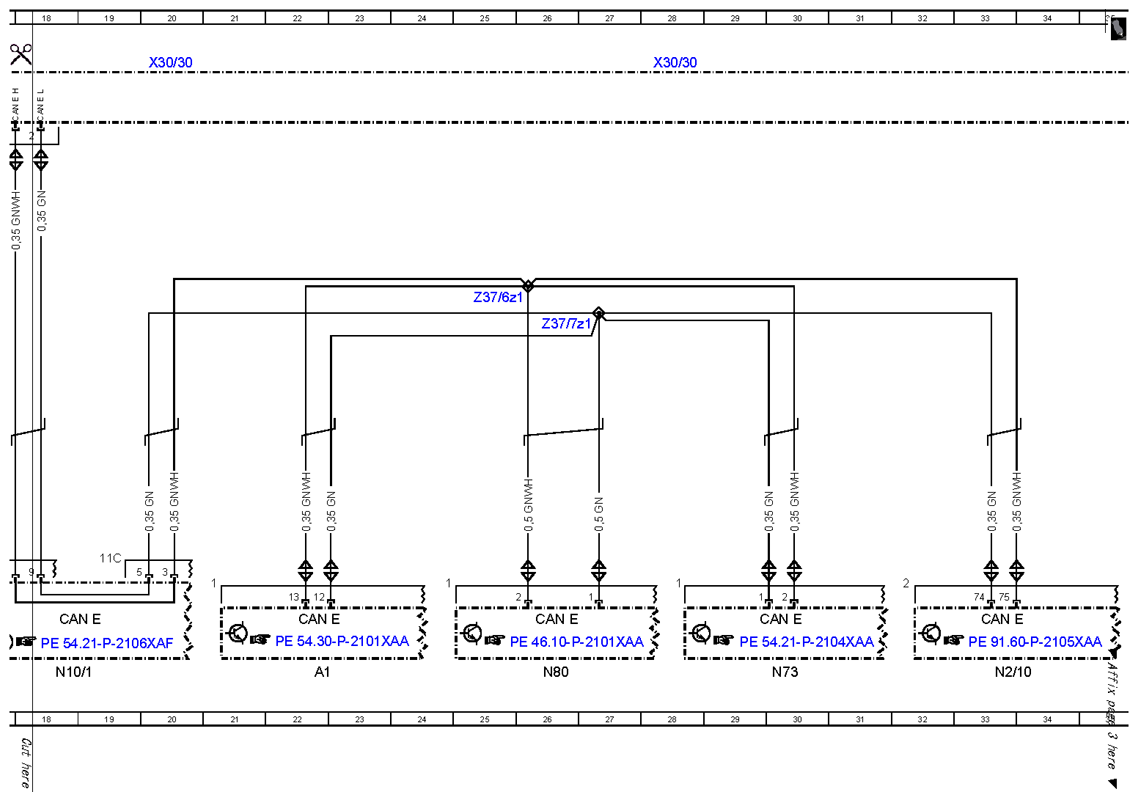

| N10/1 |
Front SAM control unit with fuse and relay module |
18L |
| N10/1 |
Front SAM control unit with fuse and relay module |
7L |
| N2/10 |
Supplemental restraint system control unit |
33L |
| N3/10 |
ME-SFI [ME] control unit |
11L |
| N3/9 |
CDI control unit |
15L |

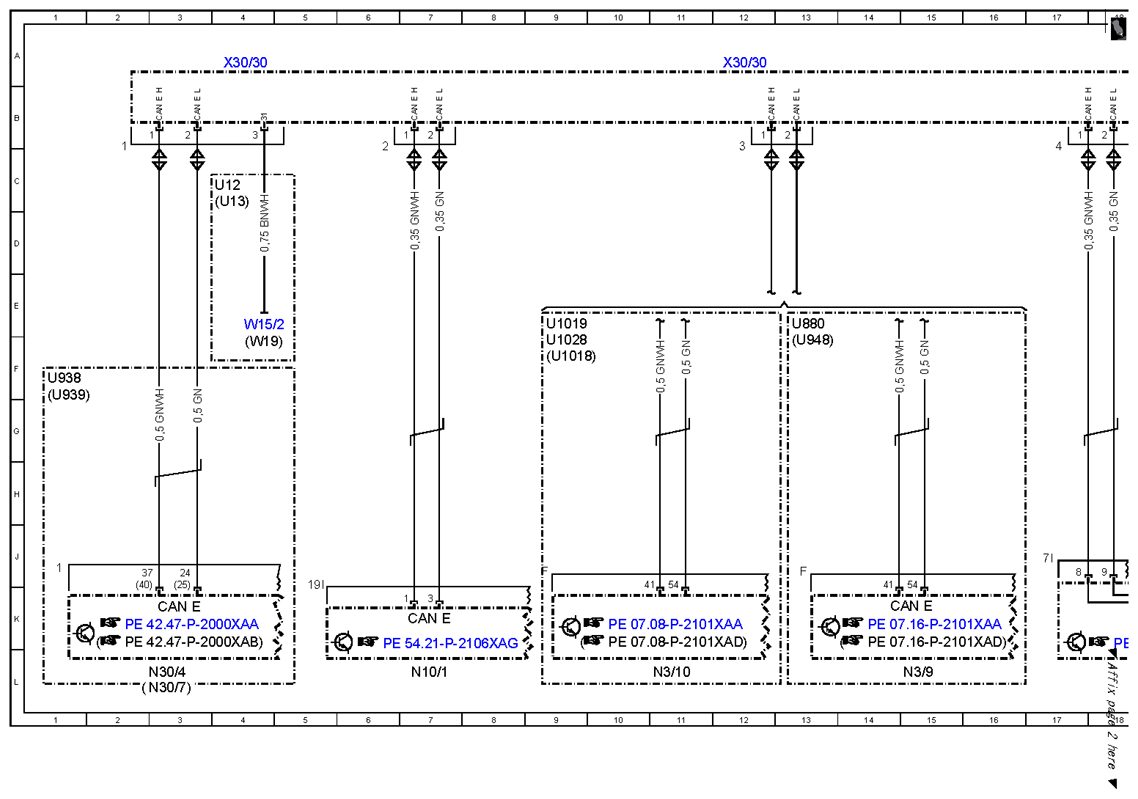

| N30/4 |
Electronic Stability Program control unit |
3L |
| N30/7 |
Premium Electronic Stability Program control unit |
3L |
| N73 |
Electronic ignition switch control unit |
30L |
| N80 |
Steering column module control unit |
26L |
| U1018 |
Valid for gasoline engine 276 |
9F |
| U1019 |
Valid for gasoline engine 278 |
9E |
| U1028 |
Valid for engine 157 |
9F |
| U12 |
Valid for left-hand drive vehicles |
4C |
| U13 |
Valid for right-hand drive vehicles |
4C |
| U775 |
Valid for emergency tensioning retractor |
35E |
| U880 |
Valid for diesel engine 642 |
13E |
| U938 |
Valid for ESP Basic |
1F |
| U939 |
Valid for ESP Premium |
1F |
| U948 |
Valid for diesel engine 651 |
13F |
| W15/2 |
Left footwell ground point |
4E |
| W19 |
Right front seat crossmember ground point |
4E |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
4A |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
28A |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
36A |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
12A |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
20A |
| X30/30 |
Vehicle floor chassis CAN voltage distributor electrical connector |
43A |
| Z37/6z1 |
Chassis CAN (high) connector sleeve |
25E |
| Z37/7z1 |
Chassis CAN (low) connector sleeve |
26E |
