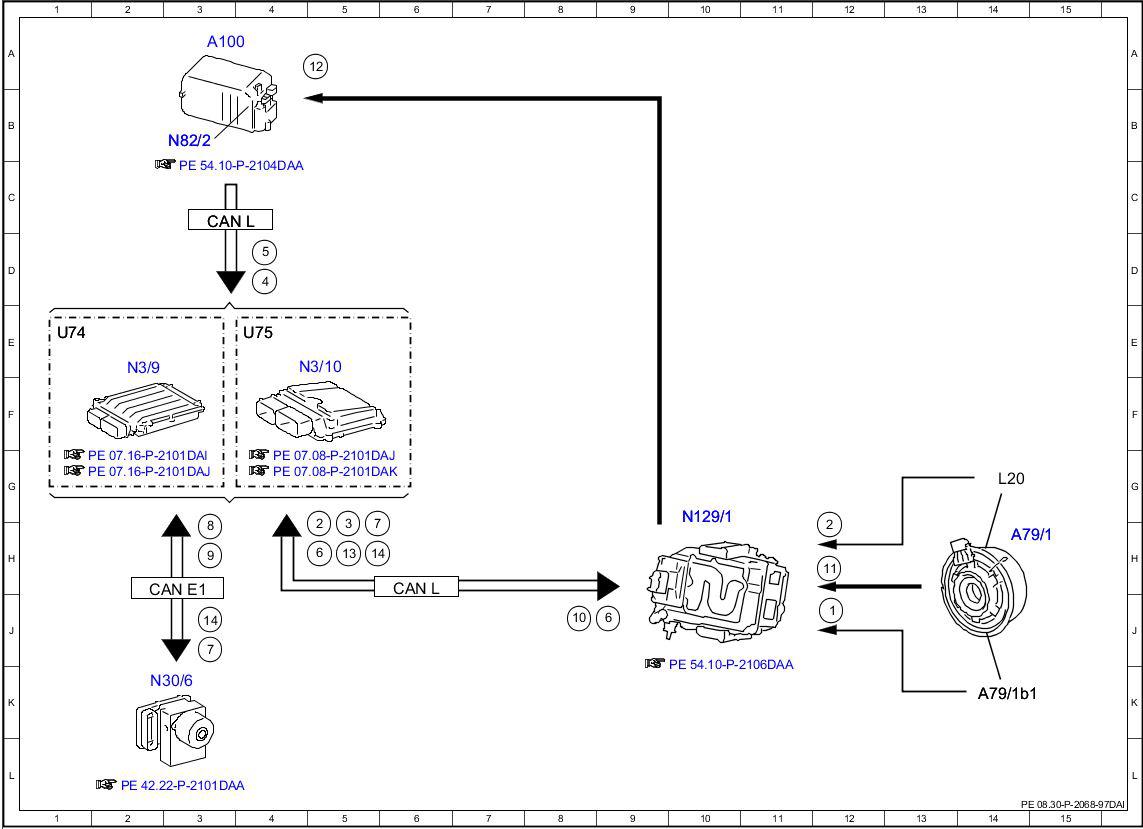

Electrical function schematic for regenerative braking - PE08.30-P-2068-97DAI
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE 276.952 in MODEL 212.095 as of model year 2014
ENGINE 651.924 in MODEL 212.098/298 as of model year 2014
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Electric machine temperature, signal | 12J |
| 10 | Electric machine specified torque, request | 8J |
| 11 | Charging current from alternator operation, energy flow | 12H |
| 12 | Charging current, energy flow | 5A |
| 13 | Charging voltage and charging current, signal | 5H |
| 14 | Generated regenerative braking torque, signal | 5H |
| 14 | Generated regenerative braking torque, signal | 3J |
| 2 | Electric machine rpm, signal | 4H |
| 2 | Electric machine rpm, signal | 12H |
| 3 | Electric machine, status | 5H |
| 4 | High-voltage battery voltage, signal | 4D |
| 5 | High-voltage battery temperature, signal | 4D |
| 6 | Tolerable charging voltage/current, signal | 5H |
| 6 | Tolerable charging voltage/current, signal | 9J |
| 7 | Available regenerative braking torque, signal | 3J |
| 7 | Available regenerative braking torque, signal | 5H |
| 8 | Regenerative braking torque, request | 3H |
| 9 | Wheel speed, signal | 3H |
| A100 | High-voltage battery module | 3A |
| A79/1 | Electric machine | 14H |
| A79/1b1 | Electric machine temperature sensor | 14K |
| CAN E1 | Chassis CAN 1 | 3J |
| CAN L | Hybrid CAN | 6H |
| CAN L | Hybrid CAN | 4C |
| L20 | Electric machine rotor position sensor | 14G |
| N129/1 | Power electronics control unit | 10G |
| N3/10 | ME-SFI [ME] control unit | 5E |
| N3/9 | CDI control unit | 3E |
| N30/6 | Regenerative braking system control unit | 3K |
| N82/2 | Battery management system control unit | 3B |
| U74 | Valid for diesel engines | 1E |
| U75 | Valid for gasoline engines | 4E |
