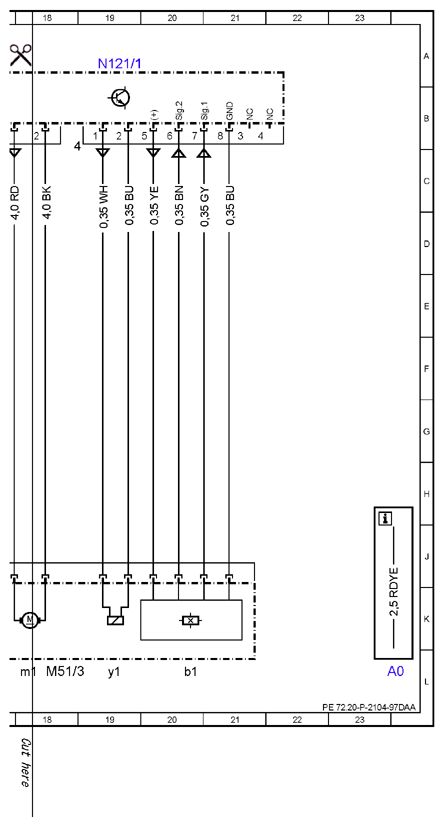

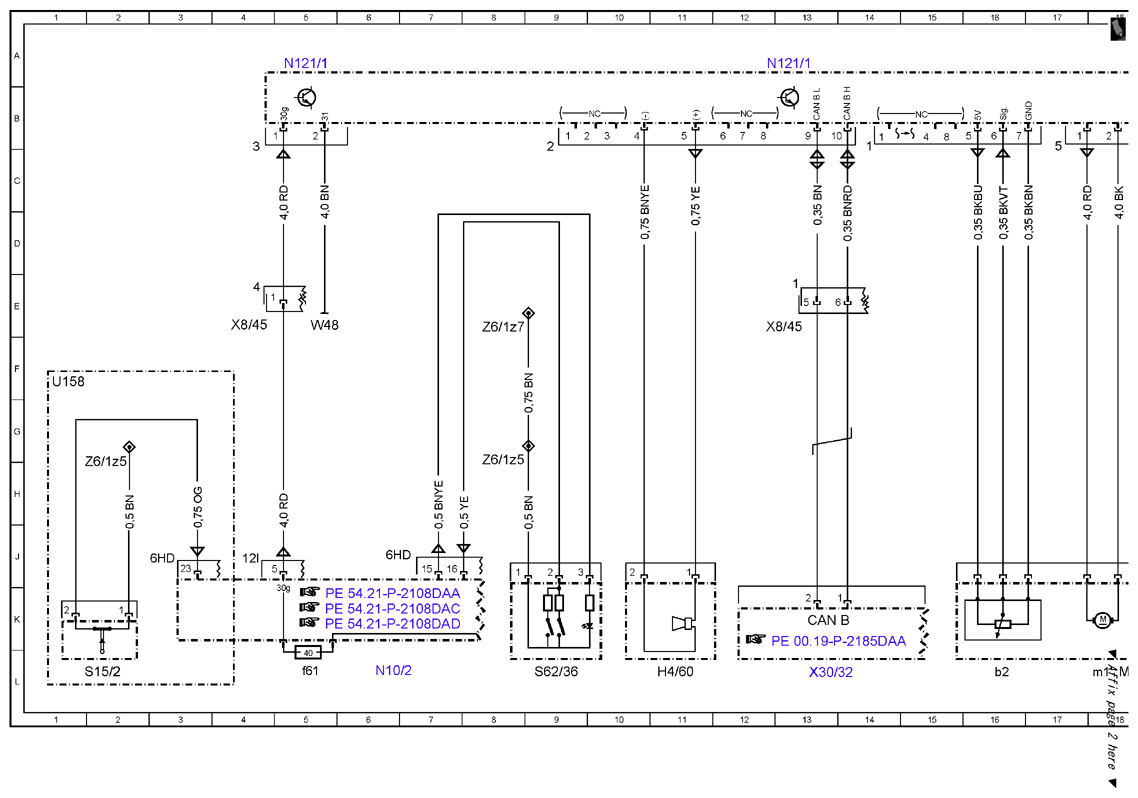

Wiring diagram for liftgate control unit - PE72.20-P-2104-97DAA
WARNING: This page does not describe the selected car, but rather 33 other vehicles, including the 2016 Mercedes-Benz E63 S AMG, 2016 Mercedes-Benz E400, 2016 Mercedes-Benz E350, 2016 Mercedes-Benz E300, and 2016 Mercedes-Benz E250. However, it is still accessible from the selected car via links, so may be relevant.
MODEL 212.2 Control unit N121/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 24L |
| CAN B | Interior CAN | 13K |
| H4/60 | Tailgate control warning buzzer | 11L |
| M51/3 | Tailgate control drive unit | 18L |
| M51/3b1 | Tailgate control Hall sensor | 20L |
| M51/3b2 | Tailgate control position sensor | 16L |
| M51/3m1 | Tailgate control electric motor | 18L |
| M51/3y1 | Tailgate control magnetic clutch | 19L |
| N10/2 | Rear SAM control unit with fuse and relay module | 6L |
| N10/2f61 | Fuse 61 | 5L |
| N121/1 | Tailgate control unit | 13A |
| N121/1 | Tailgate control unit | 5A |
| N121/1 | Tailgate control unit | 19A |
| S15/2 | Inside liftgate handle flap switch | 2L |
| S62/36 | Tailgate control button | 9L |
| U158 | Valid for folding bench seat in load area | 1F |
| W48 | Left rear roof frame ground point | 5E |
| X30/32 | Left vehicle floor interior CAN voltage distributor electrical connector | 13L |
| X8/45 | Left vehicle interior and tailgate electrical connector | 4E |
| X8/45 | Left vehicle interior and tailgate electrical connector | 13E |
| Z6/1z5 | Circuit 31 connector sleeve | 2H |
| Z6/1z5 | Circuit 31 connector sleeve | 8H |
| Z6/1z7 | Circuit 31 connector sleeve | 8E |
