Wiring diagram for Start/Stop engine - PE15.00-P-2103-97XAA

Code: Designation: Position:
A0 Color code key 64L
B95 Battery sensor 42L
Code 423 5-speed automatic transmission 49A
Code 427 7-speed automatic transmission 49A
F32 Front electrical prefuse box 3L
F32 Front electrical prefuse box 31L
F32f157 Prefuse 157 1K
F32f162 Prefuse 162 2K
F63 Pyrofuse 38L
F96 Additional battery circuit 30 fuse 20G
F97 Rear SAM control unit with fuse and relay module circuit 30 fuse 26G
G1 On-board electrical system battery 40L
G1/13 ECO start/stop function additional battery 19L
K114 ECO start/stop function additional battery relay 23L
N10/1 Front SAM control unit with fuse and relay module 4A
N10/1 Front SAM control unit with fuse and relay module 12A
N10/1 Front SAM control unit with fuse and relay module 20A
N10/1 Front SAM control unit with fuse and relay module 28A
N10/1 Front SAM control unit with fuse and relay module 36A
N10/1 Front SAM control unit with fuse and relay module 44A
N10/1 Front SAM control unit with fuse and relay module 52A
N10/1 Front SAM control unit with fuse and relay module 58A
N10/1f18 Fuse 18 51A
N10/1kQ Backup relay 54A
N10/2 Rear SAM control unit with fuse and relay module 27L
N10/2 Rear SAM control unit with fuse and relay module 46L
N10/2 Rear SAM control unit with fuse and relay module 52L
N2/10 Supplemental restraint system control unit 35L
N3/10 ME-SFI [ME] control unit 13L
N3/9 CDI control unit 17L
N89 Transmission oil auxiliary pump control unit 56L
U1018 Valid for gasoline engine 276 9G
U1018 Valid for gasoline engine 276 11G
U1019 Valid for gasoline engine 278 6H
U1019 Valid for gasoline engine 278 12G
U1028 Valid for engine 157 6G
U1028 Valid for engine 157 12F
U880 Valid for diesel engine 642 6G
U880 Valid for diesel engine 642 15F
U948 Valid for diesel engine 651 9G
U948 Valid for diesel engine 651 15G
V19 ECO start/stop function diode 30K
W10 Right front battery ground point 23G
W10 Right front battery ground point 41G
W2 Right front ground point at lamp unit 29H
W7/6 Rear additional battery ground point 19G
X221 ECO start/stop function circuit 30 cable connector 33G
X25/2 Engine compartment/interior electrical connector 13H
X4/37 Terminal block (circuit 30) 24G
X83/11 Circuit 56 exterior lights switch electrical connector 52G
Z6/97 Right lamp unit circuit 31 connector sleeve 28G

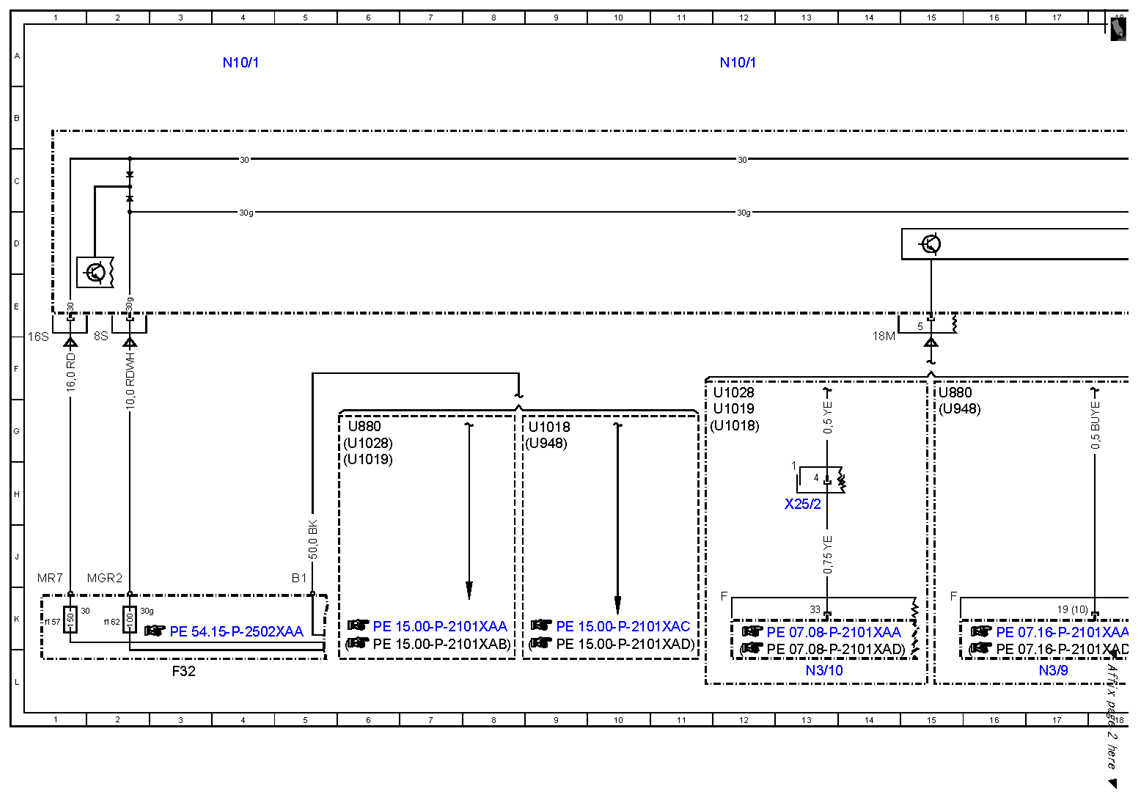

Fig 1: Start/Stop Engine - Wiring Diagram (1 Of 4)
G10083526Courtesy of MERCEDES-BENZ USA

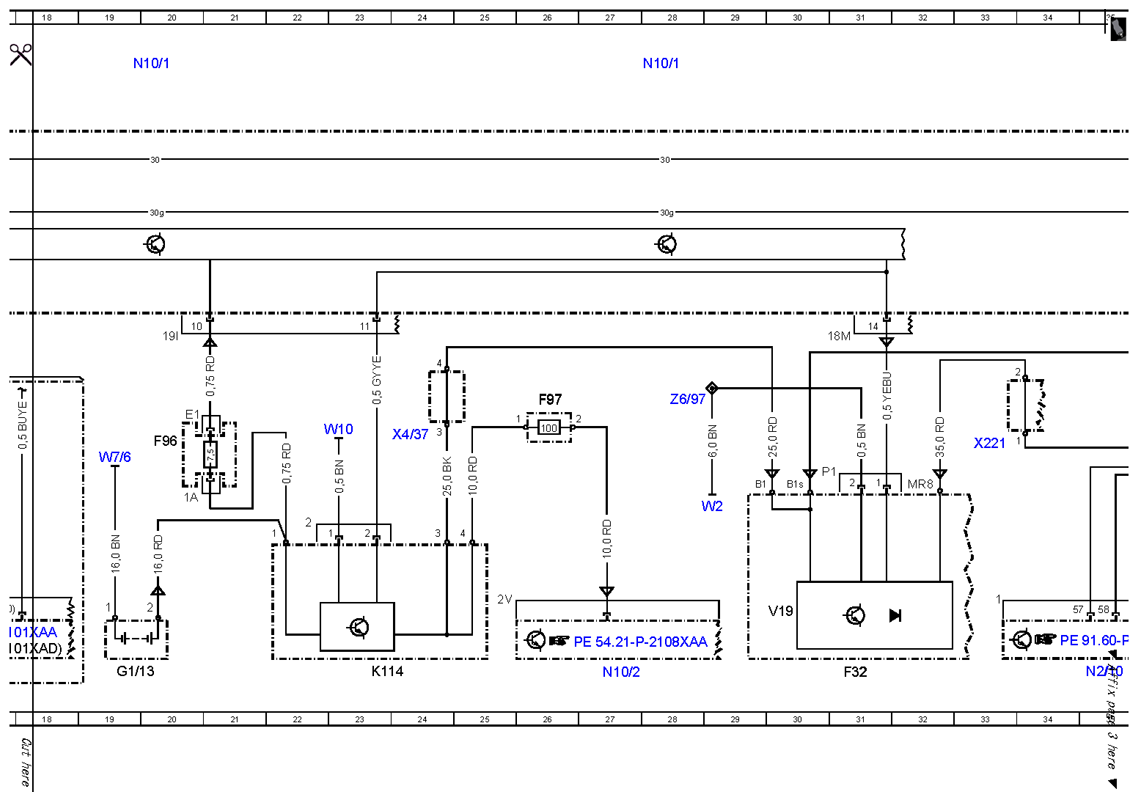

Fig 2: Start/Stop Engine - Wiring Diagram (2 Of 4)
G10083527Courtesy of MERCEDES-BENZ USA
Fig 3: Start/Stop Engine - Wiring Diagram (3 Of 4)
G10083528Courtesy of MERCEDES-BENZ USA

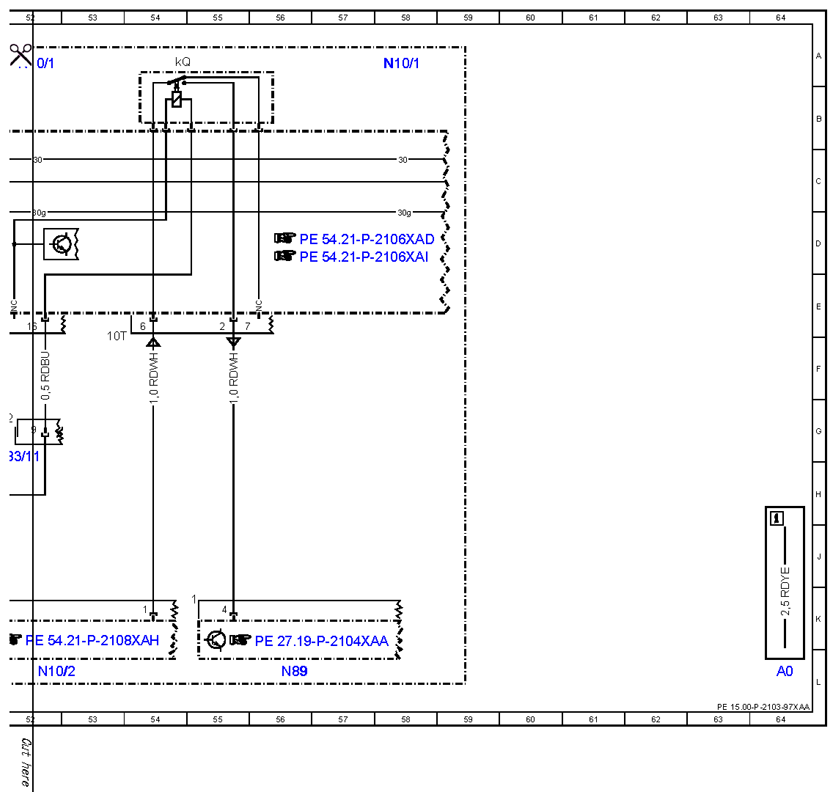

Fig 4: Start/Stop Engine - Wiring Diagram (4 Of 4)
G10083529Courtesy of MERCEDES-BENZ USA
