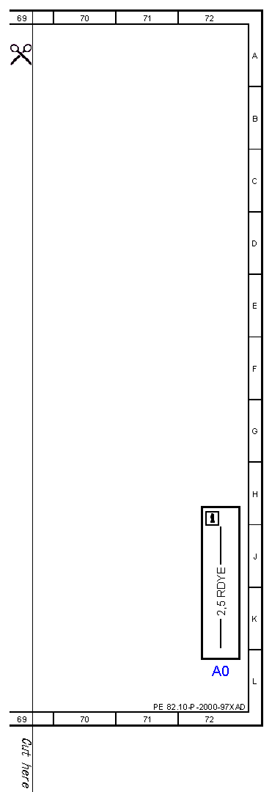

| A0 |
Color code key |
72L |
| B22/8 |
Left front level sensor |
32L |
| Code 460 |
Canada version |
20A |
| Code 494 |
USA version |
20A |
| Code 494 |
USA version |
41H |

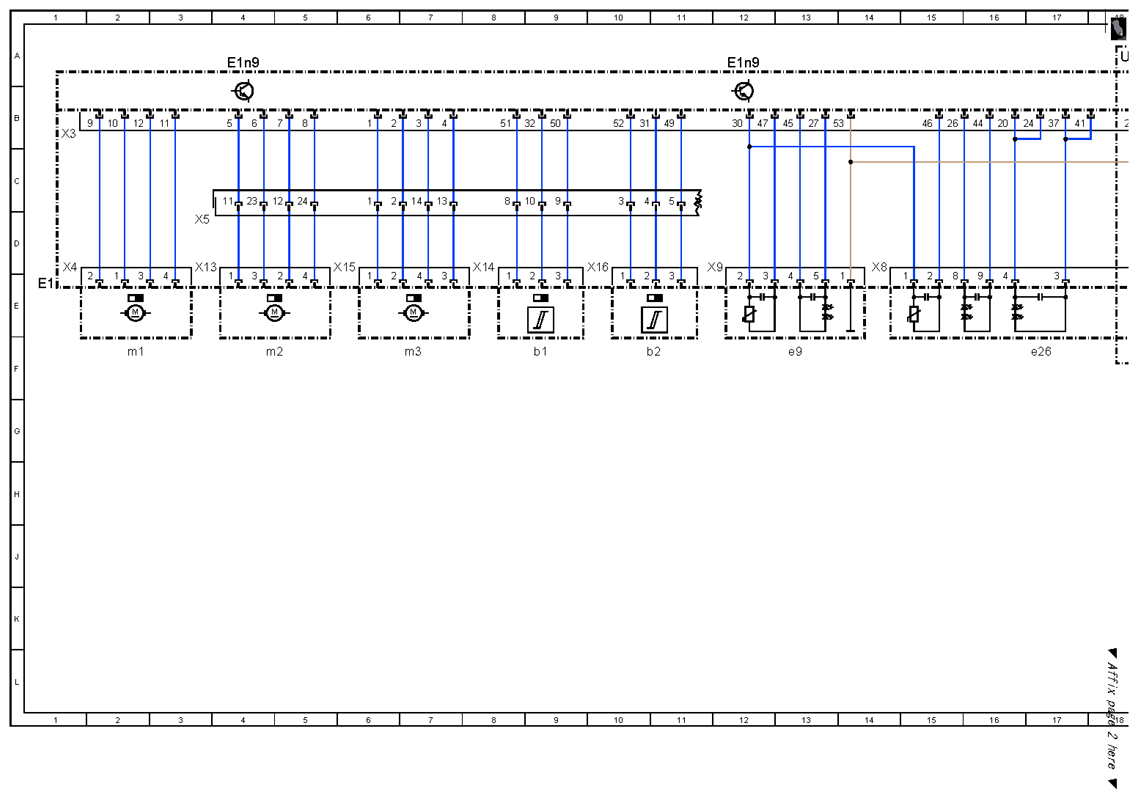

| E1 |
Left front lamp unit |
1E |
| E1b1 |
Left active curve illumination position sensor |
9F |
| E1b2 |
Left light distribution position sensor |
11F |
| E1e15 |
Left low beam (short range) |
53F |
| E1e16 |
Left low beam (long range) |
48F |

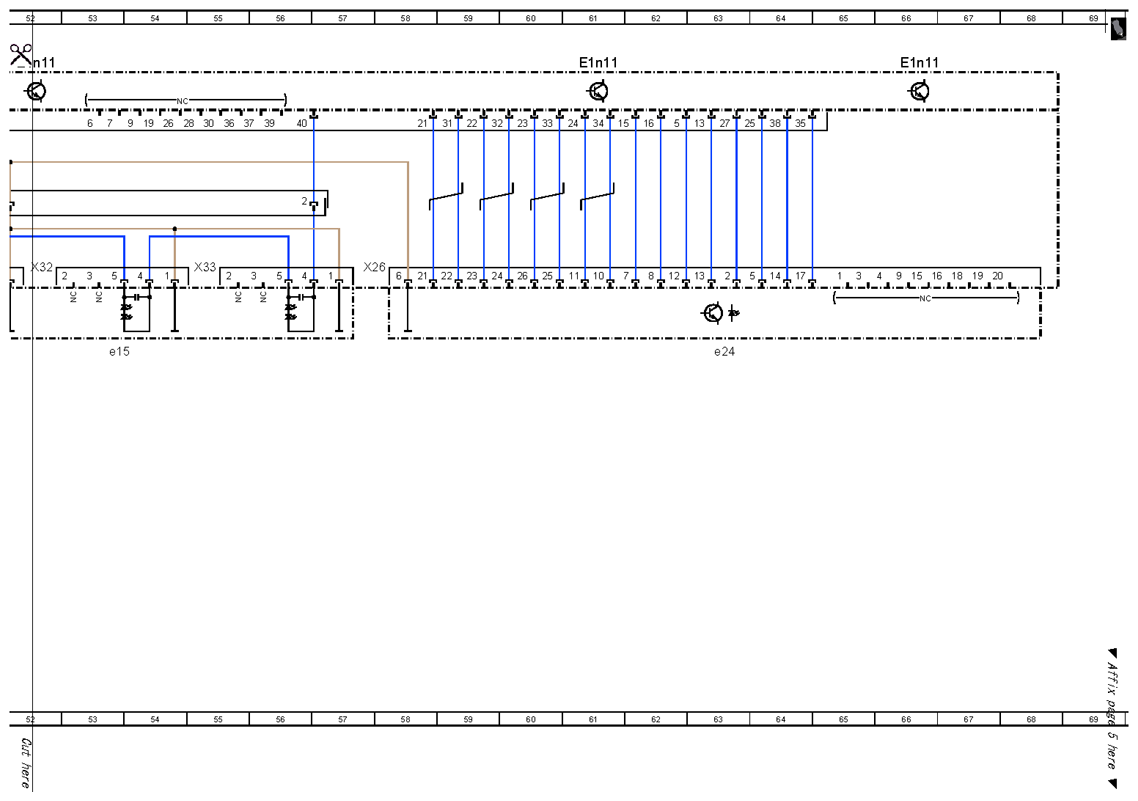

| E1e24 |
Left front adaptive high beam |
63F |
| E1e26 |
Left position light, daytime running light, turn signal light and ambient light |
17F |
| E1e6 |
Left front side-marker lamp |
21F |
| E1e9 |
Left cornering illumination |
13F |
| E1m1 |
Left headlamp range adjustment actuator motor |
2F |
| E1m2 |
Left active curve illumination actuator motor |
4F |
| E1m3 |
Left light distribution actuator motor |
7F |
| E1m4 |
Left LED signaling lights actuation module fan motor |
46F |
| E1n11 |
Left front LED matrix lamp unit control unit |
44A |
| E1n11 |
Left front LED matrix lamp unit control unit |
52A |
| E1n11 |
Left front LED matrix lamp unit control unit |
61A |
| E1n11 |
Left front LED matrix lamp unit control unit |
66A |
| E1n9 |
Left headlamp control unit |
4A |
| E1n9 |
Left headlamp control unit |
12A |
| E1n9 |
Left headlamp control unit |
19A |
| E1n9 |
Left headlamp control unit |
26A |
| E1n9 |
Left headlamp control unit |
36A |

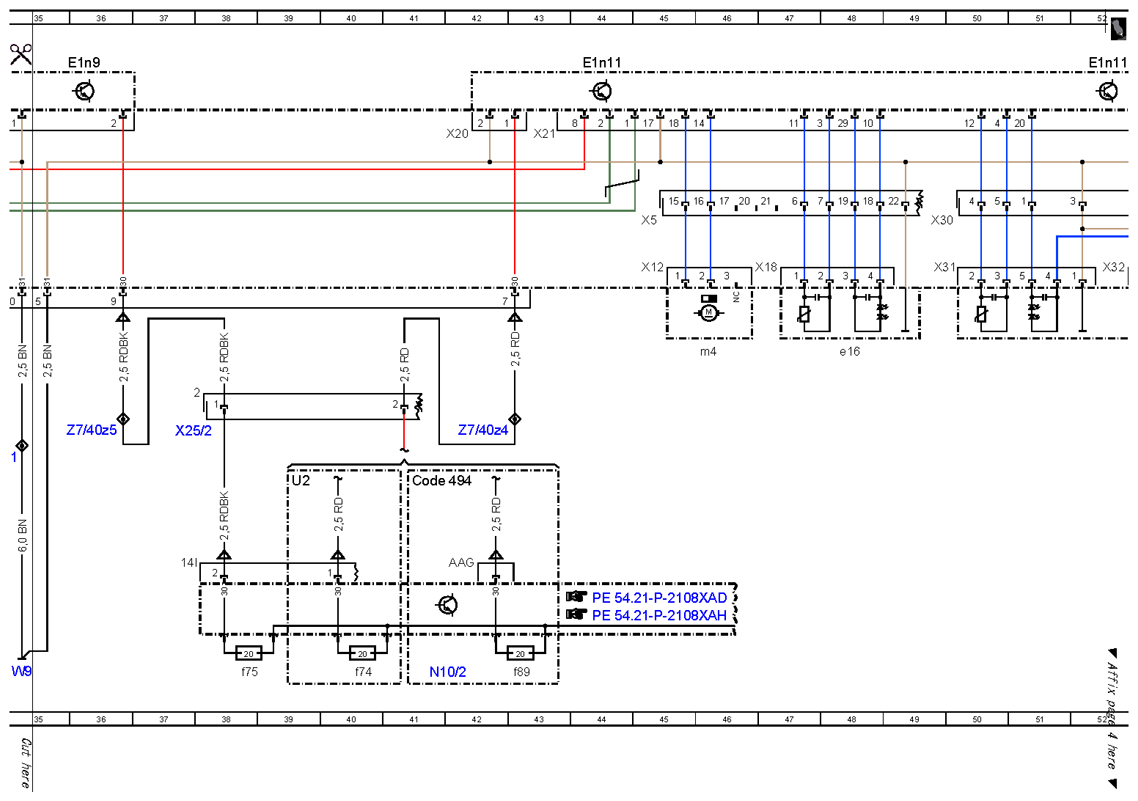

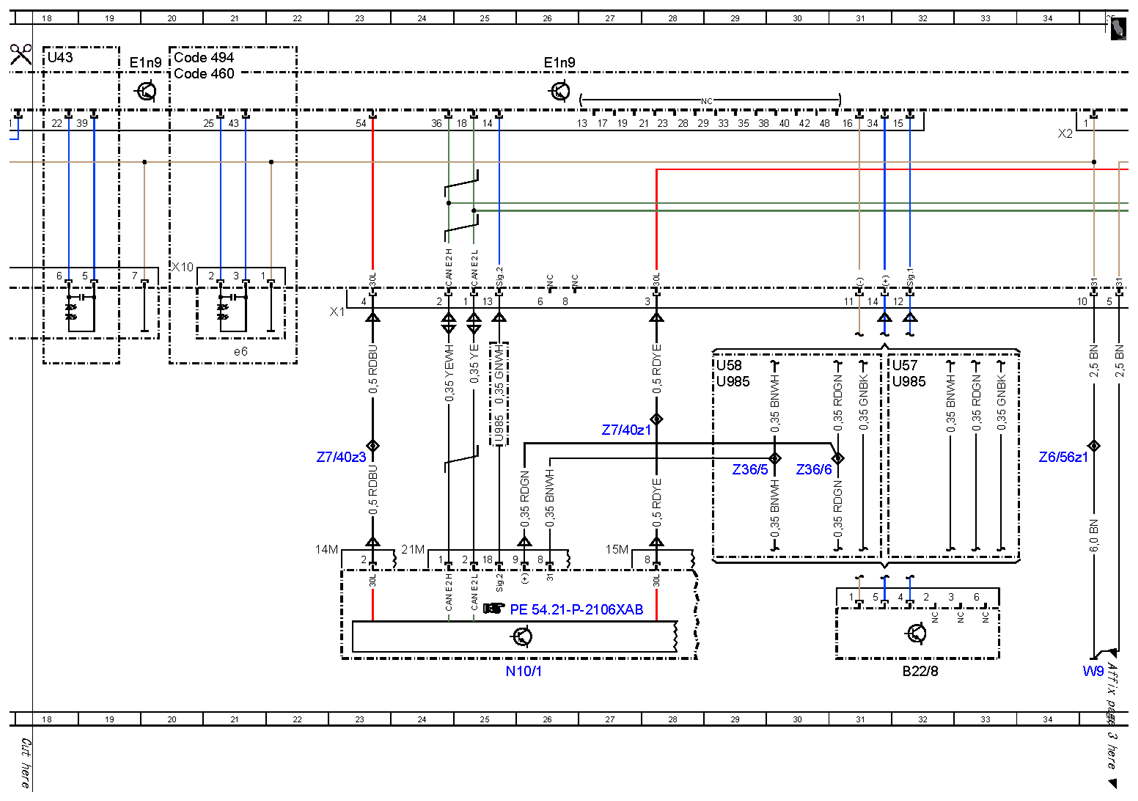

| N10/1 |
Front SAM control unit with fuse and relay module |
25L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
41L |
| N10/2f74 |
Fuse 74 |
40L |
| N10/2f75 |
Fuse 75 |
38L |
| N10/2f89 |
Fuse 89 |
43L |
| U2 |
Valid for all except USA |
39H |
| U43 |
Valid for ECE |
18A |
| U57 |
Valid for model 218.9 |
32F |
| U58 |
Valid for model 218.3 |
29F |
| U985 |
Not valid for AIRMATIC |
29F |
| U985 |
Not valid for AIRMATIC |
25G |
| U985 |
Not valid for AIRMATIC |
32F |
| W9 |
Left front ground point (at lamp unit) |
35L |
| X25/2 |
Engine compartment/interior electrical connector |
37G |
| Z36/5 |
Headlamp range adjustment sensor ground connector sleeve |
29H |
| Z36/6 |
Sensor voltage supply connector sleeve |
30H |
| Z6/56z1 |
Circuit 31 connector sleeve |
34G |
| Z7/40z1 |
Tml. 30 connector sleeve |
27G |
| Z7/40z3 |
Tml. 30 connector sleeve |
23G |
| Z7/40z4 |
Tml. 30 connector sleeve |
42G |
| Z7/40z5 |
Tml. 30 connector sleeve |
36G |
