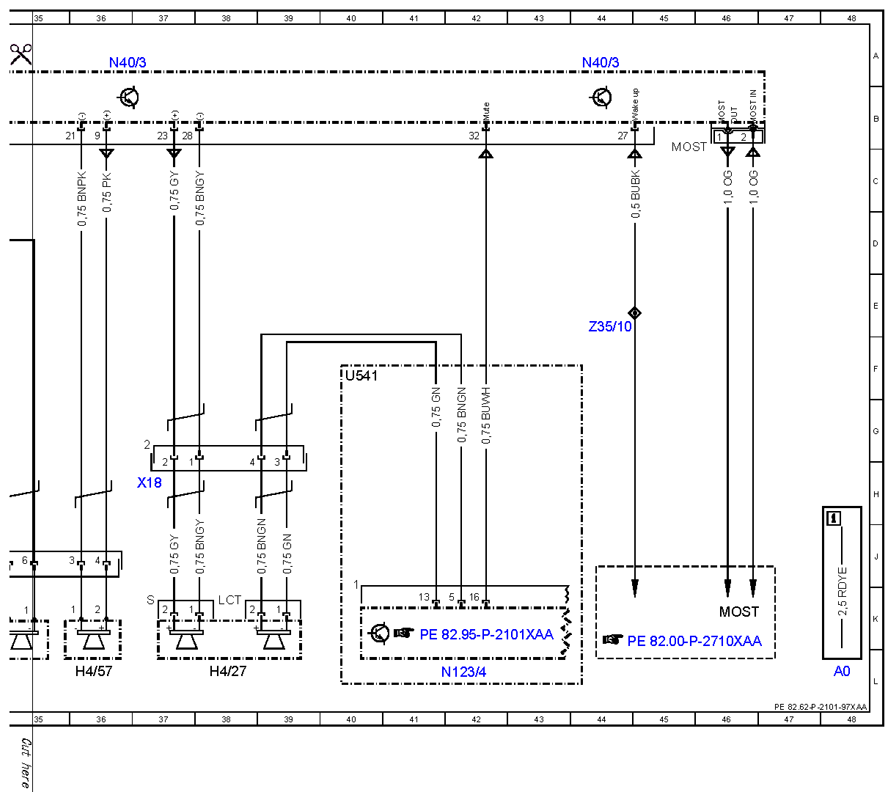

| A0 |
Color code key |
48L |

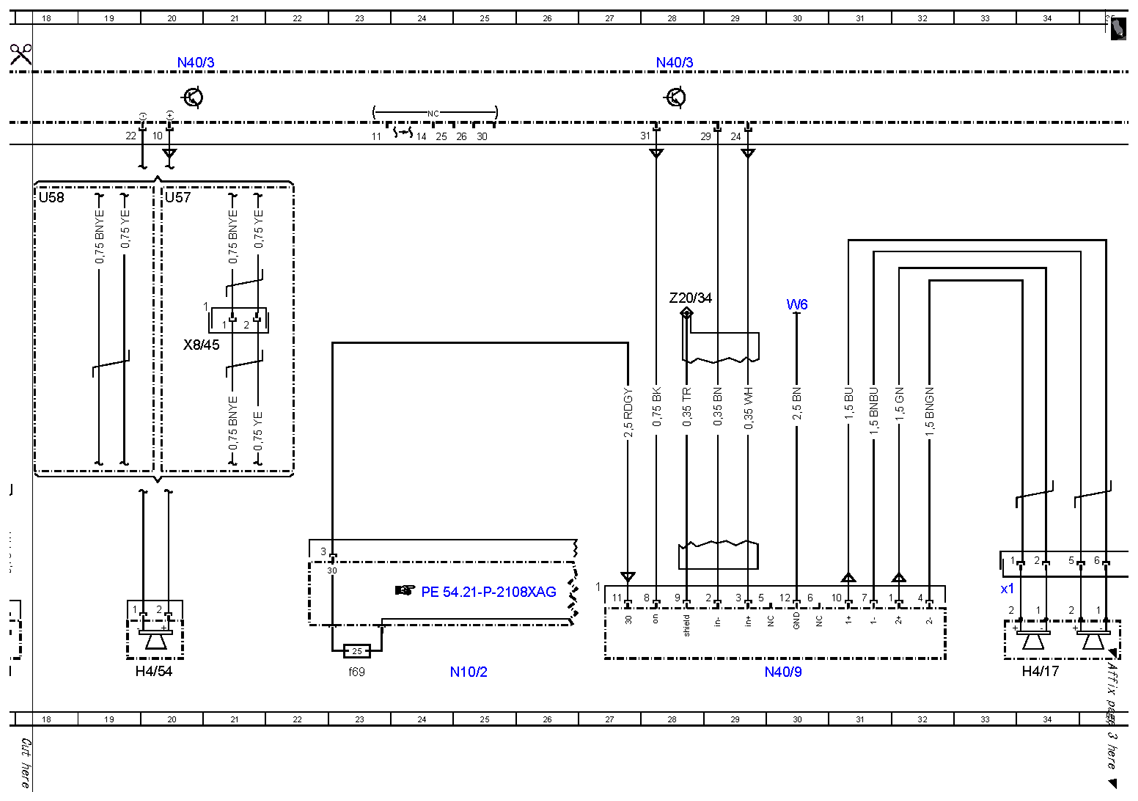

| H4/17 |
Bass speaker |
34L |
| H4/17x1 |
Bass speaker electrical connector |
33K |
| H4/27 |
Center instrument panel speaker |
38L |
| H4/54 |
Left rear surround speaker |
20L |
| H4/57 |
Right rear surround speaker |
36L |

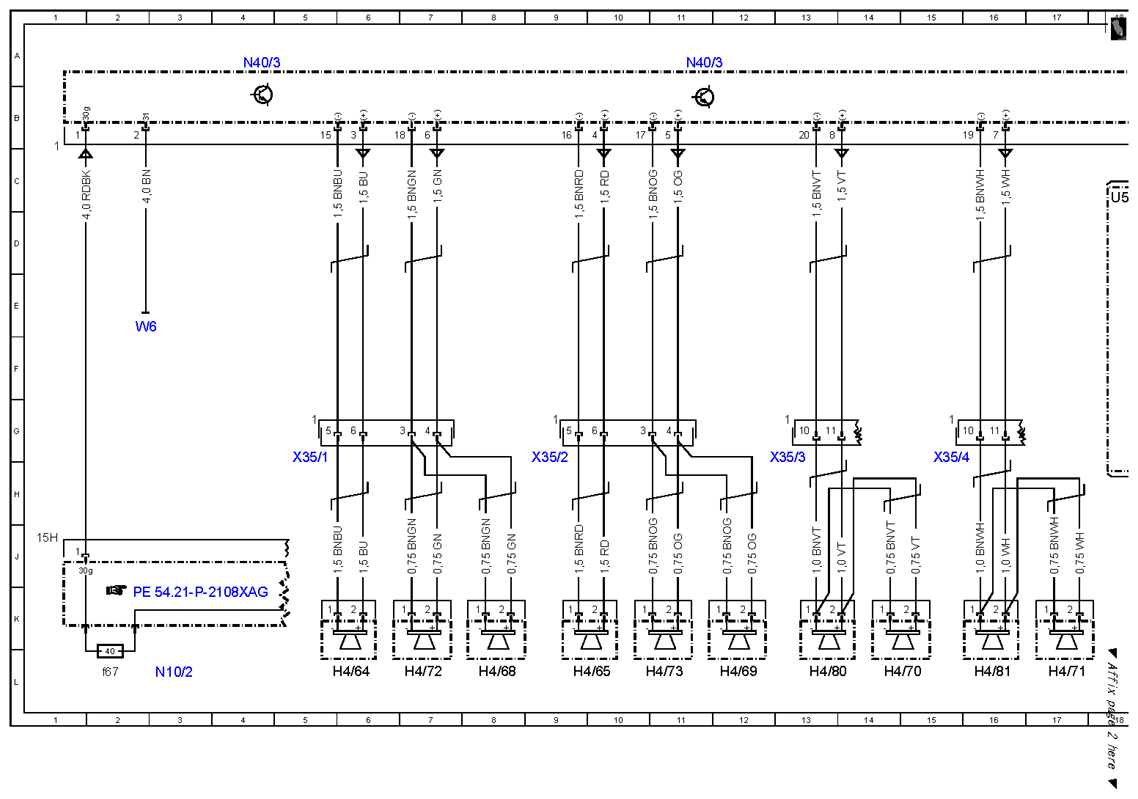

| H4/64 |
Left front door sound system bass speaker |
6L |
| H4/65 |
Right front door sound system bass speaker |
9L |
| H4/68 |
Left front door sound system tweeter |
8L |
| H4/69 |
Right front door sound system tweeter |
12L |
| H4/70 |
Left rear door sound system tweeter |
14L |
| H4/71 |
Right rear door sound system tweeter |
17L |
| H4/72 |
Left front door sound system midrange speaker |
7L |
| H4/73 |
Right front door sound system midrange speaker |
11L |
| H4/80 |
Left rear door sound system midrange speaker |
13L |
| H4/81 |
Right rear door sound system midrange speaker |
16L |
| MOST |
Media Oriented System Transport |
46K |
| MOST |
Media Oriented System Transport |
45C |
| N10/2 |
Rear SAM control unit with fuse and relay module |
3L |
| N10/2 |
Rear SAM control unit with fuse and relay module |
25L |
| N10/2f67 |
Fuse 67 |
N/A |
| N10/2f69 |
Fuse 69 |
N/A |
| N123/4 |
Emergency call system control unit |
42L |
| N40/3 |
Sound system amplifier control unit |
4A |
| N40/3 |
Sound system amplifier control unit |
11A |
| N40/3 |
Sound system amplifier control unit |
20A |
| N40/3 |
Sound system amplifier control unit |
28A |
| N40/3 |
Sound system amplifier control unit |
36A |
| N40/3 |
Sound system amplifier control unit |
44A |
| N40/9 |
Rear bass speaker amplifier |
30L |
| U541 |
Valid for TELEAID emergency call system |
40F |
| U57 |
Valid for model 218.9 |
20C |
| U58 |
Valid for model 218.3 |
18C |
| W6 |
Left rear wheel well ground point |
2E |
| W6 |
Left rear wheel well ground point |
30E |
| X18 |
Vehicle interior and harness for taillamp electrical connector |
37H |
| X35/1 |
Left front door electrical connector |
5H |
| X35/2 |
Right front door electrical connector |
9H |
| X35/3 |
Left rear door electrical connector |
13H |
| X35/4 |
Right rear door electrical connector |
15H |
| X8/45 |
Left vehicle interior and trunk lid/liftgate electrical connector |
20F |
| Z20/34 |
Tracer wire connector sleeve |
28E |
| Z35/10 |
MOST wake-up signal connector sleeve |
44E |
