Carry out distance and comparison measurements on front and rear axles - AR40.30-P-0402SX

MODEL 216, 221.0 /1

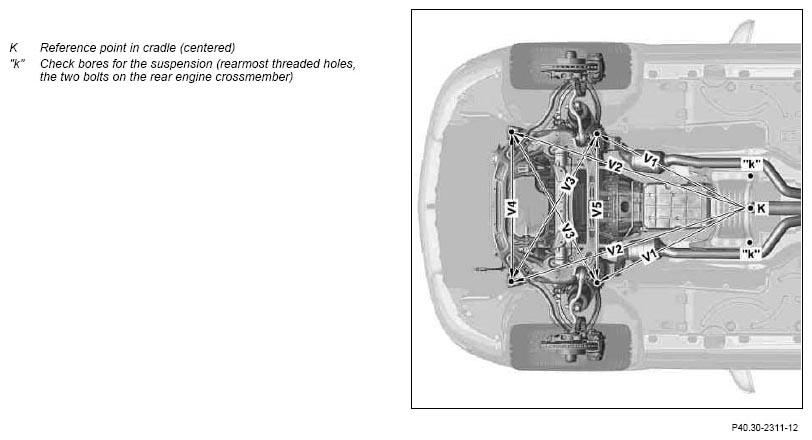

Front axle, shown on model 221

Fig 1: Identifying Measuring Distance Of Front Axle (Shown On Model 221)

Courtesy of MERCEDES-BENZ USA

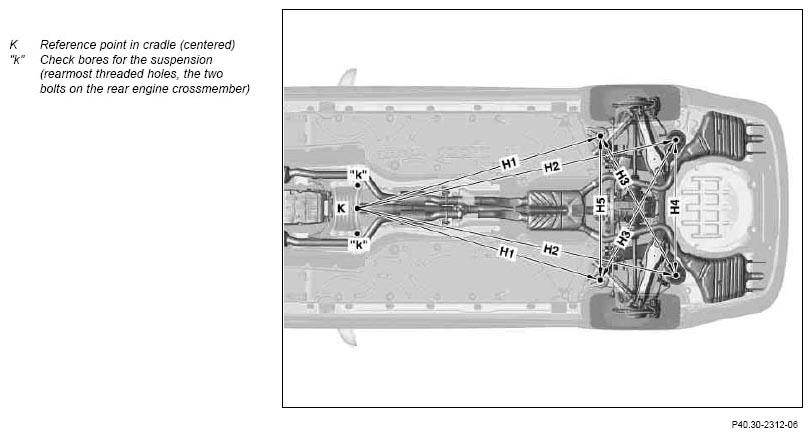

Rear axle, shown on model 221

Fig 2: Identifying Measuring Distance Of Rear Axle (Shown On Model 221)

Courtesy of MERCEDES-BENZ USA

MODIFICATION NOTES

18.9.08

Value changed: dimension, V2

*BE40.30-P-1001-06I

	Measure
1	Perform preparations for distance and comparative measurements		AR40.30-P-0401SX
2.1	Carry out distance measurement on front axle	For front end damage	AR40.30-P-0402-01SX
		Test specifications for distance measurement of front axle	*BE40.30-P-1001-06I
			*170589006300
			*124589086300
			*124589011900
			*124589021900
		Depending on the accident damage, further individual measuring points can be defined for a comparative measurement.	*168589076300
2.2	Carry out distance measurement on rear axle	For rear end damage	AR40.30-P-0402-02SX
		Test specifications for distance measurement of rear axle	*BE40.30-P-1001-05H
			*170589006300
			*124589086300
			*124589021900
		Depending on the accident damage, further individual measuring points can be defined for a comparative measurement.	*168589076300

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENTS ON REAR AXLE

Number	Designation			Model 216 except 4MATIC	Model 216 with 4MATIC
BE40.30-P-1001-05H	Dimension	H1	mm	1765 (± 2)	1769 (± 2)
		H2	mm	2311 (± 2)	2314 (± 2)
		H3	mm	1208 (± 2)	1208 (± 2)
		H4	mm	1026 (± 2)	1026 (± 2)
		H5	mm	1096 (± 2)	1096 (± 2)
		See picture		AR40.30-P-0402-02SX	AR40.30-P-0402-02S X

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENTS ON REAR AXLE

Number	Designation			Type 221.0	Type 221.1
BE40.30-P-1001-05H	Dimension	H1	mm	1839 (± 2)	1964 (± 2)
		H2	mm	2399 (± 2)	2522 (± 2)
		H3	mm	1208 (± 2)	1208 (± 2)
		H4	mm	1026 (± 2)	1026 (± 2)
		H5	mm	1096 (± 2)	1096 (± 2)
		See picture		AR40.30-P-0402-02SX	AR40.30-P-0402-02S X

TEST VALUES FOR DISTANCE AND COMPARISON MEASUREMENT ON FRONT AXLE

Number	Designation			Model 216, 221
BE40.30-P-1001-06I	Dimension	V1	mm	977 (± 2)
		V2	mm	1438 (± 2)
		V3	mm	973 (± 2)
		V4	mm	854 (± 2)
		V5	mm	830 (± 2)
		See picture		AR40.30-P-0402-01S X

Fig 3: Identifying Telescopic Measuring Rod (124 589 01 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Telescopic Measuring Rod (124 589 02 19 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Mount (170 589 00 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Set Of Measurement Fixtures (168 589 07 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 7: Identifying Connecting Pieces (124 589 08 63 00)

Courtesy of MERCEDES-BENZ USA
