Remove/install overpressure reservoir for dynamic seat control - AR91.25-P-1570SX
MODEL 216, 221.0/1
with CODE (409) Left/right front multicontour seats
with CODE (432) Left and right dynamic multicontour seat
Shown on vehicle with code (406) Rear multicontour seats

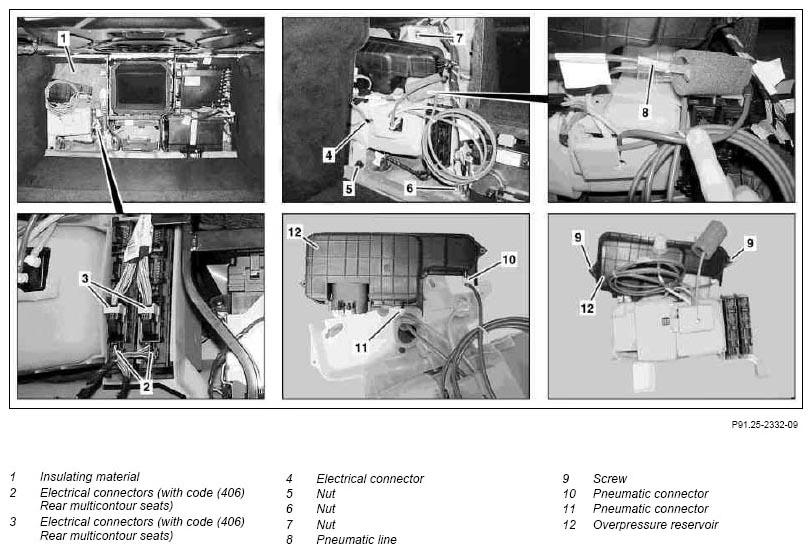

Fig 1: Identifying Dynamic Seat Control Overpressure Reservoir Remove/Install Components - Shown On Vehicle With Code (406)
| Remove/install | |||
| 1 | Remove rear shelf reinforcement | Only on model 221. | AR64.10-P-1200SX |
| 2 | Switch off ignition and remove transmitter key or Keyless-Go start/stop button from EZS control unit | ||
| 3 | Remove insulating material (1) and unscrew nuts (5, 6, 7) | ||
| 4 | Disconnect electrical connectors (2, 3) | On vehicles with code (406) Rear multicontour seats. | |
| 5 | Disconnect electrical connector (4) and pneumatic line (8) | ||
| 6 | Remove overpressure reservoir (12) with bracket out of vehicle and detach from bracket | ||
| 7 | Install in the reverse order |
