Reversing camera (RFK), location of components - GF54.65-P-0005-01LAJ - 2 Of 3

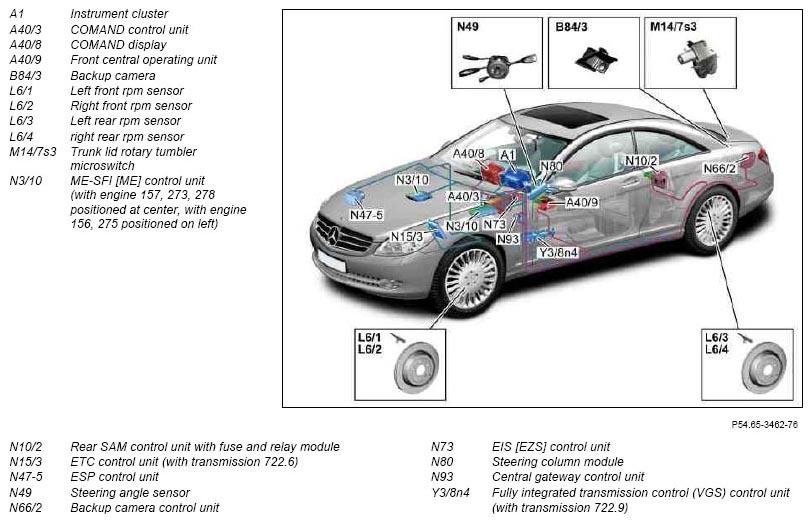

Fig 1: Identifying Reversing Camera (RFK) Components Location

G07509322

Courtesy of MERCEDES-BENZ USA
