Reversing camera (RFK), block diagram - GF54.65-P-0005-02LE

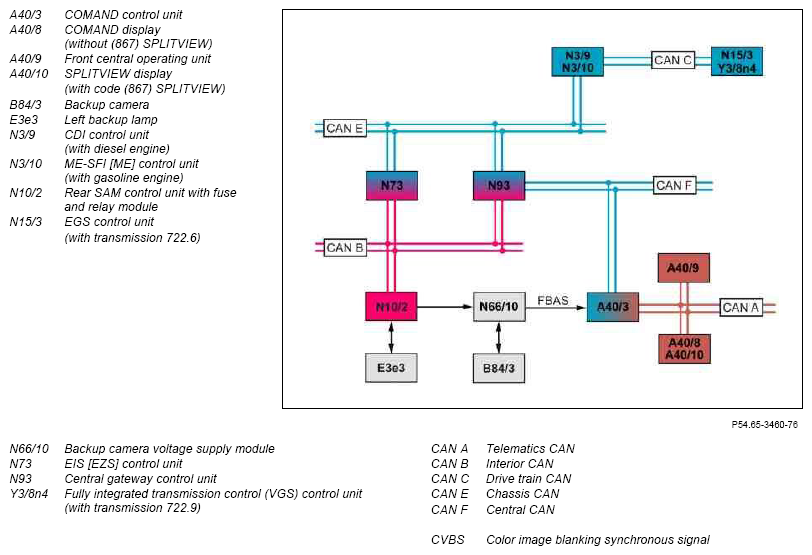

Fig 1: Reversing Camera (RFK) Block Diagram

G07509324

Courtesy of MERCEDES-BENZ USA
