Parktronic system (PTS), block diagram - GF54.65-P-0001-01SX

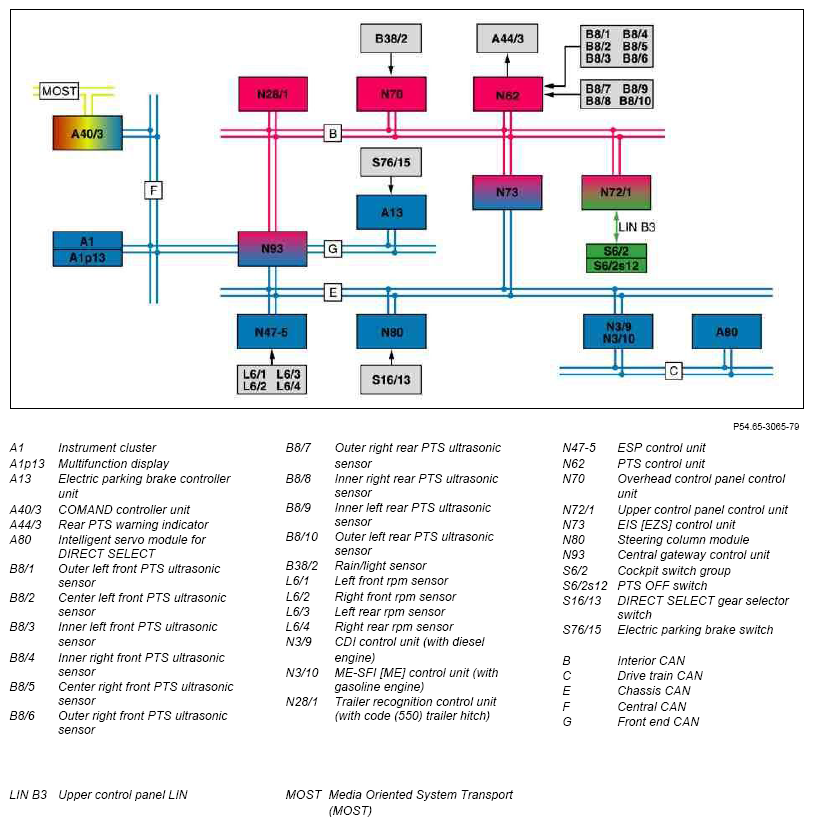

Fig 1: Parktronic System (PTS) Block Diagram

G07509315

Courtesy of MERCEDES-BENZ USA
